19x95mm SS 304 Fire Rating Spring Heavy Duty Concealed Hinges 180 Degree Hidden Hinge

Self Close Fire rating Invisible Spring Hinge ​introduction:

This Spring Closer medium duty Invisible hinge is completely concealed when the door is closed.

This model CG008 is not adjustable on spring force, but it can be located on 90°.

when open less than 90 degree, the door will self closing back, when open more than 90°, the door will self open to 180°.

Made from high strength casting SUS 304.

Beautiful when open...Invisible when closed. Soss Mortise Mount Invisible hinges for designed to provide security, strength and safety.

Minimum Door Thickness: 30mm

Key Features: Invisible from either side when closed, Moving pivot point remains inside hinge during travel, Deep mortise of hinge assures a strong installation

Invisible Spring Hinge Features:

• Aesthetics - The hinges are mounted directly into the door from the inside surface so when the door is closed, the hinge cannot be seen.
• Security - When the door is in the closed position, the hinge cannot be accessed or tampered. Even in the open position, the exposed riveted pin is not removable.
• Safety - The moving pivot point remains inside the hinge during travel until fully opened, eliminating an external pinch point on the back side of the door.
• Parallel Mounting - The unique mounting of these invisible hinges allow for almost unbroken surfaces between doors and frames to achieve a sleeker, more visually appealing look while door is open. It also consumes very little volume, leaving more room inside cramped cabinets.
• 180° Opening - Door swings completely around, allowing full unobstructed access to the cabinet contents.
• Spring Closing - Due to a sping insde, this hinge can be self closing when open degree less than 90, and self open when more than 90.
• 90° rebound - Due to the spring design, this hinge can be rebound by critical open degree 90°.
• JINKAILI Service - Same Day Shipment, ISO9002 Quality, Variety, Custom Items, Automation, there are many reasons to choose JINKAILI

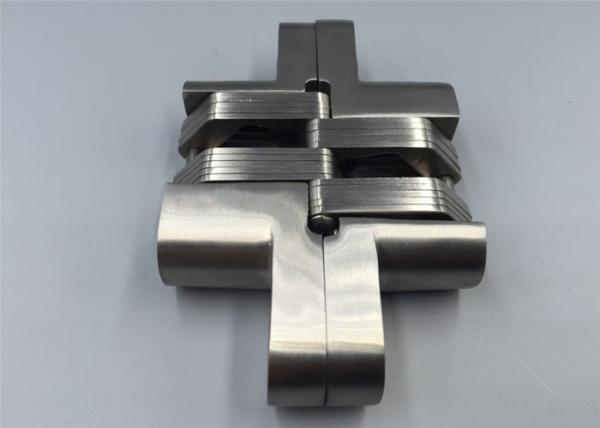

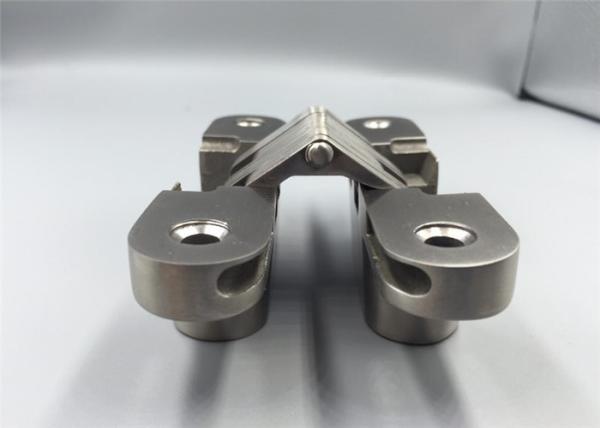

Real photos in Satin finish:
