145x28x4.0mm 180 Degree Concealed Door Hinge / Invisible Cabinet Hinges
145x28x4.0mm 180 Degree Concealed Door Hinge / Invisible Cabinet Hinges
145x28x4.0mm 180 Degree Concealed Door Hinge / Invisible Cabinet Hinges
145x28x4.0mm 180 Degree Concealed Door Hinge / Invisible Cabinet Hinges
Specifications
Brand Name :
JKL
Model Number :
CG009
Certification :
Fire-rating,SGS,CNAS
Place of Origin :
Jiangmen, Guangdong
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
100000 PCS/Month
Delivery Time :
Within 30 days
Packaging Details :
2 pcs/inner box, 40 pcs/carton.
Name :
80 Degree Concealed Door Hinge
Item No. :
CG009
Size :
145x28x4.0mm
Material :
Casting SS 304
Surface Treatment :
Satin, Polished, AB, AC, PVD
Weight loading :
120 kgs/3 pcs
Open degree :
120°
Open&Close time :
200,000
Description

145x28x4.0mm 180 Degree Concealed Door Hinge / Invisible Cabinet Hinges

80 Degree Concealed Door Hinge Application

Interior or Exterior Doors

1-3/4" Minimum Door Thickness

Can be utilized in combination with standard SOSS Model 218 invisible hinges

80 Degree Concealed Door Hinge Finish

Specify US4, US15, US26D or US19 - We stock Satin Brass (US4/606E), Satin Nickel (US15/619E), Satin Chrome (US26D/626E) and Black (US19E/622E) for immediate shipment. Other finishes available via special order, call for availability and lead times.

80 Degree Concealed Door Hinge Installation method

The narrower side is installed on the door and the wider side is installed on the door frame. then the two machine-processed rice screws on the door side are to adjust the left-and-right direction. while the inner two cap head screws on the frame side are to adjust the up-and-down direction and the outer two cup head screws on the frame side are to adjust the front-and-back direction, that is also can be understood as the flatness degree.

Size(Width*Length*Gap) 145x28x4.0mm
Connecting arm Casting SS 304
Material Full of casting SS 304.
Surface finish Satin, Polished, AB, AC, Black, PVD
Weight bearing 120 kgs/3 pcs
Open degree 120°
Suitable for Wooden door, Swing door, Folding door, Heavy duty door.
Service life gurantee 5 years.
Advantages Stronger on the connecting arms, Invisible installation, Long time service life.

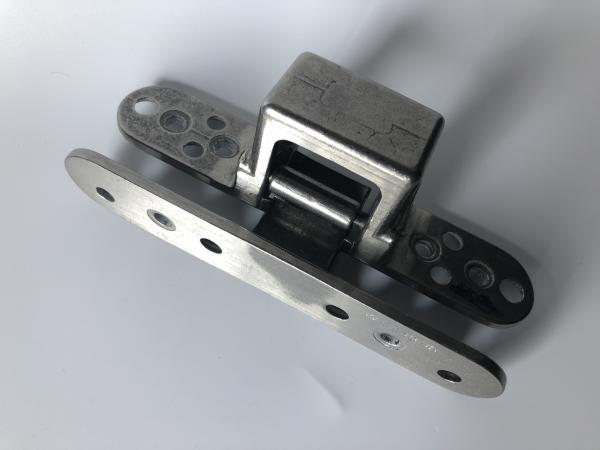

Real Photos

145x28x4.0mm 180 Degree Concealed Door Hinge / Invisible Cabinet Hinges

Product tags

cabinet hinges hidden

,

hidden cabinet hinges

,

cabinet door hinge 180
