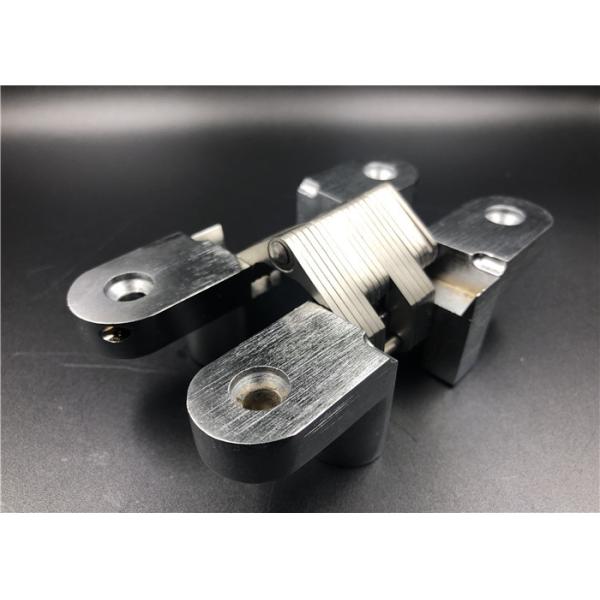

Self Closing SOSS Heavy Duty Concealed Hinges , Fully Concealed Hinges
Self Closing SOSS Heavy Duty Concealed Hinges , Fully Concealed Hinges
Self Closing SOSS Heavy Duty Concealed Hinges , Fully Concealed Hinges
Self Closing SOSS Heavy Duty Concealed Hinges , Fully Concealed Hinges
Self Closing SOSS Heavy Duty Concealed Hinges , Fully Concealed Hinges
Self Closing SOSS Heavy Duty Concealed Hinges , Fully Concealed Hinges
Self Closing SOSS Heavy Duty Concealed Hinges , Fully Concealed Hinges
Self Closing SOSS Heavy Duty Concealed Hinges , Fully Concealed Hinges
Self Closing SOSS Heavy Duty Concealed Hinges , Fully Concealed Hinges
Self Closing SOSS Heavy Duty Concealed Hinges , Fully Concealed Hinges
Specifications
Brand Name :
JKL or OEM
Model Number :
AG006
Certification :
SGS,CNAS,
Place of Origin :
Jiangmen, Guangdong
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
500,000 pcs/month
Delivery Time :
30 days.(A small amount of stock all the time)
Packaging Details :
2 pcs/inner white box, 100 pcs/carton, CTN Size: 34.5X17X10.5CM, G.W./CTN: 10 kgs
Name :
SOSS Heavy Duty Concealed Hinges
Advantages :
Self Closing
Weight loading :
20 kgs/3 pcs
Size :
13x60x9mm
Other Name :
Fully Concealed Hinges
Surface Finish :
Gold plated
Open degree :
180°
Country of origin :
Jiangmen, Guangdong, CHINA
Min door thickness :
20mm
Service life :
＞5 years
Description

Self Closing SOSS Heavy Duty Concealed Hinges , Fully Concealed Hinges

SOSS Heavy Duty Concealed Hinges Application

Interior or Exterior Doors

1-3/4" Minimum Door Thickness

Can be utilized in combination with standard SOSS Model 218 invisible hinges

SOSS Heavy Duty Concealed Hinges details:
1, Size(WxLxGap) 13x60x9mm.
2, Min door thickness 20mm.
3, Product Name Self Closing SOSS Heavy Duty Concealed Hinges , Fully Concealed Hinges
4, Available Finishes

Gold plated,Antique Copper, Satin Chrome, Satin Nickel, Antique Brass, PVD
5, Main usage Wardrobe door, Cabinet door, Flush door, Furniture door.
6, Residential&Commercial Usage Both available.
7, Weight loading 20 kgs/3 pcs.
8, Open degree 180°.
9, Distinguishing for left or right No.
10, Quality testing&certificate SGS, CNAS, MA, AL, Work Safety Standardization.
11, Advantages Drilling to be invisible installation,Concealed for a complete flush look, high sensory, durable and silent.


SOSS Heavy Duty Concealed Hinges Advantage:

  • Aesthetics - The invisible hinges are mounted directly into the door from the inside surface so when the door is closed, the hinge cannot be seen.
  • Security - When the door is in the closed position, the invisible hinge cannot be accessed or tampered. Even in the open position, the exposed riveted pin is not removable.
  • Safety - The moving pivot point remains inside the hinge during travel until fully opened, eliminating an external pinch point on the back side of the door.
  • Parallel Mounting - The unique mounting of these invisible hinges allow for almost unbroken surfaces between doors and frames to achieve a sleeker, more visually appealing look while door is open. It also consumes very little volume, leaving more room inside cramped cabinets.
  • JINKAILI Service - Same Day Shipment, ISO9002 Quality, Variety, Custom Items, Automation, there are many reasons to choose JINKAILI

Queations you may ask:
1, Samples' free or charged including the express cost?
Samples' cost less than USD 50.00 will not be charged, express cost on customer's side.
2, Factory area and number of employees?
5000 ㎡&100 workers
3, Delivery time for regular orders?
We always keep s small amount of stock(around 1000 pcs for each sizes), and for mass orders, certainly finish from 15 days up to 30 days.
4, Your capacity for one month?
Up to 500,000 pcs accoding to different sizes.

Real Photos in Gold plated color:

Self Closing SOSS Heavy Duty Concealed Hinges , Fully Concealed Hinges

Self Closing SOSS Heavy Duty Concealed Hinges , Fully Concealed Hinges

Self Closing SOSS Heavy Duty Concealed Hinges , Fully Concealed Hinges
