Gold Plated SOSS Invisible Hinge For Security Door , Entrance Door
Gold Plated SOSS Invisible Hinge For Security Door , Entrance Door
Gold Plated SOSS Invisible Hinge For Security Door , Entrance Door
Gold Plated SOSS Invisible Hinge For Security Door , Entrance Door
Gold Plated SOSS Invisible Hinge For Security Door , Entrance Door
Gold Plated SOSS Invisible Hinge For Security Door , Entrance Door
Gold Plated SOSS Invisible Hinge For Security Door , Entrance Door
Gold Plated SOSS Invisible Hinge For Security Door , Entrance Door
Gold Plated SOSS Invisible Hinge For Security Door , Entrance Door
Gold Plated SOSS Invisible Hinge For Security Door , Entrance Door
Specifications
Brand Name :
JKL or OEM
Model Number :
AG006
Certification :
SGS,CNAS,
Place of Origin :
Jiangmen, Guangdong
MOQ :
Negotiation
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, Paypal
Supply Ability :
500,000 pcs/month
Delivery Time :
30 days.(A small amount of stock all the time)
Packaging Details :
2 pcs/inner white box, 100 pcs/carton, CTN Size: 34.5X17X10.5CM, G.W./CTN: 10 kgs
Main Usage :
Security Door , Entrance Door
Advantages :
Complete flush look, high sensory, durable and silent
Weight loading :
20 kgs/3 pcs
Name :
SOSS Invisible Hinge
Surface Finish :
Gold plated
Open degree :
180°
Min door thickness :
20mm
Service life :
＞5 years
Description

Gold Plated SOSS Invisible Hinge For Security Door , Entrance Door

SOSS Invisible Hinge Usage and Installation


Suitable for solid wood door, steel wood door, wood door, security door, steel door, armored door,

decorative craft door, fire door, composite door, aluminum alloy.door, wood plastic door, cabinet door, metal door, bronze series craft door, glass Mosaic, outside door, interior door, wooden door, aluminum alloy door, plastic door,aluminum wood doors, stainless steel door, flat open door, ecological door, interior door, explosion-proof door, anti-knock door, fire door, etc

Tested for over 200,000 cycles ,no abrasion

SOSS Invisible Hinge details:
1, Name Gold Plated SOSS Invisible Hinge For Security Door , Entrance Door
2, Min door thickness 20mm.
3, Product material Casting Zinc alloy body, SS 201 connecting arms.
4, Available Finishes

Gold plated,Antique Copper, Satin Chrome, Satin Nickel, Antique Brass, PVD
5, Main usage Wardrobe door, Cabinet door, Flush door, Furniture door.
6, Residential&Commercial Usage Both available.
7, Weight loading 20 kgs/3 pcs.
8, Open degree 180°.
9, Distinguishing for left or right No.
10, Quality testing&certificate SGS, CNAS, MA, AL, Work Safety Standardization.
11, Advantages Drilling to be invisible installation,Concealed for a complete flush look, high sensory, durable and silent.


There are many reasons to choose JINKAILI for SOSS Invisible Hinges:

  • Safety - The moving pivot point remains inside the hinge during travel until fully opened, eliminating an external pinch point on the back side of the door.
  • Parallel Mounting - The unique mounting of these invisible hinges allow for almost unbroken surfaces between doors and frames to achieve a sleeker, more visually appealing look while door is open. It also consumes very little volume, leaving more room inside cramped cabinets.
  • 180° Opening - Door swings completely around, allowing full unobstructed access to the cabinet contents.
  • Unique Motion Path - Motion path is non-circular and swings away from the cabinet, allowing for tight door clearance.
  • Proven Design - These invisible hinges are designed to give smooth dependable operation for years. They are made of high strength plated steel and heavy duty zinc alloy castings.
  • Finishes - Satin Brass and Satin Chrome are in stock. Satin Bronze, Polished Chrome, Polished Brass and Unplated are quickly available.

Queations you may ask:
1, Samples' free or charged including the express cost?
Samples' cost less than USD 50.00 will not be charged, express cost on customer's side.
2, Factory area and number of employees?
5000 ㎡&100 workers
3, Delivery time for regular orders?
We always keep s small amount of stock(around 1000 pcs for each sizes), and for mass orders, certainly finish from 15 days up to 30 days.

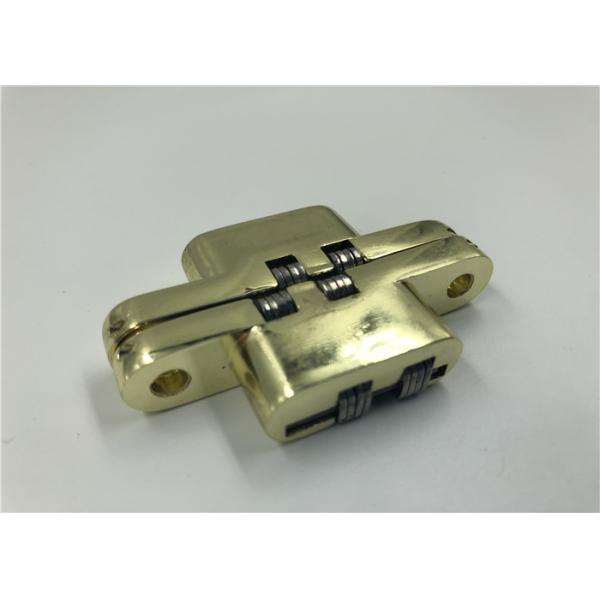

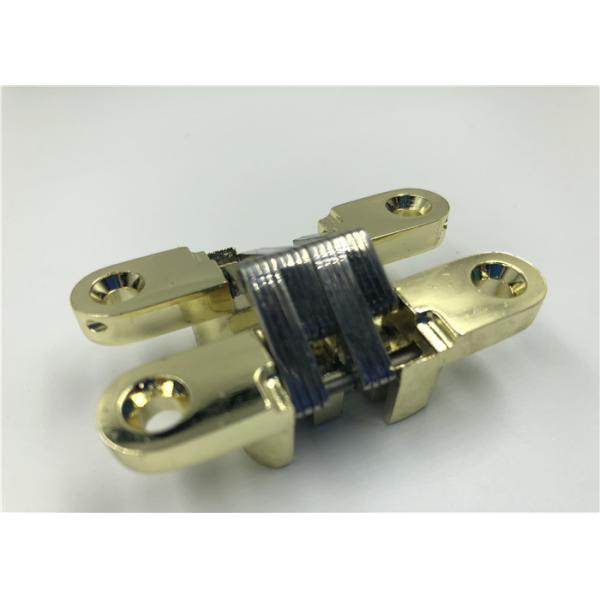

Real Photos in Gold plated color:

Gold Plated SOSS Invisible Hinge For Security Door , Entrance Door

Gold Plated SOSS Invisible Hinge For Security Door , Entrance Door

Gold Plated SOSS Invisible Hinge For Security Door , Entrance Door
