300W Nightclub Sound Equipment / 1"+12" Full Range Speaker For Pub, Karaoke, Conference, Auditorium, KTV, Nightclub, Villa and Home Cinema
Quick Detail:

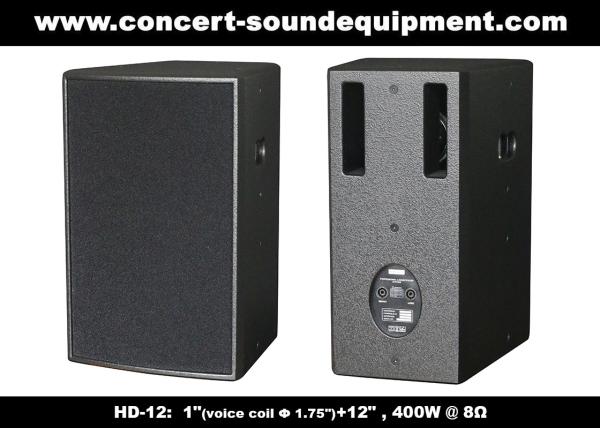

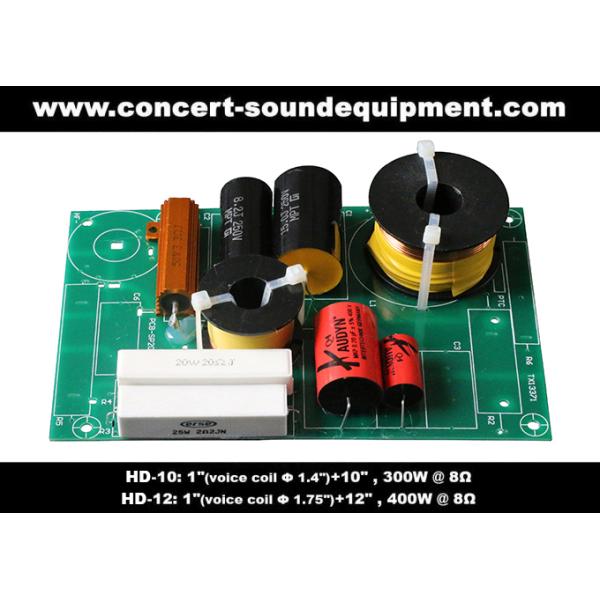

Cabinet made with 15mm thick plywood, reflex vent at back ensures better bass effect, beautiful cabinet and mesh grille design, high clarity sound, high power, rotatable and strong horn with dispersion(HxV) 90°x 40° , connectors 2pcs NL4MP, and M10 flying points for fixed installation, pole mount at cabinet bottom. Crossover board is fixed with AUDYN capacitors to reproduce clean HF sound. Different finish(Clear coating, Black, Purple, Gray, White, Brown) available for options.
Description:

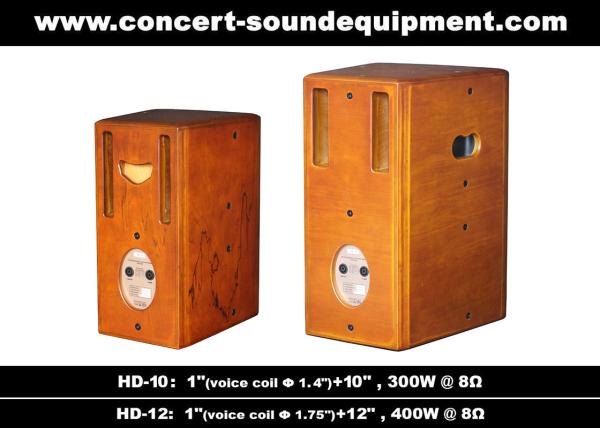

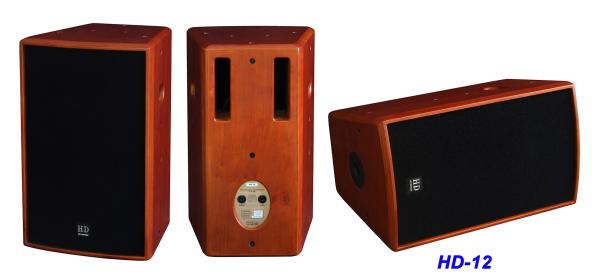

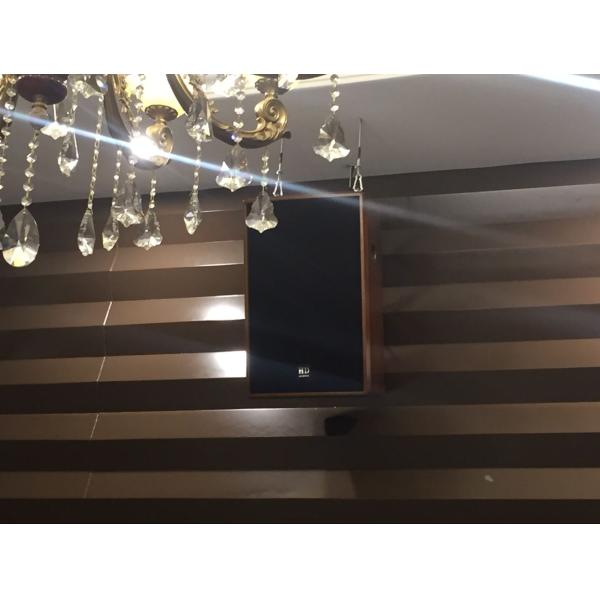

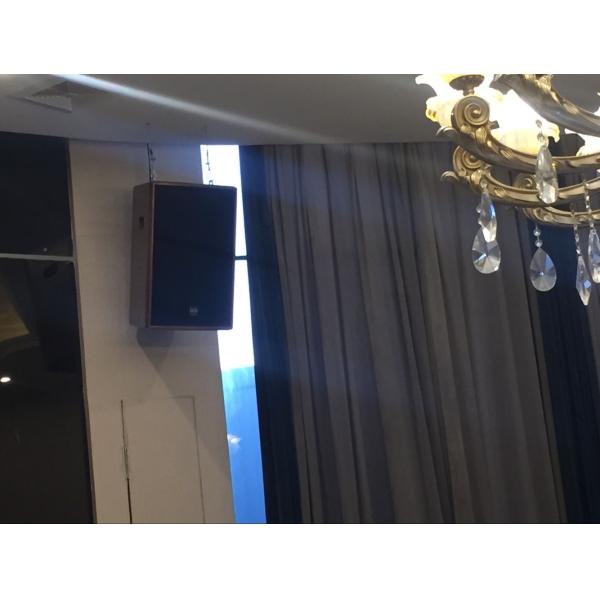

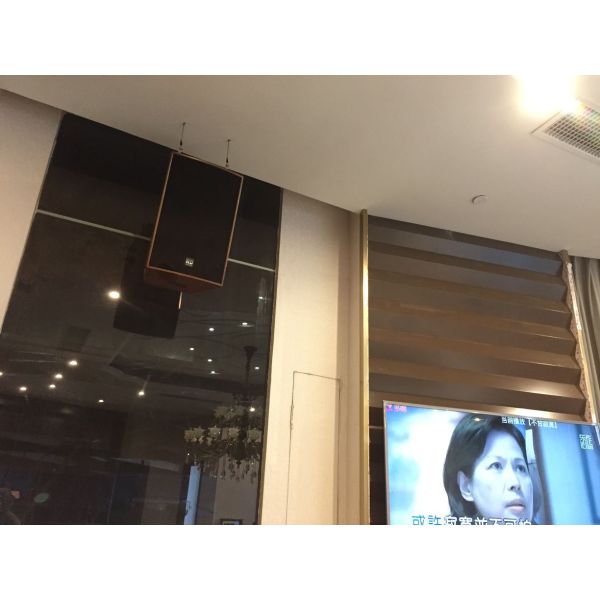

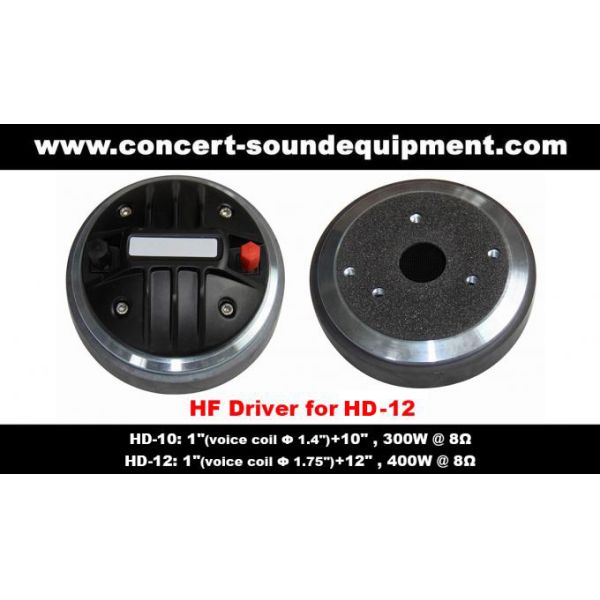

HD-12 full range speaker's HF driver has a 1.75" voice coil. The rotatable horn is harder and stronger than engineering plastic, not easy to get broken, and it can reproduce a better sound. The pole mount at the cabinet bottom makes stand and pole support possible. M10 flying points are for fixed installation. Clear lacquer and wood grain make the cabinet fresh and environmentally-friendly looking, suitable for some venues furnished with wood or other building material of warm colour.
If you want smaller one, we have 10" HD-10.

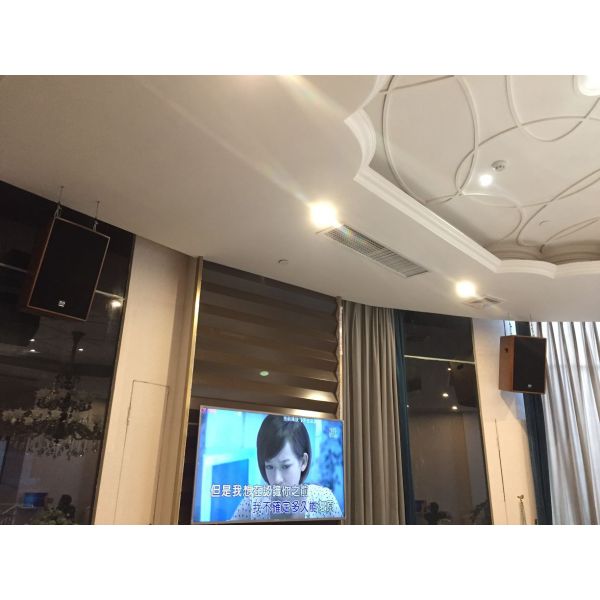

Applications: conference, pub, church, KTV, Karaoke, Home Cinema, Villa, school.......
Finish available for options: Black, Purple, Gray, White, Brown.
Packing: normal packing carton or flight case(2 pcs HD-12 vertically packed in 1 flight case).
Want high resolution pictures, have further questions and want to know prices? For a fast and easy communication, please contact us at Whatsapp and our number for Whatsapp is +86 13512754579. Our FACEBOOK page: MasterSound.GuangZhou. Or you can send your detailed requirements to
our mailbox info@master-sound.cn.
Applications:
pub, conference, background music, KTV, Karaoke, Home Cinema, school
Specifications:
HD-10 | HD-12 | |

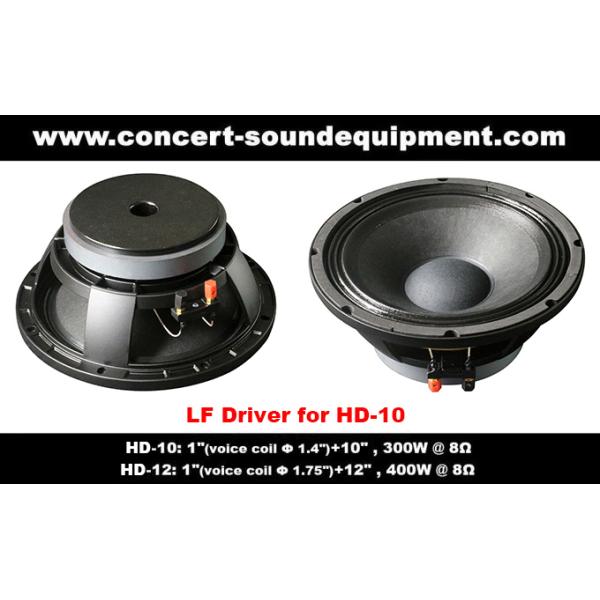

Components: | 1"(voice coil Φ 1.4")+10" | 1"(voice coil Φ 1.75")+12" |
Nominal Impedance: | 8 ohm | 8 ohm |
RMS Power Handling: | 250W | 300W |
Frequency Response: | 60-20KHz | 50-19KHz |
Crossover Point: | 2.5KHz | 2KHz |
Sensitivity(1W/1M): | 96dB | 97dB |
Max. SPL: | 120dB | 123dB |
Dispersion(HxV): | 90°x 45° | 90°x 40° |
Dimensions(HxWxD): | 520x328x340mm | 610x380x400mm |
Rigging Point: | M10 | M10 |
Net Weight(Kg): | 18.5 | 21.8 |
Connector: | NL4MP | NL4MP |
Competitive Advantage:
Compact cabinet, beautiful cabinet design, plywood material, big power, high quality drivers, excellent sound quality
