Specifications
Brand Name :
ZHENHENG
Model Number :
JZR500 Diesel Concrete Mixer
Certification :
SGS, ISO, BV, CE
Place of Origin :
HENAN CHINA
MOQ :
1set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 sets/month
Delivery Time :
7-15 working days after confrim order
Packaging Details :
Export standard container: 20GP or 40GP, 40HC
Warranty :
12 months
Model :
JZR500 Diesel Concrete Mixer
Condition :
New
After-sales service provided :
Online support,Video technical support,Engineers available to service machinery overseas
Motor power :
22HP
Weight :
2100KG
Charging capacity :
800L
Reclaiming capacity :
500L
Description

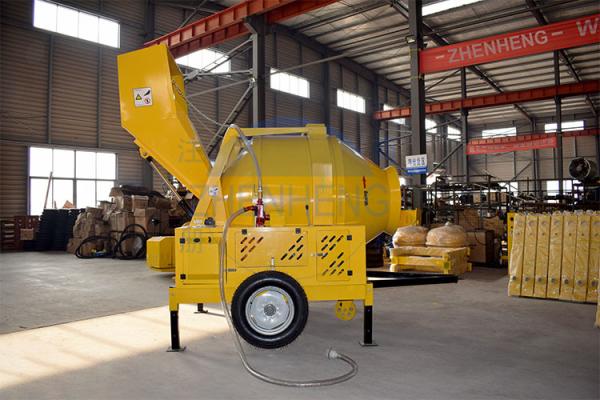

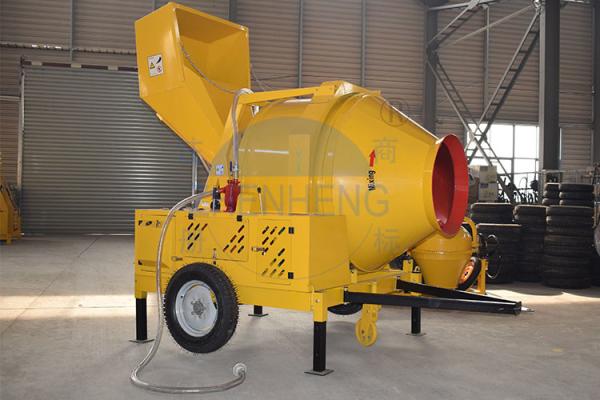

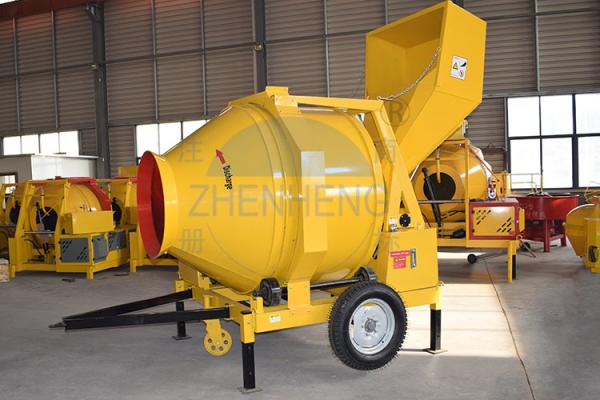

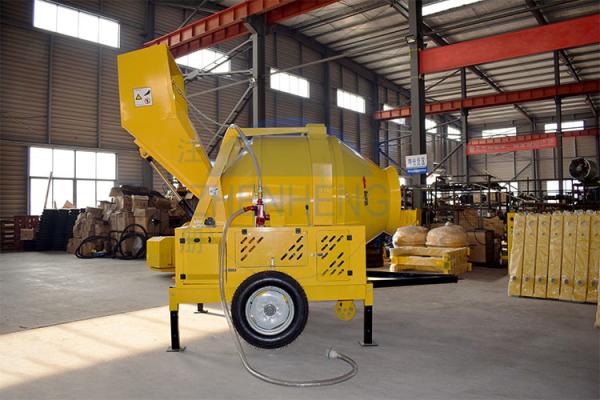

18-20m3/h JZR500 Diesel Engine Reversing Drum Concrete Mixer

Brief Introduction of 18-20m3/h JZR500 Diesel Engine Reversing Drum Concrete Mixer

Concrete Mixer is a kind of gravity type double cone reversing concrete mixer.It turns forward to stir and reverse to discharge at working.It can stir plastic and semi dry concrete.

The mixing drum of the machine through the ring geare driven,it has plenty of advantages such as reliable transmission,light weight,low energy consumption,compact structure,smooth operation,simple operation,good mixing quality,high efficiency and so on.

Features of 18-20m3/h JZR500 Diesel Engine Reversing Drum Concrete Mixer

Engine is specially designed for some remote areas without electricity to achieve mechanized construction. The principle is the existing JZR500 concrete mixer is installed a diesel power generation system, and this system can supply electricity power to make sure the normal running of mixer. The generating system's out power is 25KW, so it can also supply extra part of electricity power to other small devices, as concrete vibrators and lighting equipments, while it's keeping the mixer's operation.In addition, the machine can also match the external power directly, achieves diesel-electric dual-use.

Adding a water pump for water circulation between water tank and water radiator,it keeps the water temperatures stable Removing the air sucking point from the back to the front to reduce its sucking dust ,it will be helpful to prolong the service life of the engine.Sincola Diesel Engine Concrete Mix is a bipyramid reversal discharging self-loading concrete mixer, the mixing drum's forward rotation is mixing, reverse rotation is discharging. The machine has the benefits of simple structure, reliable, good mixing quality, high efficiency, light weight, and easy manipulation of maintenance, so it is more advanced models of concrete mixers. Because outfitting with a diesel-powered engine, it is more applicable to the remote areas and the wild which have no electric power supply.

Parameters of 18-20m3/h JZR500 Diesel Engine Reversing Drum Concrete Mixer

ITEM

JZR500

Discharging Volume

500L

Charging Volume

800L

Capacity

18-20m3/h

Max. Size of Aggregate

60-80mm

Mixing Drum Rotational Speed

14r/min

Mixing Motor Power

22HP

Max. Towing Speed

14km/h

Size

3600*2500*3650mm

Our Service

1. Well-trained and experienced staff to answer all your inquiries in fluent English and Russia.
2. OEM & ODM is welcome. OEM brand is available.
3. If you have any idea or demand, we can provide the customization service.
4. Protection of your market area, ideas of design and all your private information.
5. We will supply the spare parts to insure the quality of our mixer.
6. Your inquiry will be replied within 24 hours.
7. Provide following up after-sales services. We will dispatch our serviceman to solve the problem for you, if you have questions about our mixer.

How to maintain the mixer?

Concrete mixers are often connected with time and labour-intensive projects. These tools are usually seen in dusty building websites, with huge piles of construction materials and individuals in hard hats scurrying about.

But even simple jobs may benefit from the usage of a concrete mixer. Whether you need to pave a little driveway or expand your house, obtaining a concrete mixer can surely hasten the construction process. People no longer have to devote a good deal of time and energy to manually mixing concrete. Even small, simple tasks are able to make use of mixers.

Whether you are a newcomer to cement an experienced building professional, knowing a few of the approaches for using a mixer can do a great deal in boosting your efficiency and productivity at the worksite.

1. Position on stable ground

Position the concrete mixer onto a stable, horizontal surface, rather than irregular or sloping ground. Even if the surface is coated, make it a point to place a rigid hardboard or something similar under the mixer to guarantee stability and to avoid accidental spillage.

2. Keep the motor clean

Concrete mixers should only be used outdoors, and all of the dust flying about can get to the mixer’s motor. Utilize an air compressor to dislodge cement and dust which might have gathered in the engine.

A clean motor operates optimally and economically. Additionally, you spend less on expensive repairs.

3. Grease the gears

All that turning and mixing wet cement inside the drum will wear the gears and pulleys down. Regularly grease the gears, pulleys and other moving joints to counteract the stress caused by friction. Not only will your mixer’s lifespan be more, but its functionality will remain at the best level.

4. Drain the drum

Drain the drum of concrete immediately after it stops turning. You shouldn’t wait until the last time to pour out the concrete, or it may harden and be impossible to get rid of. Do not use the drum to maintain mixed concrete.

5. Wash the mixer following use

Gently wash out the cement mixer after use. This is a safe and reasonably priced way of washing out the mixer and doesn’t involve using abrasive chemicals.

Leave a mix of 2 scoops of gravel combined with three gallons of water for 15 to 25 minutes to ensure the best outcome. Remember to correct the drum angle to ensure all nooks and crannies are attained.

More Details of 18-20m3/h JZR500 Diesel Engine Reversing Drum Concrete Mixer

18-20m3/h JZR500 Diesel Engine Reversing Drum Concrete Mixer

Concrete Mixing Drum

The Drum Thickness is made by Q345 with thickness 6mm
Easy maintenance base on the Bolt Connected Design of Grand Gear Ring. Transmission of power more stable.

Frame

The machine frame is made of NO.12 box iron which is Heavy-duty Frame.

18-20m3/h JZR500 Diesel Engine Reversing Drum Concrete Mixer

18-20m3/h JZR500 Diesel Engine Reversing Drum Concrete Mixer

Riding Wheel

Size: of Φ220mm x75mm
Quantity: 4 sets
Advantages: longer service life
Rotation of drum more smoothly and stably.

Transmission System

The technology of the transmission system is improved by long production experience, guarantee?stable function.

18-20m3/h JZR500 Diesel Engine Reversing Drum Concrete Mixer

18-20m3/h JZR500 Diesel Engine Reversing Drum Concrete Mixer

Protection Cover

It makes the machines looking more tidy, prevent the engine and transmission systems damaged by the dust or concrete, the service life of machines can be extended.

Water-cooled Diesel Engine

It is powerful driving force with low fuel consumption. brandy engine as changchai, changfa etc.,the quality is stable and easy to find suppliers at overseas market.

18-20m3/h JZR500 Diesel Engine Reversing Drum Concrete Mixer

18-20m3/h JZR500 Diesel Engine Reversing Drum Concrete Mixer

Trailing Rod Flexible Guide Wheel

The trailing rod make the mixer transported safely.
The mixer is equipped with extra?one set of Guide Wheel, flexible changing of direction prevent side rollover.

Hydraulic Oil Tank

Oil tank capacity is more than 70L compared with others supply 30L tank, our oil tank can be filled more oil one time prevent the temperature goes highly during working process.

18-20m3/h JZR500 Diesel Engine Reversing Drum Concrete Mixer

18-20m3/h JZR500 Diesel Engine Reversing Drum Concrete Mixer

Hydraulic Loading hopper


Loading hopper is driven by hydraulic cylinder, which has stable performance and long service time.
