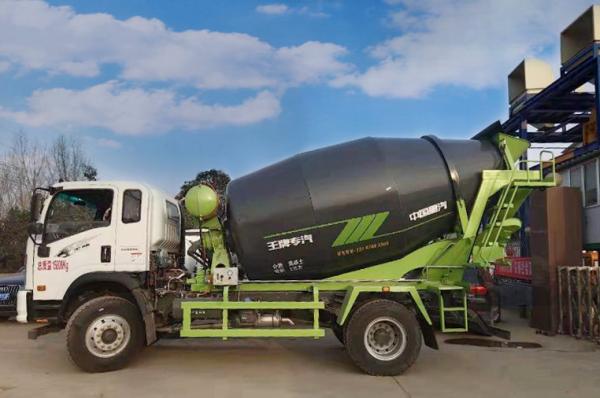

1.5 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 12 cubic meter mixer truck top mixing tank

Hydraulic system: hydraulic transmission part, using Kezhen reducer, joint venture plunger pump, variable motor or high quality domestic gear pump, cycloidal needle motor, flow control reversing valve, large volume radiator, constant oil temperature, system operation Smoother, faster and more uniform delivery, providing you with the safest job guarantee.

①, the technical parameters of the mixing tank on the mixer truck

Geometric volume: 2.7 / 5.2 / 6.1 / 8.5 / 9.6 / 10.2 / 11.8 / 13.2 / 15.0 / 18.8 cubic meter

Corresponding effective stirring volume: 1.5 / 3 / 4 / 5 squares / 6 / 7 / 8 / 9 / 10 / 12 cubic meter

Corresponding cylinder diameter: 1.05m / 1.75m / 1.75m / 2.05m / 2.05m / 2.15m / 2.20m / 2.20m / 2.20m / 2.55m

Corresponding tilt angle: 14°/16°/16°/14°/14°/16°/16°/14°/14°/14°

Corresponding speed: 0-10

Water supply form: compression type

Water tank capacity: 350L; 300L; 400L

Hydraulic system: domestic hydraulic system and imported hydraulic system can be selected. Domestic hydraulic system can choose our unique stepless speed change device.

②, the characteristics of the mixing tank on the mixer truck

1. Advanced production process

In the process of production top loading, advanced production technology is adopted: longitudinal seam welding machine, automatic ring seam, integral tube welding of mixing drum, long shaft roller frame, automatic sand blasting equipment, etc. The technical level and appearance of the tank product quality are ensured.

2. Fast feed rate and low residual rate

Stirring tank speed 6-12 laps/min;

Discharge residual rate: less than 0.8% (standard requirement 3-5%);

Discharge speed: greater than or equal to 2 cubic meters / minute (the national regulations are 2.7 cubic meters / minute);

Feeding speed: 3.5 m3/min or more (the national standard is 2.7 m3/min).

And our tops adopt the technology of stepless speed change, which is also the technology that the peers don't have. This setup allows you to navigate the various sections of your road while driving. In different sections, different tank speeds are adjusted. Increased vehicle stability is very beneficial to the safety of the driver. The top is designed with a slim shape to reduce the center of gravity of the vehicle, making the vehicle run more smoothly and greatly increasing the safety performance. At the same time, the proper tilt angle also ensures the effective volume of the top to ensure the customer's interests.
