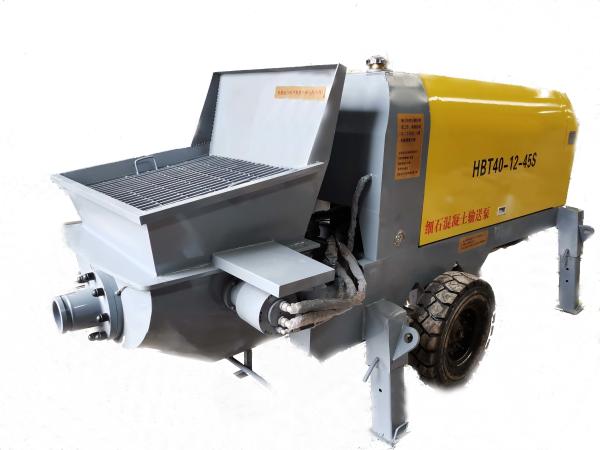

18 - 20M³ / H Portable Concrete Pump 400m Horizontal Distance HBT40 Model
18 - 20M³ / H Portable Concrete Pump 400m Horizontal Distance HBT40 Model
Specifications
Delivery volume :
18-20M³/h
Motor Power :
45kw
Dimensions :
4100*1700*1600mm
Maximum theoretical transport distance 1 :
horizontal 400m
Maximum theoretical transport distance 2 :
vertical 100-150m
Total Weight :
2500kg
Place of Origin :
Zhengzhou,China
Brand Name :
Jinteng
MOQ :
1 set
Price :
Negotiation
Packaging Details :
product specifications
Delivery Time :
5-7 working days
Description

HBT40 fine stone concrete pump

Product Description

1. It adopts advanced smooth S tube valve reversing; it can meet the transportation needs of fine stone concrete or commercial fine stone concrete, and it is not easy to block the pipe.

2. Spectacle plate and cutting ring; using high hard wear resistant alloy material for longer life.

3. High export pressure; it's able to meet the transportation requirements of high rise buildings and long distance construction.

4. The hydraulic oil cooling adopts air cooling system: good cooling effect is , simple to use , and it is not easy to pollute the oil.

5. Adopting stepless manual variable displacement: it can meet the many users ‘ different requirements for the discharge speed.

6. Advanced wireless remote control function: Improving the remote control distance, facilitating remote operation, and making the product more humanized.

7. Highly wear resistant concrete cylinder: Increasing the service life of the concrete pump and reducing the maintenance cost .

Technical Parameter

Item unit of measurement parameter
Delivery volume M³/h 18-20
Outlet pressure Mpa 12
Aggregate maximum particle size mm <15-20
Motor Power KW 45
Dimensions (length, width and height) mm 4100*1700*1600
Maximum theoretical transport distance M horizontal 400
M vertical 100-150
Total Weight KG 2500
Feeding height MM 1100
Conveying pipe diameter mm Φ80/100/125

Main Feature:

Fine stone mortar concrete pump is widely used in high rise building ash mortar and fine stone concrete transportation, R structure column grouting, reservoir, hydropower station, port terminal, various pressure grouting, foundation treatment, sub weak foundation, reinforcement grouting, Backfill grouting anchor support in tunnel, subway and mine construction. Secondary construction column watering, and slope spray anchor support.
