Remote Operation Ready Mix Concrete Pump , Stepless Hydraulic Concrete Pump
Remote Operation Ready Mix Concrete Pump , Stepless Hydraulic Concrete Pump
Specifications
Place of Origin :
Zhengzhou,China
Brand Name :
Jinteng
MOQ :
1 set
Price :
Negotiation
Packaging Details :
product specifications
Delivery Time :
5-7 working days
product name :
Portable Concrete Pump
usage :
fine stone concrete transportation
Warranty :
1 year
Condition :
New
apply for :
high rise building ash mortar
Total Weight :
1300kg
Description

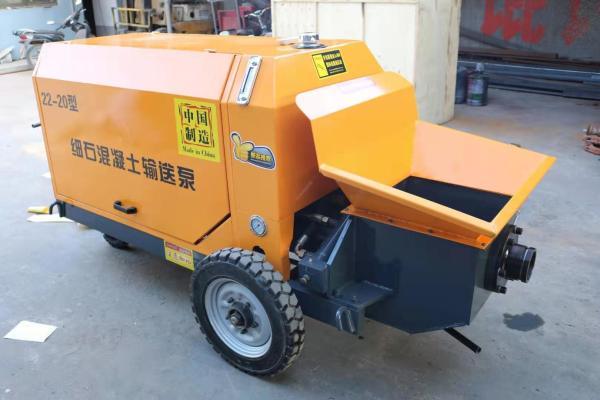

20 type fine stone concrete pump

Fine stone mortar concrete pump is widely used in high rise building ash mortar and fine stone concrete transportation.

Product Description

1. It adopts advanced smooth S tube valve reversing; it can meet the transportation need of fine stone concrete or commercial fine stone concrete, and it is not easy to block the pipe.

2. Spectacle plate and cutting ring; using high hard wear resistant alloy material for longer life.

3. High export pressure; it's able to meet the transportation requirements of high rise buildings and long distance construction.

4. The hydraulic oil cooling adopts air cooling system: good cooling effect , simple to use , and it is not easy to pollute the oil.

5. Adopting stepless manual variable displacement: it can meet the many users’ different requirements for discharge speed.

6. Advanced wireless remote control function: Improving the remote control distance, facilitating remote operation, and making the product more humanized.

7. Highly wear resistant concrete cylinder: Increasing the concrete pump service life and reducing the maintenance cost .

Main Features

1) engine strong power

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

Technical Parameter

item unit of measurement parameter
Maximum theoretical delivery M³/h 18-20
Outlet pressure Mpa 12
Aggregate maximum particle size mm <20
Motor Power KW 22
Dimensions (length, width and height) mm 2650*1200*1400
Maximum theoretical transport distance M horizontal 60
M vertical 40
Total Weight KG 1300
Feeding height MM 800
Conveying pipe diameter mm Φ80

Main Feature:

Fine stone mortar concrete pump is widely used in high rise building ash mortar and fine stone concrete transportation, R structure column grouting, reservoir, hydropower station, port terminal, various pressure grouting, foundation treatment, sub weak foundation, reinforcement grouting, Backfill grouting anchor support in tunnel, subway and mine construction. Secondary construction column watering, and slope spray anchor support.
