Professional Portable Trailer Mounted Concrete Pump 6275×1962×2215 Mm
Professional Portable Trailer Mounted Concrete Pump 6275×1962×2215 Mm
Specifications
Brand Name :
Zoomwolf
Certification :
ISO
Place of Origin :
Changsha,China
Model Number :
HBT60S1390C
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Large structural parts are bundled，Small pieces are packed in iron cases.
Applicable Industries :
Construction Works
Name :
Concrete Pump Machine
Feature :
Easy Operation
power :
186kw
Weight :
6685kg
Description

Professional Portable Trailer Mounted Concrete Pump 6275×1962×2215 Mm

Product introduction HBT100SR18186C

ZOOMWOLF concrete pumpHBT100SR18186C

This is a high output pressure(18MPa) concrete pump,powered by diesel engine.

Technical performance:

Output capacity(m3/h):57(high pres.)/103(low pres.)

Output pressure(MPa):18(high pres.)/10(low pres.)

Distribution Valve:S valve

Rated power of BF6M1013 diesel engine(kW):186

Oil pres.of the pumping system(MPa):32

Hydraulic system circle form:Twin-pump and -circuit open system.

Oil tank volume(L):500

Overall dimension L×W×H(mm):6460×1962×2620

Total mass(kg):6685

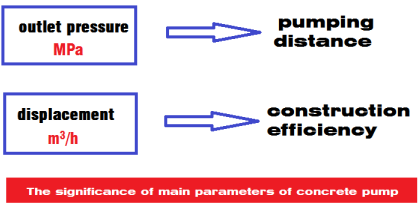

Main parameters of concrete pump

The main parameters are the core parameters that can reflect the working capacity of concrete pump.

Usually we take the concrete pump outlet pressure and displacement as its main parameters. Because, the higher the outlet pressure, the longer the pumping distance; The larger the displacement, the higher the construction efficiency.

In the design of concrete pump, the main parameters are the most basic basis.

Professional Portable Trailer Mounted Concrete Pump 6275×1962×2215 Mm

3-fig.(1)Main parameters of concrete pump
