Construction Buildings Hydraulic Concrete Placing Boom Standard Types
Construction Buildings Hydraulic Concrete Placing Boom Standard Types
Construction Buildings Hydraulic Concrete Placing Boom Standard Types
Construction Buildings Hydraulic Concrete Placing Boom Standard Types
Specifications
Brand Name :
Zoomwolf
Certification :
ISO9001
Place of Origin :
Changsha,China
Model Number :
HGY29,33
product :
Hydraulic Concrete Placing Boom
Column length :
5m,8m,10m
Function :
Construction Buildings
Feature :
High wear resistance bend
Voltage :
380V/50HZ
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Large structural parts are bundled，Small pieces are packed in iron cases.
Description

Construction Buildings Hydraulic Concrete Placing Boom Standard Types

Features
Optimal design of boom-&column-structure ,Inner hydraulic oil tank renders a compact placement.

The key components of hydraulic- and electrical-system are from world famous brand,which ensure safety and stability.

Application of concrete placing boom

In the modern concrete construction mode, more and more use of concrete placing boom.This way can not only guarantee the quality of concrete pouring, but also improve the efficiency and reduce the labor cost.

Especially in the construction of high-rise buildings, the combination of concrete placing boom and concrete pump is an efficient and relatively economical mode.

For option:
1. Standard types without counter weight
2. Floor or shaft climbing
3. Step speed or stepless speed(proportional control)
4. Column length:5m,8m,10m
5. Delivery pipes for option as project budget:
⑴ Ordinary single straight pipe and cast steel bend,service life not more than 20,000m3 ；
⑵ High wear resistance double straight pipe and bend,service life not less than 50,000m3；

Technical Specifications
Model of placing boom HGY29S-3R HGY29P-3R HGY29SC-3R HGY29PC-3R
Performance Max. radius (m) 29
Free standing height, 22.7m,400°
Slewing range
Working temperature(℃) 0～60℃
Counter weight(kg) / 2930
Total weight(kg) 19100 22030
Supply power to equipment 380V/50Hz
Electric motor Motor model Y2-160L-4
Power(kW) 15
Hydraulic system System pressure(MPa) 32
Flow(L/min) 18
Oil tank capacity(L) 280
Control mode (Cable+Radio) remote control
Clearing mode for concrete pipe Water clear / Dry clear
Section of tubular column (m×m) 0.75×0.75
Arm(Booms) Boom model fully hydraulic foldable arms
Delivery pipeline diameter DN125mm
Length of end hose (〃×m) 5〃×3
The first section Length(m) 10.9
Articulation -2.5°～82.5°
The second section Length(m) 9.6
Articulation 0°～180°
The third section Length(m) 8.5
Articulation 0°～180°
Climbing Climbing mode Cylinder jack lifting
Internal climbing step distance(m) 0.52
Floor Frame Hole prepared in floor
Shaft Frame Size of climbing shaft : 2.0m-2.7m
Min. space between internal climbing frame Climbing(m) 3
Placing concrete(m) 6
Rest(m) 6

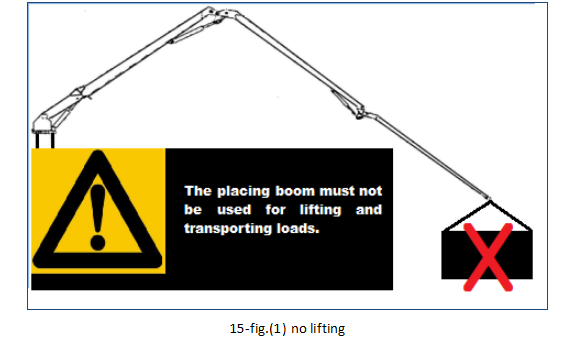

Why not use the boom to lift heavy objects?

It is absolutely forbidden to use the placing boom to lift heavy objects unless the lifting conditions have been considered in the design.

For the conventional concrete placing boom, the loading condition is not within the design calculation range. If using the placing boom to lift heavy objects, it will cause permanent deformation of the boom structure or even break off, resulting in accidents!

Construction Buildings Hydraulic Concrete Placing Boom Standard Types

Construction Buildings Hydraulic Concrete Placing Boom Standard Types

Construction Buildings Hydraulic Concrete Placing Boom Standard Types

About the model

HGY ×× S or P C or blank - × R

① ② ③ ④ ⑤

① Hydraulic concrete distributor

② Round number of Max.radius(m)

③ Step speed regulation(S)or

Proportional control speed regulation(P)

④ With(C)or without(blank) counter weight

⑤ Arm section number ×Roll folding(R)

【Identification letter description】

S: Step-speed adjustment

P: Proportional (Stepless speed regulation)

C: Counter weight

【The sample】

1. Model HGY33S-3R means:

Without counter weight,max.radius 33m,step speed regulation and 3 roll-folding arms.

2. Model HGY33PC-4R means:

With counter weight,max.radius 33m, proportional control speed regulation and 4 roll-folding arms.

Construction Buildings Hydraulic Concrete Placing Boom Standard Types
