Professional Diesel Concrete Pump 1400mm Feeding Height 500L Hopper Volume
Professional Diesel Concrete Pump 1400mm Feeding Height 500L Hopper Volume
Specifications
Model Number :
HBT80SR21186C
Brand Name :
Zoomwolf
Certification :
ISO
Place of Origin :
Changsha,China
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Large structural parts are bundled，Small pieces are packed in iron cases.
Applicable Industries :
Construction works
Name :
Diesel Concrete Pump
engine power :
186kw
weight :
6685kg
Feature :
Easy Operation
Description

Professional Diesel Concrete Pump 1400mm Feeding Height 500L Hopper Volume

Product introduction HBT100SR18186C

ZOOMWOLF concrete pumpHBT100SR18186C

This is a high output pressure(18MPa) concrete pump,powered by diesel engine.

Technical performance:

Output capacity(m3/h):57(high pres.)/103(low pres.)

Output pressure(MPa):18(high pres.)/10(low pres.)

Distribution Valve:S valve

Rated power of BF6M1013 diesel engine(kW):186

Oil pres.of the pumping system(MPa):32

Hydraulic system circle form:Twin-pump and -circuit open system.

Oil tank volume(L):500

Overall dimension L×W×H(mm):6460×1962×2620

Total mass(kg):6685



About the easy to wear parts of concrete pump

Concrete pump is through the pressure delivery of concrete, some parts and components directly with concrete or slurry leakage particles contact and friction or corrosion and inevitable damage. The extent of their damage depends on many factors, such as the material of the parts themselves, the stiffness of the concrete aggregates, pumping pressure and pumping speed.
In the composition of the concrete pump, the following parts are easy to wear, should be an appropriate amount of spare parts inventory to meet the needs of timely replacement: eye-glass plate, cutting ring, S tube, transition sleeve, mixing shaft, mixing blade, shaft end seals, conveying pipe, hose, rubber ring, rubber spring, concrete piston, etc..
Professional Diesel Concrete Pump 1400mm Feeding Height 500L Hopper Volume

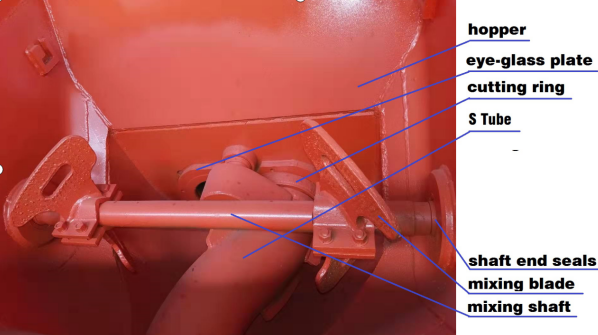

18-fig.(1)Examples of the easy to wear parts
Professional Diesel Concrete Pump 1400mm Feeding Height 500L Hopper Volume

Professional Diesel Concrete Pump 1400mm Feeding Height 500L Hopper Volume
