90kw Trailer Mounted Concrete Pump Easy Operation 6200kg Weight
90kw Trailer Mounted Concrete Pump Easy Operation 6200kg Weight
Specifications
Brand Name :
Zoomwolf
Certification :
ISO
Place of Origin :
Changsha,China
Model Number :
HBT60S1390C
MOQ :
1 Set
Price :
Negotiable
Packaging Details :
Large structural parts are bundled，Small pieces are packed in iron cases.
Applicable Industries :
Construction Works
Name :
Concrete Pump Machine
Feature :
Easy Operation
power :
90kw
Weight :
6200kg
Description

90kw Trailer Mounted Concrete Pump Easy Operation 6200kg Weight

HBT60S1390C Concrete Pump Machine

Name of parameter Unit HBT60S1390C
Output capacity m3/h 41(high pres.)/69(low pres.)
Output pressure MPa 13(high pres.)/7(low pres.)
Distribution Valve Valve
motor model Y2-280M-4
Rated power of motor kW 90
Rated rotating speed /voltage rpm/V 1480/380
Displacement of the main oil pump ml/r 190
Oil pres.of the pumping system MPa 32
Delivery cylinder diam.×stroke mm Φ200×1800
Hydraulic system circle form Twin-pump and -circuit open sys.
Hopper volume L 730
Feeding height mm 1400
Oil tank volume L 500
Max.grain size mm pebbleФ50,crush.stoneФ40
Overall dimension L×W×H mm 6275×1962×2215
Total mass kg 6200

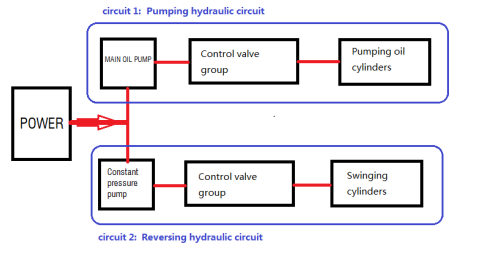

About twin-pump twin-circuit hydraulic system of concrete pump

Twin-pump twin-circuit advantages: convenient fault diagnosis, convenient maintenance. And it is beneficial to extend the service life of oil pump.

The pressure oil of the main pump is supplied to the pumping circuit, and the pressure oil of the constant pressure pump is supplied to the reversing circuit, which is called "twin-pump twin-circuit".

This is shown below.

90kw Trailer Mounted Concrete Pump Easy Operation 6200kg Weight

6-fig.(1)twin-pump twin-circuit

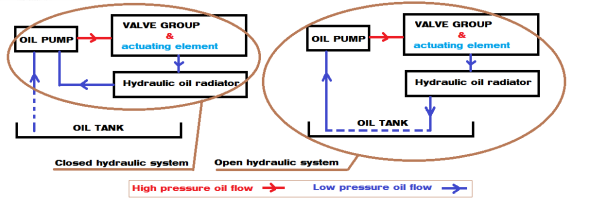

Open and closed system

Open system: the oil flow of the hydraulic system circulates through the tank.

Closed system:the oil flow of the hydraulic system circulates not through the tank.

Schematic diagram is as follows:

90kw Trailer Mounted Concrete Pump Easy Operation 6200kg Weight

7-fig.(1) Open and closed system

90kw Trailer Mounted Concrete Pump Easy Operation 6200kg Weight
