Specifications
Brand Name :
DASION
Model Number :
YJS1000
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per months
Delivery Time :
10-15 working days
Packaging Details :
1x40HQ for 1 set yjs1000 twin shaft concrete mixer
Product name :
Automatic 1 Cubic Meters Ready Mix Double Horizontal Concrete Mixer Machine Price
Productivity :
50m3/h
Discharging capacity :
1000L
Charging capacity :
1500L
Max. aggregate size :
80/100mm
Mixing motor power :
18.5x2kw
Mixing time :
≤60s
Dimension :
1.1kw
Total weight :
5200kg
Description

Automatic 1 Cubic Meters Ready Mix Double Horizontal Concrete Mixer Machine Price

1. Main Specifications:

Model Unit JS500 JS750 JS1500 YJS1000
Capacity m3/h 25 35 75 50
Discharging capacity L 500 750 1500 1000
Charging capacity L 800 1200 2400 1500
Max. aggregate size mm 80/60 80/60 80/60 80/100
Mixing circle s 72 72 72 ≤60s
Mixing blade Rational speed r/min 35 31 25.5 25.5
Quantity pcs 2x7 2x7 2X8 2x7
Mixing motor power kw 18.5 30 22X2 18.5x2
Hoist motor power kw 5.5 7.5 18.5 /
Pump motor power kw 0.75 1.1 3 /
Dimension mm

4461x3050x52

25

4951x3650x62

25

9645x3736x97

00

 2810×3200
×1920
Total weight kg 4000 5500 11300 5200
Discharging height mm 1500/2700/3800 1500/2700/3800 3800 2700/3800

2. Introduction

  • DASION twin shaft concrete mixers adopt heavy duty, compact design and are widely used by our customers around the world. The mixer can be used independently or used as the mixer in a concrete batching plant.
  • DASION twin shaft concrete mixers can produce any type of high-quality concrete and mortars in the shortest time. the capacities are 800/500L, 1200/750L, 1600/1000L, 2400/1500L, 3000/2000L, etc.
  • JS series twin shaft mixer has advanced design and reliable performance which is widely used in construction business.It can mix many kinds of materials such as harsh and plastic concrete, aggregate and others effectively with energy saving.
  • With reasonable structure, economical layout and easy operation and maintenance, we can design according to customers’ requirements. This machine adopts high hardness and wear-resistant alloy cast iron for the scale board and mixing blade, so the whole machine has a long life.

3. Features And Advantages

  • Great economic.
  • High performance and productivity.
  • Fast mixing and discharging.
  • Resistance to wear.
  • Easy mixing of difficult materials with good homogeneity.
  • Low energy consumption, low noise and environment friendly.
  • Easy to operate, clean, maintain and service.
  • Low consumption and noise, easy operation or maintenance.

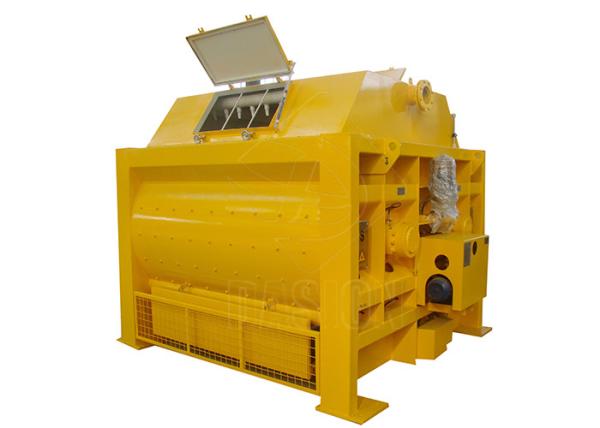

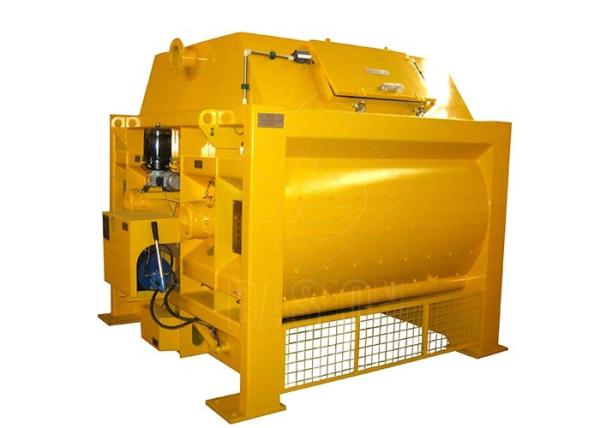

4. Detail Photos

Automatic Horizontal Ready Mix Concrete Mixer For Bridge Construction ProjectAutomatic Horizontal Ready Mix Concrete Mixer For Bridge Construction Project

4. Delivery Case

Automatic Horizontal Ready Mix Concrete Mixer For Bridge Construction Project

5. Our Service

Pre-Sale Service

1. 24 hour online, promise customers inquiry and consulting being replied in half hour.

2. Supply OEM/ODE, 3% discount for trial order and customers.

3. Welcome to visit our Factory and suggestions for DASION machines.

4. Support third part test and CIQ.

After-Sales Service

1. Training how to install and use the concrete batching plant and mixer.

2. Engineers are available to service machinery maintenance and installation in overseas.

3. Track ship every two days until customer get concrete batching plant or mixer.

4. Promise machinery problem to solve within 24 hours.
