Twin Shaft Automatic Concrete Mixer Machine , 500L Stationary Dry Mortar Equipment
Twin Shaft Automatic Concrete Mixer Machine , 500L Stationary Dry Mortar Equipment
Twin Shaft Automatic Concrete Mixer Machine , 500L Stationary Dry Mortar Equipment
Twin Shaft Automatic Concrete Mixer Machine , 500L Stationary Dry Mortar Equipment
Twin Shaft Automatic Concrete Mixer Machine , 500L Stationary Dry Mortar Equipment
Twin Shaft Automatic Concrete Mixer Machine , 500L Stationary Dry Mortar Equipment
Twin Shaft Automatic Concrete Mixer Machine , 500L Stationary Dry Mortar Equipment
Twin Shaft Automatic Concrete Mixer Machine , 500L Stationary Dry Mortar Equipment
Twin Shaft Automatic Concrete Mixer Machine , 500L Stationary Dry Mortar Equipment
Twin Shaft Automatic Concrete Mixer Machine , 500L Stationary Dry Mortar Equipment
Specifications
Brand Name :
DASION
Model Number :
JS500
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 sets per month
Delivery Time :
10-15 working days
Packaging Details :
1x20GP for 1 set js500 twin shaft concrete mixer
Product name :
500L stationary industrial dry mortar twin shaft automatic cement concrete mixer machine
Capacity :
25m3/h
Discharging capacity :
500L
Charging capacity :
800L
Max. aggregate size :
80/60mm
Mixing motor power :
18.5kw
Hoist motor power :
5.5kw
Pump motor power :
0.75kw
Weight :
4000kg
Description

500L stationary industrial dry mortar twin shaft automatic cement concrete mixer machine

Product Introduction

JS series twin shaft concrete mixer is suitable for all kinds of prefabricated component factories and hydraulic, road, bridge and other industrial and civil construction projects to mix dry hard concrete, fluid concrete, light aggregate concrete and various mortars. The concrete mixers not only can be operated independently, but also can be a simple mixing station with the corresponding batching machine.

Product Specifications

Item Unit JS500 JS750 JS1500 YJS1000
Product Capacity m3/h 25 35 75 50
Discharging capacity L 500 750 1500 1000
Charging capacity L 800 1200 2400 1600
Max. aggregate size mm 80/60 80/60 80/60 80/60
Mixing circle s 72 72 72 72
Mixing blade Rational speed r/min 35 31 25.5 25.5
Quantity pcs 2x7 2x7 2x8 2x7
Mixing motor power kw 18.5 30 2x22 37
Hoist motor power kw 5.5 7.5 18.5 318
Pump motor power kw 0.75 1.1 3 3
Dimension mm

4461x3050x52

25

4951x3650x62

25

9645x3736x97

00

8765x6436x95

40
Total weight kg 4000 5500 11300 8700
Discharging height mm 1500/2700/3800 1500/2700/3800 3800 2700/3800

Product Details

Twin Shaft Automatic Concrete Mixer Machine , 500L Stationary Dry Mortar Equipment

1. Mixing blades

The mixing system adopt the design of multi mixing blades, free of dead corner, which enables to have the perfect mixing efficiency in a short time.

2. Electric lubricating pump

National patent host monitoring system can monitor hydraulic pump ,retarder oil temperature, oil level. Users could discover and deal with faults in time, which could improve the service life.

3. Gear box(Reducer)

Adopt Italy gear box, long service life,lower noise, no oil leakage.

4. Axle-end seal

Shaft end seal with unique pressure differential multiple sealing technique, where there was a substantial increase of shaft service life.

5. Discharging system

Advanced hydraulic discharging door . In condition of sudden power outage ,the discharging door can be opened by hand, prevent concrete from lumping in the mixer.

Main Features

1) High mixing evenness, short mixing time, long life span for wearing parts, easy operation and maintenance.

2) Liner plate is made of high quality chromium, harder and longer lasting reinforced body frame, make machine securely in position.

3) Additional two limited-switches for running safety and machine running more smoothly.

4) The tracks or unloading height can be modified upon customers’ request.

5) Adopt advanced hydraulic drive equipment, avoiding the situation that mixer cannot discharge.


6) The protective hoop is made of high quality steel, wear-resistant and corrosion resistant.


7) The shaft end does not need to be injected with any lubricant to save cost.


8) Imported foreign professional supplier of reducer, long service life, and low noise.

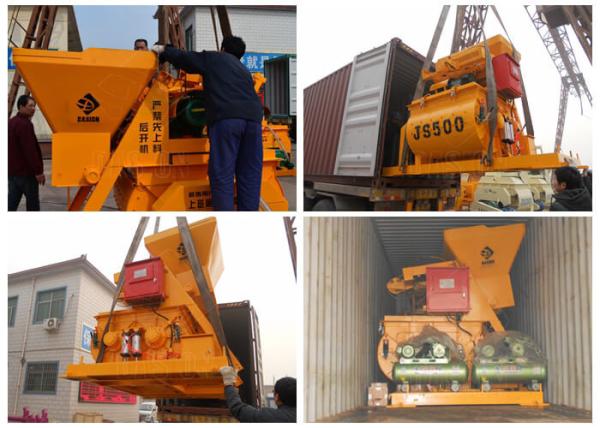

Production Process

Twin Shaft Automatic Concrete Mixer Machine , 500L Stationary Dry Mortar EquipmentTwin Shaft Automatic Concrete Mixer Machine , 500L Stationary Dry Mortar EquipmentTwin Shaft Automatic Concrete Mixer Machine , 500L Stationary Dry Mortar Equipment
