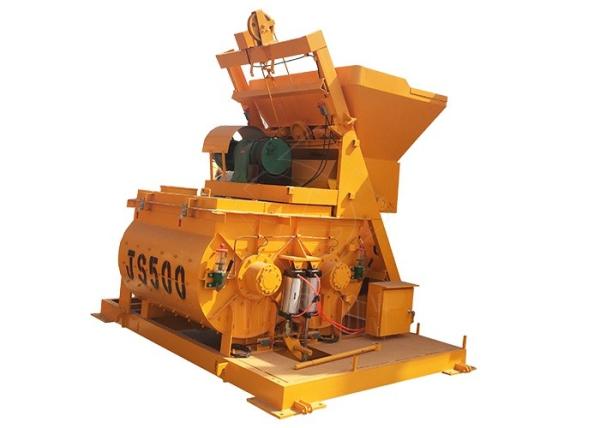

Twin shaft concrete mixer is a multi functional concrete mixing machine can be used for dry and hard, damp-dry and plastic concrete as well as light aggregate concrete and different types of mortar. The mixer machine has the advantages of simple structure, good mixing quality, high efficiency, low energy consumption, low noise, operation is simple, and with dump truck, car and truck concrete mixer matched. It is the ideal tool for building sites and large, medium-sized concrete products factory.
1) With compact structure and little space occupation, the concrete mixer is easy to be produced,transported and installed.
2) Planetary gear box with small volume, low noise,and long service life.
3) With automatic lubricating system and four shaft end sealing system with independent pump core, to ensure the balanced pressure and good sealing performance.
4) Equipped with safety switch and emergency stop swiitch to ensure the high safety coefficient of the machine.
5) Adopting more advanced technology and innovation, we design and develop a new type of shaft end sealing system with more reliable sealing effect and twice longer service life than that of the normal ones.
Model | Unit | JS500 | JS750 | YJS1000 | JS1500 | JS2000 | |
Mixer Capacity | m3/h | 25 | 35 | 50 | 75 | 100 | |
Discharging capacity | L | 500 | 750 | 1000 | 1500 | 2000 | |
Charging capacity | L | 800 | 1200 | 1600 | 2400 | 3000 | |
Max. aggregate size | mm | 80/60 | 80/60 | 80/60 | 80/60 | 80/60 | |
Mixing circle | s | 72 | 72 | 72 | 72 | 60 | |
Mixing blade | Rational speed | r/min | 35 | 31 | 25.5 | 25.5 | 23 |
Quantity | pcs | 2x7 | 2x7 | 2x7 | 2x8 | 2x9 | |
Mixing motor power | kw | 18.5 | 30 | 37 | 44 | 75 | |
Hoist motor power | kw | 5.5 | 7.5 | 18 | 18.5 | 22 | |
Pump motor power | kw | 0.75 | 1.1 | 3 | 3 | 4 | |
Dimension | mm | 4461x3050 x5225 | 4951x3650 x6225 | 8765x6436 x9540 | 9645x3736 x9700 | 10720x3870 x10726 | |
Total weight | kg | 4000 | 5500 | 8700 | 11300 | 15000 | |
Discharging height | mm | 1500/2700/3800 | 1500/2700/3800 | 2700/3800 | 3800 | 3800 |
Pre-Sales Service
* Inquiry and consulting support.
* According to your inquiry, We will reply to you in 24 hours.
* Sample testing support.
* View our Factory.
After-sales Service
* Video technical support
* Field installation, commissioning and training
* Field maintenance and repair service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
