Specifications
Brand Name :
DASION
Model Number :
JZC350
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50 sets per month
Delivery Time :
10-15 working days
Packaging Details :
1X20GP for 1 set mobile portable concrete mixer
Product name :
Hopper Lift Mobile Small Portable 350L Homemade Hydraulic Cement Mixer For Building
Discharging volume :
350L
Charging volume :
560L
Capacity :
10~14m3/h
Drum rotating-speed :
14r/min
Max. aggregate size :
60mm
Mixing motor :
5.5kw
Hoisting Motor :
4.5kw
Weight :
1650kg
Description

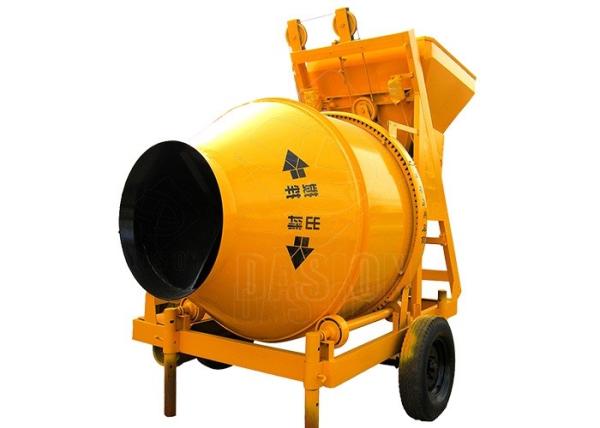

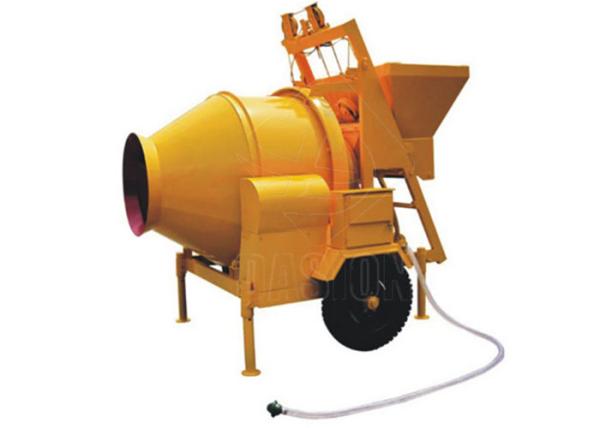

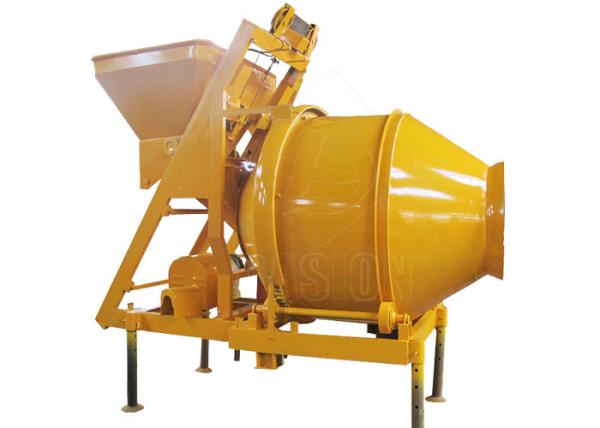

Hopper Lift Mobile Small Portable 350L Homemade Hydraulic Cement Mixer For Building

Introduction

JZC series Concrete mixers adopt Rubber Friction-tape which transfer the powder from electric motors to mixing drum belt for rotating and are driven by electric motors, which clockwise rotating for concrete mixing, and anti-clockwise rotating for concrete discharging,and can mix plastic and semi-hard concrete.

Features

1. Floor-type bipyramid reversal discharging mixer machine, used to mix the plastic and half-dry hard concrete.

2. It has reasonable structure, high production efficiency, good mixing quality and beautiful sculpt and low noise.

3. Entrusted with rubber friction wheel drive, with low noise, smooth operation, easy to move.

4. The concrete mixer is to mix when turning clockwise, and discharge when turning anticlockwise and can mix plastic and semi-stiff-consistency concrete.

Parameters

Model JZC300 JZC350 JZC450 JZC500 JZM500
Discharging volume 300L(0.3m3) 350L(0.35m3) 450L(0.45m3) 500L(0.5m3) 500L(0.5m3)
Charging volume 480L 560L 720L 800L 800L
Capacity 6-8m3/h 10~14m3/h 16-18m3/h 18-20m3/h 18-20m3/h
Drum rotating-speed 17r/min 14r/min 13r/min 13r/min 13r/min
Max. aggregate size 60mm 60mm 60-80mm 60-80mm 60-80mm
Water feeding precision ≤2% 2% ≤2% ≤2% ≤2%
Mixing motor 4kw 5.5kw 11kw 11kw dual-5.5kw
Hoisting Motor 3kw 4.5kw 5.5kw 5.5kw 5.5kw
Water pump motor 0.55kw 0.55kw 0.75kw 0.75kw 0.75kw
Tyre spec. 6.50-16 6.50-16 7.50-16 7.50-16 7.50-16
Max. dragging speed 20 km/h 20 km/h 20 km/h 0 km/h 20 km/h
Outline Dimension

2260x1990x

2750mm

2766x2140x

3000mm

5226x2200x

3100mm

3116x2050x

4060mm

5800x2200x

3100mm

Weight 1200kg 1650kg 1900kg 1950kg 2800kg
Color Yellow, red, green, blue, or customers' request

Application

JZC series Concrete mixers are adaptable for architectural building site, civil engineer, and bridge project, small and medium concrete plant. And they are also applicable to the small construction project, used for the variety of concrete production, mortar and grout, roads and hydro power projects, especially for urban residential areas and construction.

Our Service

1.According to your inquiry, We will reply to you in 24 hours.

2.Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.

3.Warranty period 12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.

4.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.

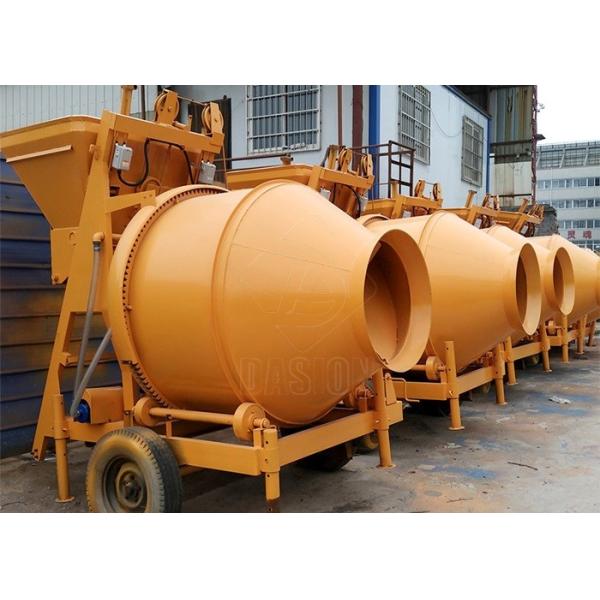

Small Portable 350L Hydraulic Concrete Mixing Equipment Hopper Lift For Building
