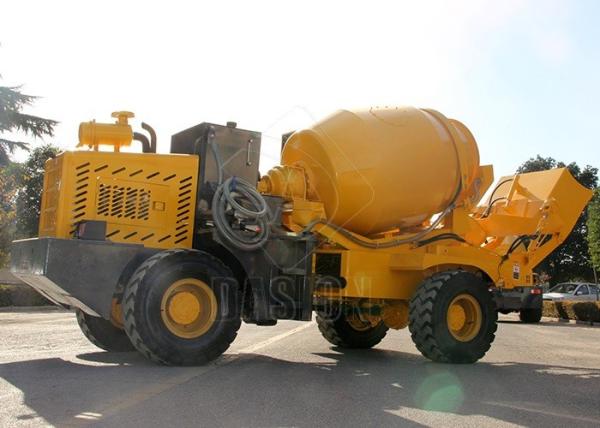

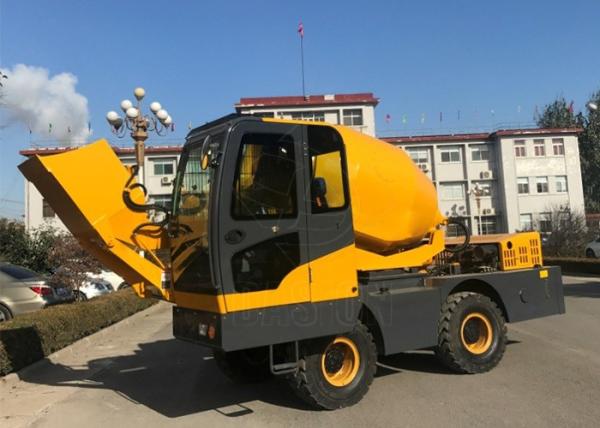

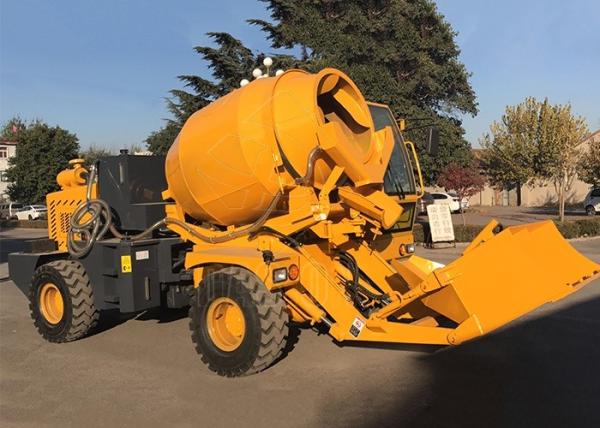

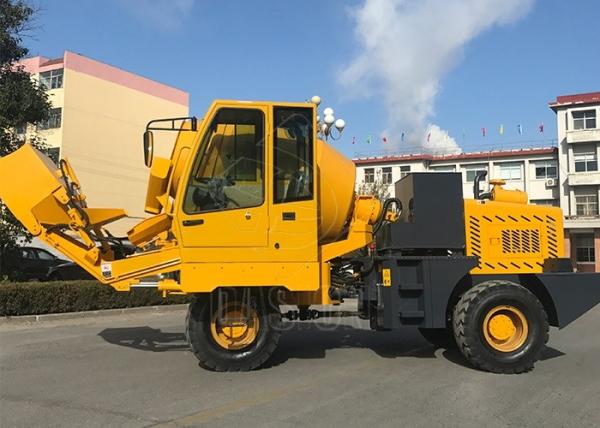

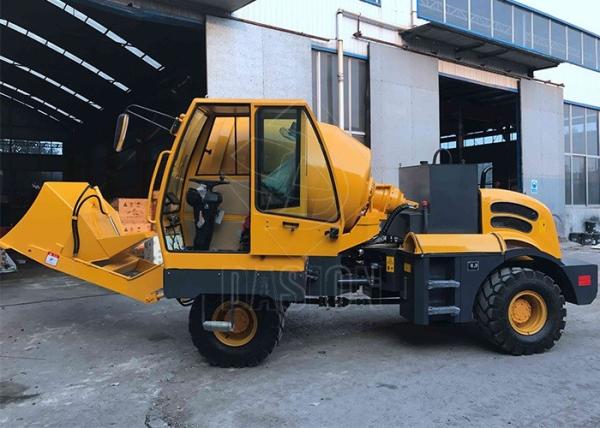

Volumetric Mobile Small Self Loading Concrete Mixer Truck Right Hand Drive Type
Volumetric Mobile Small Self Loading Concrete Mixer Truck Right Hand Drive Type
Volumetric Mobile Small Self Loading Concrete Mixer Truck Right Hand Drive Type
Volumetric Mobile Small Self Loading Concrete Mixer Truck Right Hand Drive Type
Volumetric Mobile Small Self Loading Concrete Mixer Truck Right Hand Drive Type
Volumetric Mobile Small Self Loading Concrete Mixer Truck Right Hand Drive Type
Volumetric Mobile Small Self Loading Concrete Mixer Truck Right Hand Drive Type
Volumetric Mobile Small Self Loading Concrete Mixer Truck Right Hand Drive Type
Volumetric Mobile Small Self Loading Concrete Mixer Truck Right Hand Drive Type
Volumetric Mobile Small Self Loading Concrete Mixer Truck Right Hand Drive Type
Volumetric Mobile Small Self Loading Concrete Mixer Truck Right Hand Drive Type
Volumetric Mobile Small Self Loading Concrete Mixer Truck Right Hand Drive Type
Specifications
Brand Name :
DASION
Model Number :
DS2.5
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 sets per month
Delivery Time :
10-15 working days
Packaging Details :
Neutral factory box
Product name :
Brand new right hand drive volumetric mobile self loader small concrete mixer truck
Drum capacity :
4650L
Discharging capacity :
2500L
Discharge angle :
270°
Water sysytem :
Self-priming
Max. pressure :
16MPa
Speed :
Low: 0-7.0km/h; High: 7-20km/h
Weight :
13340kg
Dimension :
7600x2990x2350mm
Description

Brand new right hand drive volumetric mobile self loader small concrete mixer truck

Brief Introduction:

Self loading concrete mixer truck have SIX functions as feeding, metering, mixing, discharging, moving and cleaning in one vehicle. ONE OPERATOR drive ONE TRUCK can make the concrete production, transportation and site construction work in ONE PROJECT. It reduces the production time and cost, greatly improves the efficiency of concrete requirement in construction site.

Advantages:

  • The vehicle size is small, which is suitable for limited site and widely used in new rural construction, urban construction, tunnel, airport, seaport, high-speed rail site, remote areas where there are no electric power, middle projects, farmer's houses, building, country road, irrigation, reservoir, mine, rural bridges, high-way road etc, which characterized in saving labors, high efficiency concrete output.
  • High strength steel plate, which enhances the load capacity and high stability of vehicle.
  • The material of rolling ring and mixing drum adopts 16mn high strength steel which uses forging normalizing manufacturing process.
  • Mixing blade is designed with varying pitching angles, which simplifies the feeding device, ensures the speed faster and mixing performance better.

Volumetric Mobile Small Self Loading Concrete Mixer Truck Right Hand Drive Type

Parameters:

Specification
Item DS2.5 DS1.5 DS1.5F
Mixing System Drum capacity 4650L 2900L 2900L
Discharging capacity 2500L 1500L 1500L
Discharge angle 270° 270° --
Water sysytem Self-priming Self-priming Self-priming
Diesel engine Total displacement 4330cc 3850cc 3850cc
Max. power 85Kw(116Hp) 78Kw(106Hp) 78Kw(106Hp)
STEERING Articulated Steering Articulated Steering --
Hydraulic system Max. pressure 16MPa 16MPa 16MPa
Speed 2 forward gears
(Slow/High)		 0 - 7.0 Km/h 0 - 7.0 Km/h 0 - 7.0 Km/h
7-20 Km/h 7-20 Km/h 7-20 Km/h
2 reverse gears 0 - 7.0 Km/h 0 - 7.0 Km/h 0 - 7.0 Km/h
7 - 20 Km/h 7 - 20 Km/h 7 - 20 Km/h
Feature Auto adding Lubricating Oil system Self Propelled Concrete Mixing System Self Propelled Concrete Mixing System
Hydraulic 280 integral torque converter Hydraulic 265 torque converter Hydraulic 265 torque converter
Equipped with driving image
Tire 16-70-20 20.5-16 20.5-16
Max gross weight 13340kg 8700kg 8700kg
Dimensions 7600 × 2990 × 2350 mm 6030 × 2240 × 2750 mm 6030 × 2240 × 2750 mm

Details:
Volumetric Mobile Small Self Loading Concrete Mixer Truck Right Hand Drive Type

Volumetric Mobile Small Self Loading Concrete Mixer Truck Right Hand Drive Type

FAQ

Q1. What is the machine advantage? Why I choose from you?
A: Adopting famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers. Each machine is carefully tested before send to customer.


Q2: How many units can be put in container?
2 units can be in a 40HQ container. None packing,and will fixed with wire ropes.

Q3: What payment term can I use?

100% TT--30% TT in advance; the balance before shipment

100% irrevocable LC at sight.
