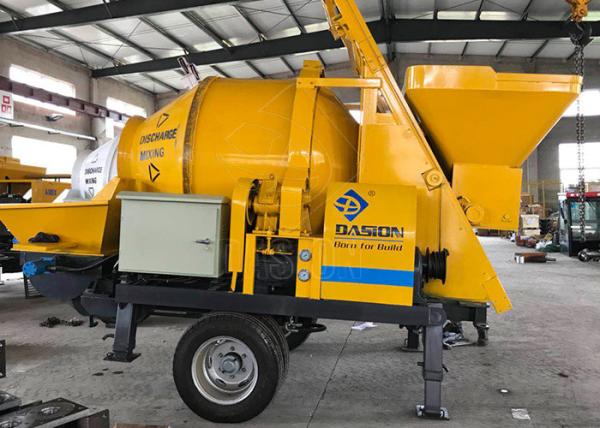

High Pressure Electric Concrete Mixer Pump Machine Skid Steer Forced JBT30 Model
High Pressure Electric Concrete Mixer Pump Machine Skid Steer Forced JBT30 Model
High Pressure Electric Concrete Mixer Pump Machine Skid Steer Forced JBT30 Model
High Pressure Electric Concrete Mixer Pump Machine Skid Steer Forced JBT30 Model
High Pressure Electric Concrete Mixer Pump Machine Skid Steer Forced JBT30 Model
High Pressure Electric Concrete Mixer Pump Machine Skid Steer Forced JBT30 Model
High Pressure Electric Concrete Mixer Pump Machine Skid Steer Forced JBT30 Model
High Pressure Electric Concrete Mixer Pump Machine Skid Steer Forced JBT30 Model
High Pressure Electric Concrete Mixer Pump Machine Skid Steer Forced JBT30 Model
High Pressure Electric Concrete Mixer Pump Machine Skid Steer Forced JBT30 Model
High Pressure Electric Concrete Mixer Pump Machine Skid Steer Forced JBT30 Model
High Pressure Electric Concrete Mixer Pump Machine Skid Steer Forced JBT30 Model
Specifications
Brand Name :
DASION
Model Number :
JBT30
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
10-15 working days
Packaging Details :
1x40HQ for 1set electric concrete mixer with pump
Product name :
High pressure electric skid steer forced jbt30 mobile concrete mixer pump machine
Capacity :
30m3/h
Pumping pressure :
9Mpa
Max. conveyor height :
140m
Max. distance :
350m
Motor power :
37kw
Max. aggregate size :
20/30mm
Mixer loading capacity :
560L
Mixer unloading capacity :
350L
Weight :
3300ks
Dimension :
4270x2350 x2980mm
Description

High pressure electric skid steer forced jbt30 mobile concrete mixer pump machine

Introduction Of Concrete Mixer Pump:

JBT concrete mixer pump combines the functions of concrete mixing and conveying. Be movable with types from one construction site to another. Pump not only large size aggregate concrete, but also fine stone concrete or mortar. Be suitable for the small and middle-scale road and house projects. It can also work in the power shortage areas by equipped with generator set.


Advantages Of Concrete Mixer Pump:

  • Perfect combining concrete mixing with conveying in one machine.
  • Diesel concrete mixer pump and electrical concrete mixer pump are available.
  • Concrete pump is engineered with latest differential pressure induction control technology.
  • Hydraulic double-cylinder piston system, more stable concrete flowing and pumping.
  • Simplified working procedure, improved working efficiency.
  • Mortar stop pressure relief valve, pumping cleaning ball washing, more secure and faster cleaning operation.
  • Advanced hydraulic system.
  • Adaptive gear adjustment technology, smart matching of operating conditions.
  • Automatic and intensive lubrication system ensures effective lubrication during the operation.
  • Improved hopper, high efficiency.
  • Powerful mixing ability.
  • High reliability and wear resistance components, imported brand main hydraulic components.
  • SYMC intelligent controller, high-speed and reliable operation.
  • More reliable redundant control design.
  • Compact structure, flexible to operate.
  • Longer serve life.
  • Competitive factory price.

Application Of Concrete Mixer Pump:

  1. Housing construction
  2. Tunnel bridge
  3. Hydraulic engineering construction
  4. Small and middle scale road project
  5. Factory floor
  6. Railway bridge

Product Parameters:

Items Units JBT30 JBT40 DJBT30 DJBT40

Transfer

Pump

 Max. theoretical output m3/h 30 40 30 40
Max. pumping pressure MPa 9 10 10 10
Max. conveyor height m 140 160 140 160
Max. distance m 350 500 350 500
Power type Motor Motor Diesel Diesel
Motor power kw 37 45 62 82
Distribution cylinder The S tube placed valve
Main oil pump capacity ml/min 71 112 71 112
Main oil cylinder diameter mm 80x845 100x1000 80x845 100x1000
Hopper capacity L 550 550 550 550
Max. aggregate diameter mm 20/30 30/40 20/30 30/40

Concrete

Mixer

 Loading capacity L 560 720 560 720
Unloading capacity L 350 450 350 450
Mixing motor kw 5.5x2 5.5x2 / /
Hoisting motor kw 4.5 4.5 / /
Total Dimension mm 4270x2350x2980 4800x2200x280 4800x2200x280 6000x2200x2800
Weight kg 3300 5000 5500 6000

Product Details Show:

High Pressure Electric Concrete Mixer Pump Machine Skid Steer Forced JBT30 Model

Production Process

High Pressure Electric Concrete Mixer Pump Machine Skid Steer Forced JBT30 Model
