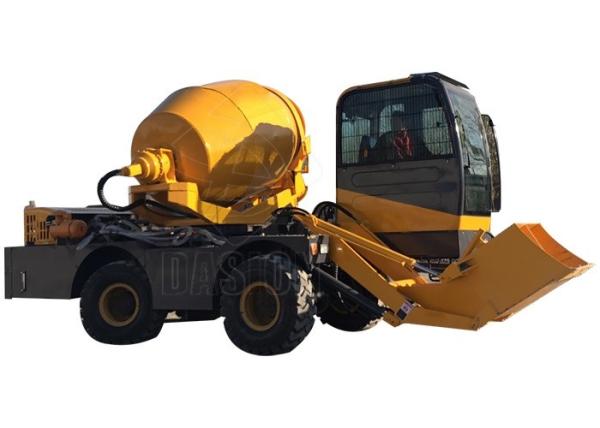

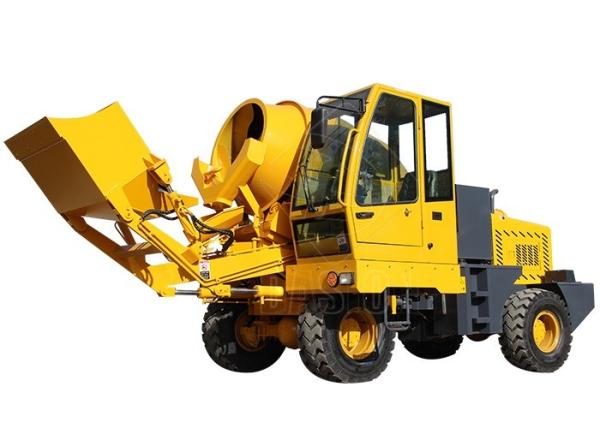

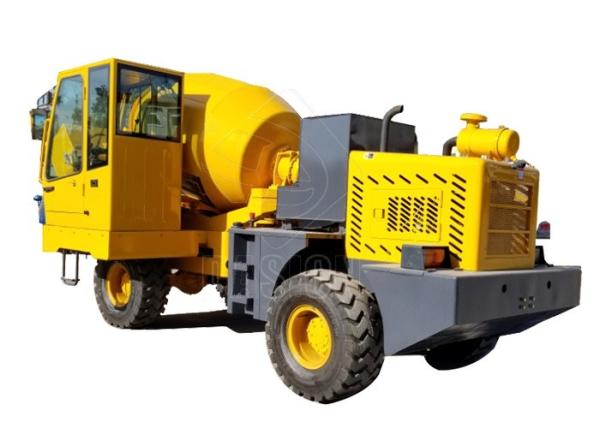

Front Discharge Mobile Self Loading Concrete Mixer Hydraulic System Heavy Duty
Front Discharge Mobile Self Loading Concrete Mixer Hydraulic System Heavy Duty
Front Discharge Mobile Self Loading Concrete Mixer Hydraulic System Heavy Duty
Front Discharge Mobile Self Loading Concrete Mixer Hydraulic System Heavy Duty
Front Discharge Mobile Self Loading Concrete Mixer Hydraulic System Heavy Duty
Front Discharge Mobile Self Loading Concrete Mixer Hydraulic System Heavy Duty
Front Discharge Mobile Self Loading Concrete Mixer Hydraulic System Heavy Duty
Front Discharge Mobile Self Loading Concrete Mixer Hydraulic System Heavy Duty
Specifications
Brand Name :
DASION
Model Number :
DS2.5
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per month
Delivery Time :
10-15 working days
Packaging Details :
Neutral factory box
Product name :
Hydraulic system heavy duty front discharge mobile concrete transit self loading mixer truck
Drum capacity :
4650L
Discharging capacity :
2500L
Discharge angle :
270°
Water sysytem :
Self-priming
Max. pressure :
16MPa
Speed :
Low: 0-7.0km/h; High: 7-20km/h
Weight :
13340kg
Dimension :
7600x2990x2350mm
Description

Hydraulic system heavy duty front discharge mobile concrete transit self loading mixer truck

Brief Introduction:

Self-loading concrete cement mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site.

Main Features:

1. Shot blasting machine
When the elements are moved in to the machine, thousands of the little steel balls will heat on the surface of elements. Then the surface will become uneven, and it will increase the adhesive force. So it will ensure good painting.


2. Robot welding
Advanced technology of welding robots, which ensures high working efficiency and high accuracy.


3. Closed painting room
In order to assure good painting and environmental protection, here is closed painting room. The machine will be shinning even after long time use. Moreover, we can also meet the environmental standards, so that we can manufacturer and delivery the equipment for our customers on time.


4. Sufficient elements stored
Here are sufficient elements stored in our factory, which ensures short delivery time. Meanwhile, we have ability to accept big orders from our customers.


5. Strict quality inspection
Quality inspection department, and strict inspection guarantees that the unqualitified equipment will be reworked and will not be delierevd to our customers.

Advantages:

1) Saving time and labor.

2) Saving concrete transporting cost.

3) Mobile and highly motorized on site, more efficient.

4) Low maintenance cost.

5) High reliable and durable.

6) Easy operation and high intelligent.

7) Closed circuit hydraulic system, more powerful and reliable..

Parameters of Self Loading Mixer Truck:

Item Specification
DS2.5 DS1.5 DS1.5F
Mixing System Drum capacity 4650L 2900L 2900L
Discharging capacity 2500L 1500L 1500L
Discharge angle 270° 270° --
Water sysytem Self-priming Self-priming Self-priming
Diesel engine Total displacement 4330cc 3850cc 3850cc
Max. power 85Kw(116Hp) 78Kw(106Hp) 78Kw(106Hp)
STEERING Articulated Steering Articulated Steering --
Hydraulic system Max. pressure 16MPa 16MPa 16MPa
Speed 2 forward gears
(Slow/High)		 0 - 7.0 Km/h 0 - 7.0 Km/h 0 - 7.0 Km/h
7-20 Km/h 7-20 Km/h 7-20 Km/h
2 reverse gears 0 - 7.0 Km/h 0 - 7.0 Km/h 0 - 7.0 Km/h
7 - 20 Km/h 7 - 20 Km/h 7 - 20 Km/h
Feature Auto adding Lubricating Oil system Self Propelled Concrete Mixing System Self Propelled Concrete Mixing System
Hydraulic 280 integral torque converter Hydraulic 265 torque converter Hydraulic 265 torque converter
Equipped with driving image
Tire 16-70-20 20.5-16 20.5-16
Max gross weight 13340kg 8700kg 8700kg
Dimensions 7600 × 2990 × 2350 mm 6030 × 2240 × 2750 mm 6030 × 2240 × 2750 mm

Front Discharge Mobile Self Loading Concrete Mixer Hydraulic System Heavy Duty

Front Discharge Mobile Self Loading Concrete Mixer Hydraulic System Heavy Duty
