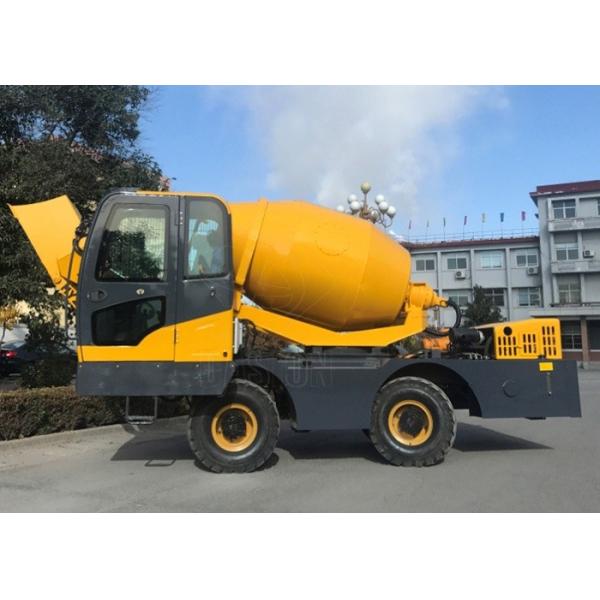

Self Loading Mobile Concrete Mixer Ready Mix On Site Concrete Mixer Truck
Self Loading Mobile Concrete Mixer Ready Mix On Site Concrete Mixer Truck
Self Loading Mobile Concrete Mixer Ready Mix On Site Concrete Mixer Truck
Self Loading Mobile Concrete Mixer Ready Mix On Site Concrete Mixer Truck
Self Loading Mobile Concrete Mixer Ready Mix On Site Concrete Mixer Truck
Self Loading Mobile Concrete Mixer Ready Mix On Site Concrete Mixer Truck
Self Loading Mobile Concrete Mixer Ready Mix On Site Concrete Mixer Truck
Self Loading Mobile Concrete Mixer Ready Mix On Site Concrete Mixer Truck
Self Loading Mobile Concrete Mixer Ready Mix On Site Concrete Mixer Truck
Self Loading Mobile Concrete Mixer Ready Mix On Site Concrete Mixer Truck
Self Loading Mobile Concrete Mixer Ready Mix On Site Concrete Mixer Truck
Self Loading Mobile Concrete Mixer Ready Mix On Site Concrete Mixer Truck
Specifications
Brand Name :
DASION
Model Number :
DS1.5
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100 sets per month
Delivery Time :
10-15 working days
Packaging Details :
Neutral factory box
Product name :
1.5m3 capacity small self loader portable mobile ready mix on site concrete trucks
Drum capacity :
2900L
Discharging capacity :
1500L
Discharge angle :
270°
Water sysytem :
Self-priming
Max. pressure :
16MPa
Speed :
Low: 0-7.0km/h; High: 7-20km/h
Weight :
8700kg
Dimension :
6030x 2240x2750mm
Description

1.5m3 capacity small self loader portable mobile ready mix on site concrete trucks

Brief Introduction:

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.

Advantages:

1. Engine-engine using well-known brands, strong power, promote faster, more economical and fuel-efficient, environmentally friendly and pollution-free.


2. The cab-good sound insulation, the overall stronger, safer, and fans can be modified according to customer needs in the cab air conditioning, give the operator a comfortable environment.

3. Transmission-torque, climbing fast, international quality, high quality and easy operation.


4. Braking system the braking system is very important, so for parts of the brake system is very strict, parts procurement and ensure quality.

5. Adopt the pressure water supply method, simplify the structure saving power, reduce the vehicle quality; The canister structure, double helix curved surface blade, USES different blades in different cone segments, improves the quality of concrete mixing, and reduces the residual amount.

Parameters:

Specification
Item DS2.5 DS1.5 DS1.5F
Mixing System Drum capacity 4650L 2900L 2900L
Discharging capacity 2500L 1500L 1500L
Discharge angle 270° 270° --
Water sysytem Self-priming Self-priming Self-priming
Diesel engine Total displacement 4330cc 3850cc 3850cc
Max. power 85Kw(116Hp) 78Kw(106Hp) 78Kw(106Hp)
STEERING Articulated Steering Articulated Steering --
Hydraulic system Max. pressure 16MPa 16MPa 16MPa
Speed 2 forward gears
(Slow/High)		 0 - 7.0 Km/h 0 - 7.0 Km/h 0 - 7.0 Km/h
7-20 Km/h 7-20 Km/h 7-20 Km/h
2 reverse gears 0 - 7.0 Km/h 0 - 7.0 Km/h 0 - 7.0 Km/h
7 - 20 Km/h 7 - 20 Km/h 7 - 20 Km/h
Feature Auto adding Lubricating Oil system Self Propelled Concrete Mixing System Self Propelled Concrete Mixing System
Hydraulic 280 integral torque converter Hydraulic 265 torque converter Hydraulic 265 torque converter
Equipped with driving image
Tire 16-70-20 20.5-16 20.5-16
Max gross weight 13340kg 8700kg 8700kg
Dimensions 7600 × 2990 × 2350 mm 6030 × 2240 × 2750 mm 6030 × 2240 × 2750 mm
