Twin Shaft Concrete Mixer Machine Dual Motor Single Axle Low Energy Consumption
Twin Shaft Concrete Mixer Machine Dual Motor Single Axle Low Energy Consumption
Twin Shaft Concrete Mixer Machine Dual Motor Single Axle Low Energy Consumption
Twin Shaft Concrete Mixer Machine Dual Motor Single Axle Low Energy Consumption
Twin Shaft Concrete Mixer Machine Dual Motor Single Axle Low Energy Consumption
Twin Shaft Concrete Mixer Machine Dual Motor Single Axle Low Energy Consumption
Twin Shaft Concrete Mixer Machine Dual Motor Single Axle Low Energy Consumption
Twin Shaft Concrete Mixer Machine Dual Motor Single Axle Low Energy Consumption
Specifications
Brand Name :
DASION
Model Number :
JS500
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per months
Delivery Time :
10-15 working days
Packaging Details :
1x20GP for 1 set js500 twin shaft concrete mixer
Product name :
Twin Shaft Dual-motor Single Axle Lightburn Cement Parts Used Manual Concrete Mixer Machine
Discharging capacity :
500L
Charging capacity :
800L
Max. aggregate size :
80/60mm
Mixing motor power :
18.5kw
Hoist motor power :
5.5kw
Pump motor power :
0.75kw
Total weight :
4000kg
Productivity :
25m3/h
Description

Twin Shaft Dual-motor Single Axle Lightburn Cement Parts Used Manual Concrete Mixer Machine

Description of JS500 Concrete Mixer:

1.Hopper lift twin shaft concrete mixer is based on years of experience in the industry, learning Italian and German advanced technology, and has a stable operation, low noise, good mixing quality, high production efficiency, simple operation and convenient maintenance.

2. JS500 pneumatic discharge concrete mixing has the advantages of low energy consumption, long life and low cost of use. can be used alone or as a supporting host for concrete mixing stations.

3.Stationary type electrical 500L double shaft concrete mixer is suitable for roads, railways, bridges, water conservancy and hydropower, prefabricated fields.

4. In order to ensure the mixing quality of concrete, js500 pneumatic discharge concrete mixer is required to mix concrete mixture evenly, mixing time is short, unloading is fast, residue is small, energy consumption and pollution is low.

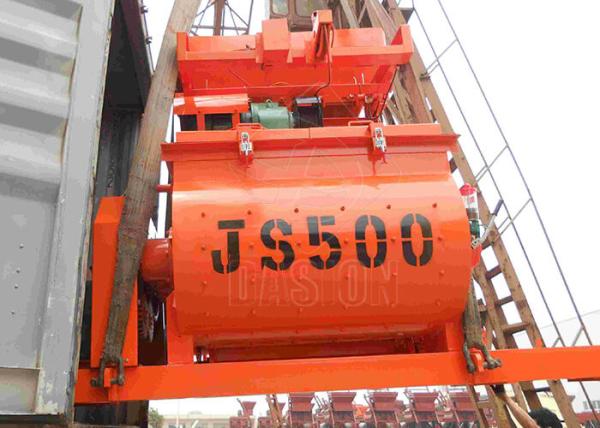

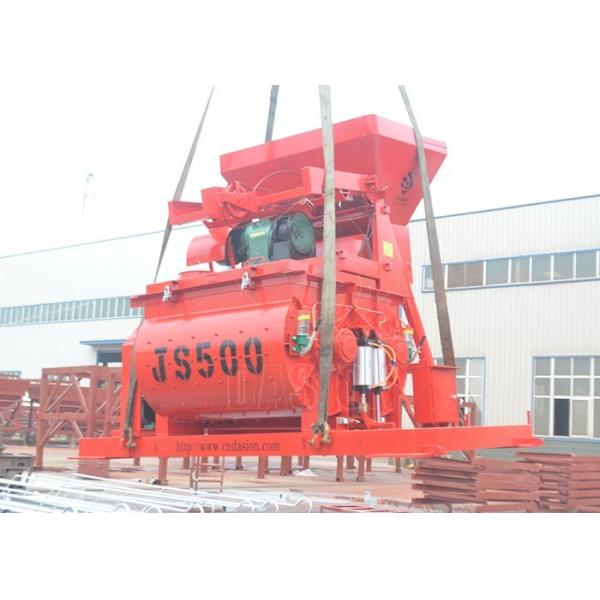

Pictures of JS500 Concrete Mixer:

Twin Shaft Concrete Mixer Machine Dual Motor Single Axle Low Energy ConsumptionTwin Shaft Concrete Mixer Machine Dual Motor Single Axle Low Energy Consumption

Details of JS500 Concrete Mixer:
Twin Shaft Concrete Mixer Machine Dual Motor Single Axle Low Energy Consumption

1. Mixing Blades

The industrial twin-shaft concrete mixer adopts the design of closed shaft end device, which can effectively prevent the phenomenon of slurry leakage.

2. Mixing Arms

The pneumatic discharge concrete mixer is equipped with this product adopts DASION multiple shaft-end seal technology and has stable performance.

3. Automatic Lubrication System

The bucket type concrete mixer is equipped with this product adopts 380V powderful motor can quickly head lube oil to axle oil note.

4. Lift Bucket

The JS500 concrete mixer is equipped with this product adopts transport aggregate safety and stability, improve the quality of barrels.

Parameters of JS series Concrete Mixer:

Model Unit JS500 JS750 YJS1000 JS2000
Mixer Capacity m3/h 25 35 50 100
Discharging capacity L 500 750 1000 2000
Charging capacity L 800 1200 1600 3000
Max. aggregate size mm 80/60 80/60 80/60 80/60
Mixing circle s 72 72 72 60
Mixing blade Rational speed r/min 35 31 25.5 23
Quantity pcs 2x7 2x7 2x7 2x9
Mixing motor power kw 18.5 30 37 75
Hoist motor power kw 5.5 7.5 18 22
Pump motor power kw 0.75 1.1 3 4
Dimension mm

4461x3050x52

25

4951x3650x62

25

8765x6436x95

40

10720x3870x10

726
Total weight kg 4000 5500 8700 15000
Discharging height mm 1500/2700/3800 1500/2700/3800 2700/3800 3800

FAQ:

Q1: What kind of products do you have?

1. Concrete mixer machine with electric motor and diesel engine.

2. Stationary concrete mixing plant and Mobile concrete mixing plant.

3. Spare parts including screw conveyor and bolted cement silo.

4. Rebar processing machinery, such as rebar bending machine, rebar cutting machine, rebar staightening machine.

5. Concrete vibrators.

Q2: ow about your technological support?

1. We own a team of engineers majoring in concrete mixing machines with more than ten years’ experience.

2. In recent years, the company cooperates with some domestic and foreign well-known manufacturers, universities and design institutes. What’s more, it has developed some products with core competence.

3. We could do personal design for clients as their production demand and their condition.

Q3: How long is the quality guarantee period?

Our quality guarantee period is 12 months.
