Industrial Commercial Concrete Mixer Machine 500L Ready Mix Automatic Small Concrete Mixer
Industrial Commercial Concrete Mixer Machine 500L Ready Mix Automatic Small Concrete Mixer
Industrial Commercial Concrete Mixer Machine 500L Ready Mix Automatic Small Concrete Mixer
Industrial Commercial Concrete Mixer Machine 500L Ready Mix Automatic Small Concrete Mixer
Industrial Commercial Concrete Mixer Machine 500L Ready Mix Automatic Small Concrete Mixer
Industrial Commercial Concrete Mixer Machine 500L Ready Mix Automatic Small Concrete Mixer
Industrial Commercial Concrete Mixer Machine 500L Ready Mix Automatic Small Concrete Mixer
Industrial Commercial Concrete Mixer Machine 500L Ready Mix Automatic Small Concrete Mixer
Specifications
Brand Name :
DASION
Model Number :
JS500
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per months
Delivery Time :
10-15 working days
Packaging Details :
1x20GP for 1 set js500 twin shaft concrete mixer
Product name :
Industrial commercial cement mixture 500L ready mix automatic small concrete mixer
Productivity :
25m3/h
Discharging capacity :
500L
Charging capacity :
800L
Max. aggregate size :
80/60mm
Mixing motor power :
18.5kw
Hoist motor power :
5.5kw
Pump motor power :
0.75kw
Total weight :
4000kg
Description

Industrial commercial cement mixture 500L ready mix automatic small concrete mixer

1. Main Specifications:

Model Unit JS500 JS750 JS1500 YJS1000
Capacity m3/h 25 35 75 50
Discharging capacity L 500 750 1500 1000
Charging capacity L 800 1200 2400 1500
Max. aggregate size mm 80/60 80/60 80/60 80/100
Mixing circle s 72 72 72 ≤60s
Mixing blade Rational speed r/min 35 31 25.5 25.5
Quantity pcs 2x7 2x7 2X8 2x7
Mixing motor power kw 18.5 30 22X2 18.5x2
Hoist motor power kw 5.5 7.5 18.5 /
Pump motor power kw 0.75 1.1 3 /
Dimension mm

4461x3050x52

25

4951x3650x62

25

9645x3736x97

00

 2810×3200
×1920
Total weight kg 4000 5500 11300 5200
Discharging height mm 1500/2700/3800 1500/2700/3800 3800 2700/3800
Color Red, Yellow, White Or Customers' request

2. Introduction

  • JS series of small concrete mixer can work independently or be combined with PLD series batching machine, so it applies to large, middle and small scale of prefabricated factory as well as industrial and Civil Construction like highway, railway, bridge, irrigation works, port and so on.
  • With a high efficiency, this machine can be applied to all kinds of materials, such as harsh concrete, plastic concrete, lightweight aggregate concrete and others.
  • With reasonable structure, economical layout and easy operation and maintenance, we can design according to customers’ requirements .
  • This concrete mixer machine adopts high hardness and wear-resistant alloy cast iron for the scale board and mixing blade, so the whole machine has a long life.

3. Main Features

  • Easy to install and move.
  • Fully automatic operation.
  • Low price and golden service.
  • Short mixing time, good homogeneity.
  • The shaft tip is sealed by floating-ring, which is reliable and easy to maintain and replace.
  • Alloys and thicken plates and high abrasion proof mixing blade. High-chromium and high-molybdenum scale boards and stirring pieces.
  • Can mix hard concrete, plastic concrete, flowing concrete, light weight aggregate concrete.
  • The mixing time is short, the uniformity is good, and the operation is reliable.

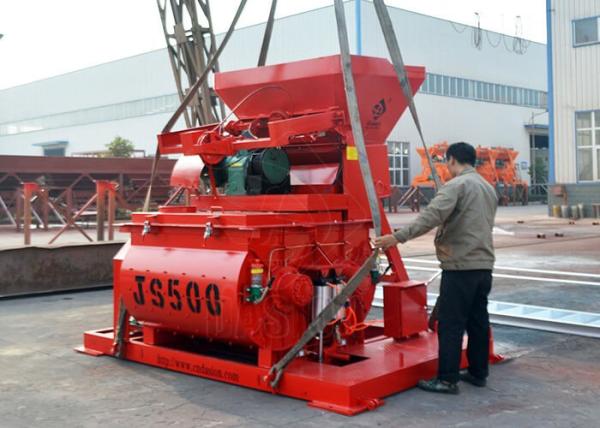

4. Detail Photos

Industrial Commercial Concrete Mixer Machine 500L Ready Mix Automatic Small Concrete Mixer

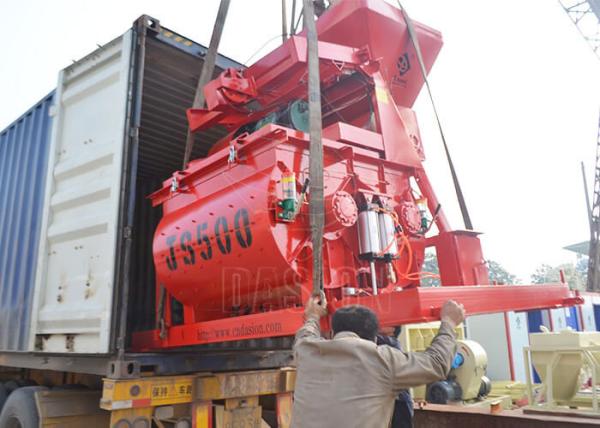

4. Delivery Case

Industrial Commercial Concrete Mixer Machine 500L Ready Mix Automatic Small Concrete Mixer

5. Our Service

1.Pre-sale services:
We guide customers to choose the best applicable device type and provide the advanced, energy-saving and practical technological process, and also we are responsible for the site planning and design.


2.On-sale services:
Products must be inspected strictly before sell, customers are invited to simulate and test machine on-the -spot and raise objections. We will organize delivery according to the clauses stipulated in the contract.


3.After-sale services:
Our company will send professional engineers to guide installation, debugging and training operators until customers are fully satisfied. Moreover, we can design and manufacture products according to customers’ specific needs.
