Product Introduction

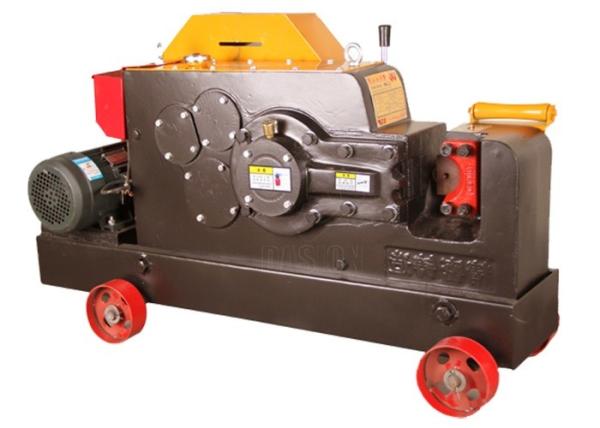

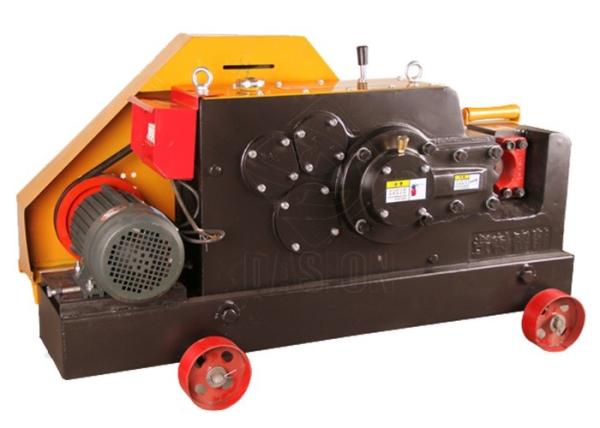

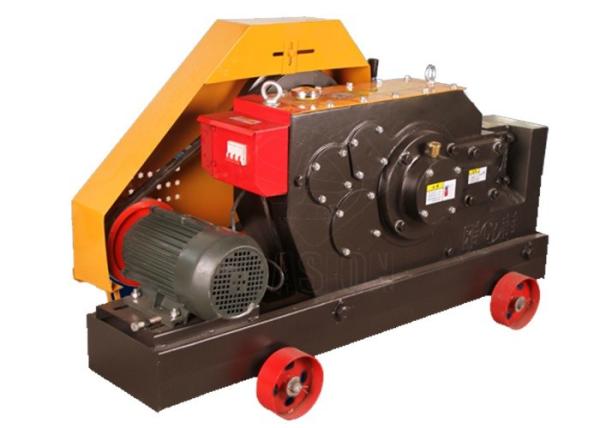

1. Rebar Cutting Machine Usage:

• Cut all steel material, like ordinary carbon steel, cold & hot round steel, screwed thread steel, flat/angle/square/scrap/deformed steel.

2. Scope of Application:

• Applicable site:prefabrication factories, construction sites,rebar yard, steel distribution center
• Objects: wire rod, round steel, screwed steel, etc.
• Rebar Shears,Metal Shear Machine(GQ40) is a kind of highly effective equipment,newly designed and produced by our company according to market requirements.

3. Rebar Cutting Machine Features:

• Reinforced fuselage.small size,compact structure,solid fuselage.With scrollable casters it can be moved easily and flexibility.
• Good lubricating properties. The rebar cutter machine adopts full close structure and lubricates by using gears splash.It can operate more than three months continually if it is added oil(8-10kg) at a time.
• Little power loss. For lubrication conditions improving,gear-side uses rolling bearing,the resistance is small,compared with the similar cutting machine with load power can reduce by one third.
• Long service. The rebar cutter adopts the high steel knife block,connecting rod,high-speed international standard motor, its quality is more stable and it will last longer.

4. Rebar Cutting Machine Parameters:

Item	Rebar Cutting Machine	Bending Ability	Cutting Speed	Motor Power	Weight	Dimension
1	GQ40	Round steel bar≤40mm; Class-III rebar:≤28mm	32t/min	3kw	320kg	135x44x74cm
2	GQ40B	Round steel bar≤40mm; Class-III rebar:≤32mm	32t/min	3kw	330kg	136x45x74cm
3	GQ45	Round steel bar≤45mm; Class-III rebar:≤32mm	28t/min	3kw	330kg	133x44x74cm
4	GQ45C(circle-blade cutter)	Round steel bar≤45mm; Class-III rebar:≤32mm	28t/min	3kw	350kg	133x44x74cm
5	GQ45B	Round steel bar≤45mm; Class-III rebar:≤36mm	28t/min	3kw	390kg	140x44x75cm
6	GQ45A(circle-blade cutter)	Round steel bar≤45mm; Class-III rebar:≤40mm	28t/min	3kw	395kg	140x44x75cm
7	GQ50B	Round steel bar≤50mm; Class-III rebar:≤42mm	28t/min	4kw	500kg	143x47x77cm
8	GQ50A(circle-blade cutter)	Round steel bar≤45mm; Class-III rebar:≤42mm	28t/min	4kw	510kg	143x47x77cm

FAQ

Q1: Are you the manufacturer?

A: Yes, we are professional machinery manufacturers. Focus on mechanical production for 20 years.

Q2:Do you accept small order?

A:Yes,We accept small order , the MOQ is 1 set.

Q3:How do I make payment for my order?

A:You make payment by taking the proforma invoice and our bank details,you can use T/T(bank transfer) and L/C to finish the payment.

Q4:What's the warranty time?

A:Our warranty time is 12 months, so you can trust us and the quality of our machine.
