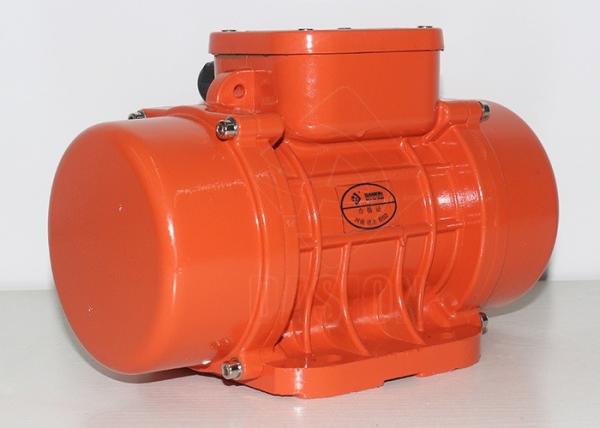

High Frequency Hydraulic Electric Motor Vibrator 0.07kw Convenient Installation
High Frequency Hydraulic Electric Motor Vibrator 0.07kw Convenient Installation
High Frequency Hydraulic Electric Motor Vibrator 0.07kw Convenient Installation
High Frequency Hydraulic Electric Motor Vibrator 0.07kw Convenient Installation
High Frequency Hydraulic Electric Motor Vibrator 0.07kw Convenient Installation
High Frequency Hydraulic Electric Motor Vibrator 0.07kw Convenient Installation
High Frequency Hydraulic Electric Motor Vibrator 0.07kw Convenient Installation
High Frequency Hydraulic Electric Motor Vibrator 0.07kw Convenient Installation
High Frequency Hydraulic Electric Motor Vibrator 0.07kw Convenient Installation
High Frequency Hydraulic Electric Motor Vibrator 0.07kw Convenient Installation
High Frequency Hydraulic Electric Motor Vibrator 0.07kw Convenient Installation
High Frequency Hydraulic Electric Motor Vibrator 0.07kw Convenient Installation
Specifications
Brand Name :
DASION
Model Number :
MV60/3
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
25 set
Price :
EXW USD 37.5-126.5 per set
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
1000 sets per month
Delivery Time :
5-8 working days
Packaging Details :
Wooden cases for electrical motor vibrators
Product name :
Factory price high frequency small hydraulic external kenya concrete vibrator for sale
Force :
0.7KN
Power :
0.07kw
Weight :
4.2kg
Installation size :
62-74mm, 106mm
Color :
Red or your required
Material :
Aluminum shell
Description

Factory price high frequency small hydraulic external kenya concrete vibrator for sale

Product Introduction

The motor vibrator is special asynchronous vibrating source uniting motive power source and vibrating source into once, it and can be used to equip vibrating screen, vibrating feeder ,vibrating conveyor,vibrating ore drawing machine,vibrating shakeout machine , vibrating platform(plain bumper), bulkhead vibration.

Main Features

1. Light machine weigh ,small volume ,easy constrction,convenient installation and repairment

2. Stable frequency ,low noise vibrating generated by stationary revolution ,swift start ,stable stoping

3. Full sealed construction ,applied in any working circumstance which has no explosion-proof requirement

4. Exciting forcecanbe adjusted infinitely.

5. Multiaspect installation for single and multi machines.

How To Choose The Vibrator

1. the power required?

2. The voltage? 50HZ or 60Hz?

3. what's the rated speed?

4. Other special requirement.

Usage

It's application is versatile. such as banking/pouring compaction, out-flowing selection , and shipping/ handing operations in industrial filed.

●Banking/ pouting/ filling: Used in civil engineering, by battery factory, metal plumbery manufacturers, or sand filling/ compaction operation etc.
●Compaction: Used on vibrating rollers, or cement compactiom.
●Outflowing: Used on hoppers in industrial filed.
●Selection: For screening material size.

●Vibrating stand: Used on various vibrating stand to remove the casting stand.
●Shipping/ handling: Used to drive the conveying belt.
●Drying transfer purpose.

High Frequency Hydraulic Electric Motor Vibrator 0.07kw Convenient InstallationHigh Frequency Hydraulic Electric Motor Vibrator 0.07kw Convenient Installation

Product Parameters

No. Model Force(KN) Power(KW) Weight(KG) Installation Size
A B
1 MV40/3 0.3 0.05 4 62-74 106
2 MV60/3 0.7 0.07 4.2 62-74 106
3 MV100/3 1 0.09 4.6 62-74 106
4 MV200/3 2 0.15 6.8 62-74 106
5 MV300/3 3 0.25 9.8 90 125
6 MV400/3 4 0.27 10.3 90 125
7 MV500/3 5 0.5 15.8 105 140
8 MV700/3 7 0.59 16.5 105 140
9 MV800/3 8 0.7 20.6 120 170
10 MV1200/3 10 0.95 21.6 120 170
11 MV1300/3 13 1.3 24.5 120 170
12 MV1600/3 16 1.54 51.6 140 190
13 MV1800/3 18 1.85 52 140 190
14 MV2000/3 20 2.1 51.8 140 190
15 MV2200/3 22 2.4 52.8 140 190
16 MV2300/3 23 2.4 53.6 140 190
17 MV3200/3 32 2.76 96.9 155 255
18 MV4000/3 40 2.9 107 155 255
19 MV5000/3 50 4 112 155 255
52 MV60/3M 0.7 0.08 4.5 62-74 106
53 MV100/3M 1 0.1 5.1 62-74 106
54 MV200/3M 2 0.13 6.8 62-74 106
55 MV50DC-24 0.5 0.1 4.5 62-74 106
56 MV200DC-24 2 0.16 6.5 62-74 106
