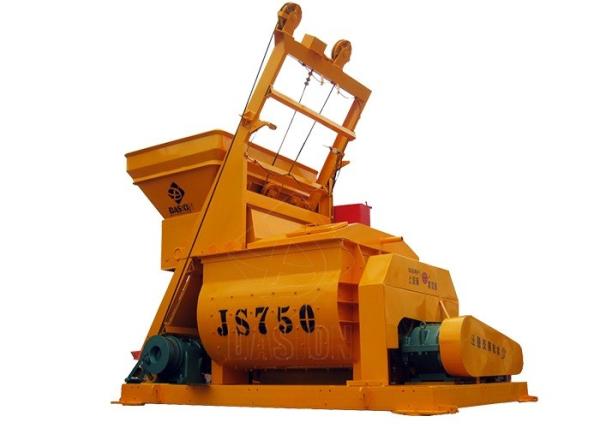

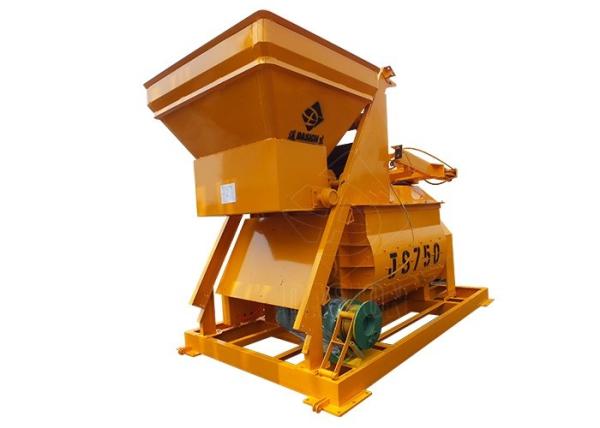

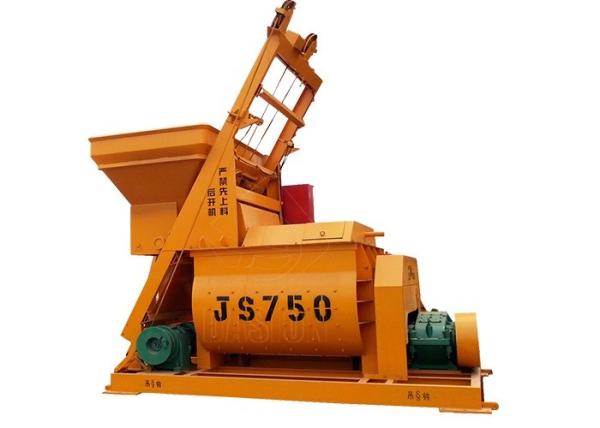

Commercial Twin Shaft Cement Mixer Machine For Ready Mix Concrete Plant
Commercial Twin Shaft Cement Mixer Machine For Ready Mix Concrete Plant
Commercial Twin Shaft Cement Mixer Machine For Ready Mix Concrete Plant
Commercial Twin Shaft Cement Mixer Machine For Ready Mix Concrete Plant
Commercial Twin Shaft Cement Mixer Machine For Ready Mix Concrete Plant
Commercial Twin Shaft Cement Mixer Machine For Ready Mix Concrete Plant
Commercial Twin Shaft Cement Mixer Machine For Ready Mix Concrete Plant
Commercial Twin Shaft Cement Mixer Machine For Ready Mix Concrete Plant
Specifications
Brand Name :
DASION
Model Number :
JS750
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per months
Delivery Time :
10-15 working days
Packaging Details :
1x40HQ for 1 set js750 twin shaft concrete mixer
Product name :
Barrow mix laboratory plastic portable 750l twin-shaft cement mixer machine
Productivity :
35m3/h
Discharging capacity :
750L
Charging capacity :
1200L
Max. aggregate size :
80/60mm
Mixing motor power :
30kw
Hoist motor power :
7.5kw
Pump motor power :
1.1kw
Total weight :
5500kg
Description

Barrow mix laboratory plastic portable 750l twin-shaft cement mixer machine

Product Application

JS series twin shaft concrete mixer is a high efficienct equipment with adavanced design, good performances and it is widely used inconstruction industry, the machine is designed to mix different types of material such as hard material, plastic concrete and other kind of material. The concrete mixers are mainly used in high-speed rail, highway, airport, hudropower station. Except used independently, the concrete mixers can also used together with PL1200 to form the simple concrete mixing plant, the main mixer of the HZS35 concrete mixing plant.

Commercial Twin Shaft Cement Mixer Machine For Ready Mix Concrete Plant

1. Mixing Blade
The material of mixing blade adoptes best wear-resistant material, this expends the life of mixing blade.
2. Hoist System
This system will lift up the hopper with ease, it is stable and powerful.
3. Pnuematic Cylinder
With this device, the machine discharges swiftly. The quality of it is the best.
4. Lubricating System
The material of mixing blade adoptes best wear-resistant material, this expends the life of mixing blade.

Main Features:

1. Reasonable structure, easy in installation and maintation.
2. Adopting advanced components , electric parts and mechanical parts.
3. Fully automatic and efficiency.
4. Wear-resistant blade and lining.
5. Low noise and environment protection.

6. High productivity, it can mix various kinds of materials.

7. Gearbox and spindle are used couplings directly drive , long life, high mechanical efficiency.

8. High wear-resistant alloy cast iron side plates.

9. High discharging speed.

Technical Parameter:

Model Unit JS500 JS750 JS1500 YJS1000
Capacity m3/h 25 35 75 50
Discharging capacity L 500 750 1500 1000
Charging capacity L 800 1200 2400 1500
Max. aggregate size mm 80/60 80/60 80/60 80/100
Mixing circle s 72 72 72 ≤60s
Mixing blade Rational speed r/min 35 31 25.5 25.5
Quantity pcs 2x7 2x7 2X8 2x7
Mixing motor power kw 18.5 30 22X2 18.5x2
Hoist motor power kw 5.5 7.5 18.5 /
Pump motor power kw 0.75 1.1 3 /
Dimension mm

4461x3050x52

25

4951x3650x62

25

9645x3736x97

00

 2810×3200
×1920
Total weight kg 4000 5500 11300 5200
Discharging height mm 1500/2700/3800 1500/2700/3800 3800 2700/3800

Concrete Mixer Warehouse:

Commercial Twin Shaft Cement Mixer Machine For Ready Mix Concrete Plant

Our Service

1. Provide the space planning, plant planning,and equipment layout;
2. Provide on-site equipment installation, commissioning until normal production;
3. Train the workers in production operations, equipment maintenance;
4. Provide the necessary production technology formula and costing budget;
5. Guarantee one year warranty,spare parts supply;
6. Supply molds and accessories in costing price.
