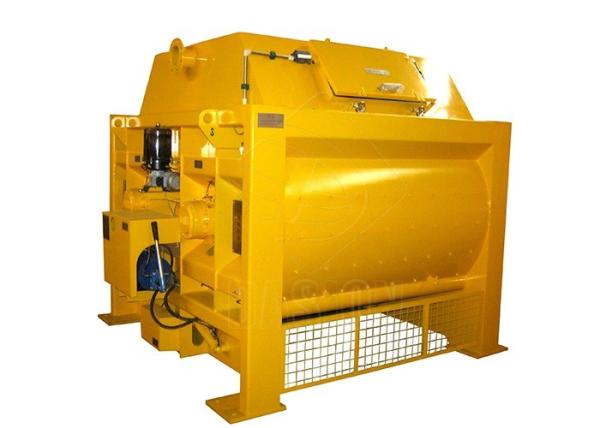

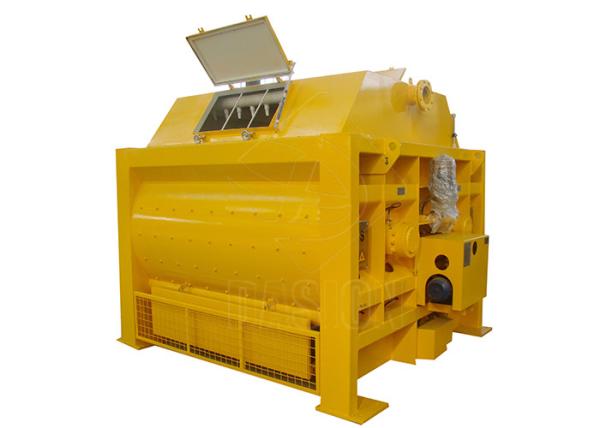

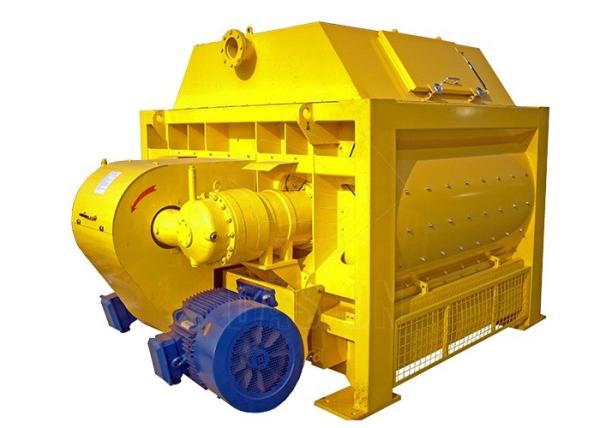

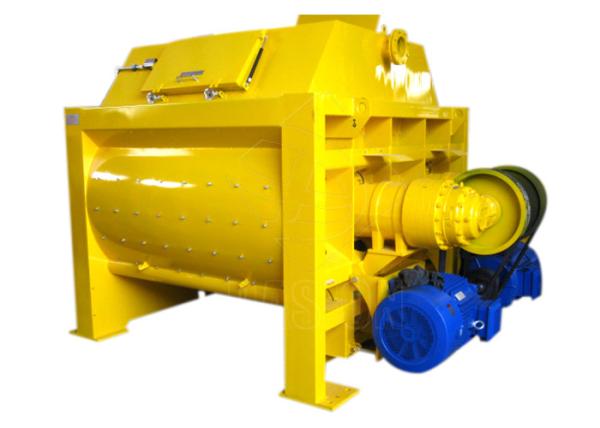

Towable Double Shaft Concrete Mixer Machine , 1000L Automatic Stone Cement Mixer
Towable Double Shaft Concrete Mixer Machine , 1000L Automatic Stone Cement Mixer
Towable Double Shaft Concrete Mixer Machine , 1000L Automatic Stone Cement Mixer
Towable Double Shaft Concrete Mixer Machine , 1000L Automatic Stone Cement Mixer
Towable Double Shaft Concrete Mixer Machine , 1000L Automatic Stone Cement Mixer
Towable Double Shaft Concrete Mixer Machine , 1000L Automatic Stone Cement Mixer
Towable Double Shaft Concrete Mixer Machine , 1000L Automatic Stone Cement Mixer
Towable Double Shaft Concrete Mixer Machine , 1000L Automatic Stone Cement Mixer
Towable Double Shaft Concrete Mixer Machine , 1000L Automatic Stone Cement Mixer
Towable Double Shaft Concrete Mixer Machine , 1000L Automatic Stone Cement Mixer
Towable Double Shaft Concrete Mixer Machine , 1000L Automatic Stone Cement Mixer
Towable Double Shaft Concrete Mixer Machine , 1000L Automatic Stone Cement Mixer
Specifications
Brand Name :
DASION
Model Number :
YJS1000
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per months
Delivery Time :
10-15 working days
Packaging Details :
1x40HQ for 1 set yjs1000 twin shaft concrete mixer
Product name :
1000 Liter Stone Cement Automatic Laboratory Towable Doube Shaft Concrete Mixers
Productivity :
50m3/h
Discharging capacity :
1000L
Charging capacity :
1500L
Max. aggregate size :
80/100mm
Mixing motor power :
18.5x2kw
Mixing time :
≤60s
Dimension :
1.1kw
Total weight :
5200kg
Description

Towable Double Shaft Concrete Mixer Machine , 1000L Automatic Stone Cement Mixer

Technical Parameter:

Model Unit JS500 JS750 JS1500 YJS1000
Capacity m3/h 25 35 75 50
Discharging capacity L 500 750 1500 1000
Charging capacity L 800 1200 2400 1500
Max. aggregate size mm 80/60 80/60 80/60 80/100
Mixing circle s 72 72 72 ≤60s
Mixing blade Rational speed r/min 35 31 25.5 25.5
Quantity pcs 2x7 2x7 2X8 2x7
Mixing motor power kw 18.5 30 22X2 18.5x2
Hoist motor power kw 5.5 7.5 18.5 /
Pump motor power kw 0.75 1.1 3 /
Dimension mm

4461x3050x52

25

4951x3650x62

25

9645x3736x97

00

 2810×3200
×1920
Total weight kg 4000 5500 11300 5200
Discharging height mm 1500/2700/3800 1500/2700/3800 3800 2700/3800

Product Deatils:

Towable Double Shaft Concrete Mixer Machine , 1000L Automatic Stone Cement Mixer

1.Shaft Seals

Double floating rings combined with high pressure grease ,can prolong the life of shaft seals.

2. Monitoring system of mixer

Superior greasing pump and distributor meter an exact amount of grease and improve working reliability.

3.Maintennance Access

Large maintenance door allows easy access .High security positivedisconnect lock.

4.Hydraulic Discharging Unit

Hydraulic unit equipped with manual pump allows the door be opened in case of electric failure.

5.Reduction Gearbox

Original Italian planetary gearbox runs at lower noise and temperature and has longer service life.

6.Mixing device

Ni-hard cast iron blades and scrapers provide faster mixing and long service time.

7. Belt conveyor

The mixer moving by belt conveyor ,that mode is better than Gear transmission .Our belt make by give nylon , more wearable, more stable operation.

8.Ccover paint

Painting details are perfect, smooth surface, five layer spray paint.

9. Dirty oil box

No cleaning, will not cause pollution to the workplace environment.

Concrete Mixer Delivery:

Towable Double Shaft Concrete Mixer Machine , 1000L Automatic Stone Cement Mixer

Our Service:

1. May enjoy the life-long service and technical consultation after you buy our products.

2.Training the operator for free.

3. We will dispatch one or two skilled healthy and competent technician to the job site for technical service on-site with a period of 14 days.

4. Under the condition that foundation, water source, power source, aggregate, hosting equipment, auxiliary staff is ready. Engineers are available if you need.

5. Certain quantity stochastic tool will be provided while delivering goods.

6. Within 48 hours service will be available according to different regions after received the telephone.

7. The time of warranty is for a whole year.
