Compulsory Twin Shaft Concrete Mixer , 1000 Liter Beton Electrical Cement Mixer
Compulsory Twin Shaft Concrete Mixer , 1000 Liter Beton Electrical Cement Mixer
Compulsory Twin Shaft Concrete Mixer , 1000 Liter Beton Electrical Cement Mixer
Compulsory Twin Shaft Concrete Mixer , 1000 Liter Beton Electrical Cement Mixer
Compulsory Twin Shaft Concrete Mixer , 1000 Liter Beton Electrical Cement Mixer
Compulsory Twin Shaft Concrete Mixer , 1000 Liter Beton Electrical Cement Mixer
Compulsory Twin Shaft Concrete Mixer , 1000 Liter Beton Electrical Cement Mixer
Compulsory Twin Shaft Concrete Mixer , 1000 Liter Beton Electrical Cement Mixer
Specifications
Brand Name :
DASION
Model Number :
YJS1000
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100 sets per months
Delivery Time :
10-15 working days
Packaging Details :
1x40HQ for 1 set yjs1000 twin shaft concrete mixer
Product name :
Beton mixing machine electrical 1000 litre compulsory twin shaft concrete mixer 1m3
Productivity :
50m3/h
Discharging capacity :
1000L
Charging capacity :
1500L
Max. aggregate size :
80/100mm
Mixing motor power :
18.5x2kw
Mixing time :
≤60s
Dimension :
1.1kw
Total weight :
5200kg
Description

Compulsory Twin Shaft Concrete Mixer , 1000 Liter Beton Electrical Cement Mixer

Compulsory Twin Shaft Concrete Mixer , 1000 Liter Beton Electrical Cement Mixer

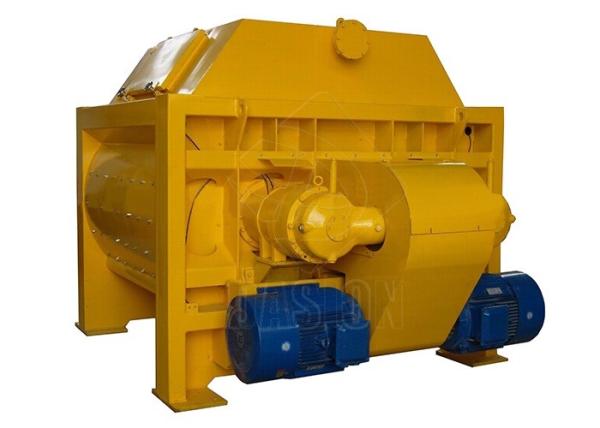

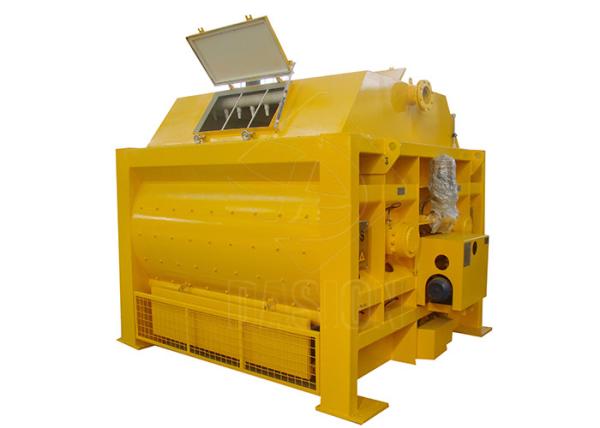

YJS1000 is twin shaft compulsory concrete mixer, which can mix hard drying concrete, plastic concrete, fluid concrete and light aggregate concrete.

A. Working condition: Road, Bridge & Precast product for factory, work independently or be used with correspond batching machine as a belt or bucket type concrete batching plant.

B. Discharge system: Pneumatic & manual mode, run smoothly and low noise.

C. Inside Mixer: mixer blade adopts high rigidity wear resistant steel (long service life).

D. The height of discharge: 1.5m, 2.7m or 3.8m (adjustable)

E. Easy Maintenance.

The electrical system adopts import component, form those world famous exporter which are reliability and have good performance.

Technical Parameter:

Model Unit JS500 JS750 JS1500 YJS1000
Capacity m3/h 25 35 75 50
Discharging capacity L 500 750 1500 1000
Charging capacity L 800 1200 2400 1500
Max. aggregate size mm 80/60 80/60 80/60 80/100
Mixing circle s 72 72 72 ≤60s
Mixing blade Rational speed r/min 35 31 25.5 25.5
Quantity pcs 2x7 2x7 2X8 2x7
Mixing motor power kw 18.5 30 22X2 18.5x2
Hoist motor power kw 5.5 7.5 18.5 /
Pump motor power kw 0.75 1.1 3 /
Dimension mm

4461x3050x52

25

4951x3650x62

25

9645x3736x97

00

 2810×3200
×1920
Total weight kg 4000 5500 11300 5200
Discharging height mm 1500/2700/3800 1500/2700/3800 3800 2700/3800

Product Deatils:

Compulsory Twin Shaft Concrete Mixer , 1000 Liter Beton Electrical Cement Mixer

Product Delivery:

Compulsory Twin Shaft Concrete Mixer , 1000 Liter Beton Electrical Cement Mixer

Our Services:

1. Installation, debugging, operators trainning;

2. Maintanence:

A. when trainning your operators, our engineers will give them advice on how to operate the machines correctly;

B. we will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;

C. Call us at any time if you have problems about our concrete plants;

D. If needed, we will send engineers to your site to solve your problems.

2. Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;

3. Spare parts supply.
