Specifications
Brand Name :
DASION
Model Number :
YHZS75
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
60 sets per month
Delivery Time :
10-15 working days
Packaging Details :
2x40HQ for 1set 75m3/h mobile concrete batching plant
Product name :
Compact on site precast ready mixed prestressed mobile concrete mixing plant
Capacity :
75m3/h
Aggregate feeder :
Belt conveyor
Discharging volume :
2000L
Charging volume :
3000L
Mixing circle :
72s
Max. mixing size :
80/60mm
Max. dragging speed :
40km/h
Discharging height :
3800mm
Description

Compact on site precast ready mixed prestressed mobile concrete mixing plant

Introduction

As uniquely and compactly designed it is, this mobile concrete mixing plant assembles whole functions of accurate material weighing, efficient aggregate conveying, homogeneous mixing, computer auto-controlling and trailing. It is the ideal concrete plant for projects that require frequent removal from one site to another.

Mobile concrete batching plant is specially designed for project with short construction time, long construction line, frequently changing construction site; Our well-sold mobile concrete batching plant has the following features: Compact in structure, small in space needed, simple in installation, high in automation, it is widely used in the construction of bridge, building, water conservancy project, power and other infrastructure.

Advantages

1. Simple and compact structure, many concrete mixing plant parts fasten in one unit.

2. More humanized operation, mobile concrete mixing plants can work even in bad environment.

3. Mobile concrete mixing plants adopt efficient twin shaft compulsory concrete mixer, which can ensure the production quality and efficiency.

4. Faster to assemble and disassemble, convenient to transit.

Product Details

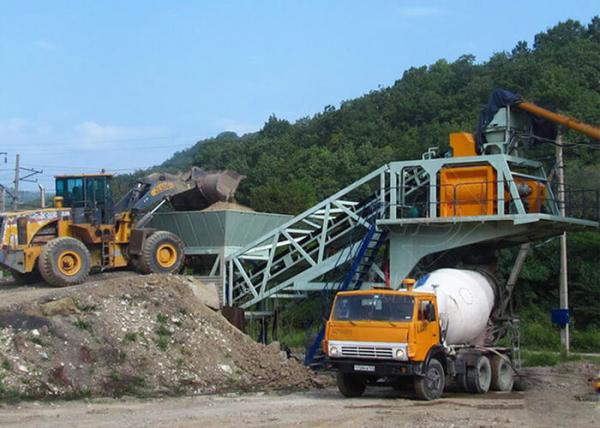

Compact On Site Mobile Concrete Mixing Plant Precast Prestressed Concrete Plant

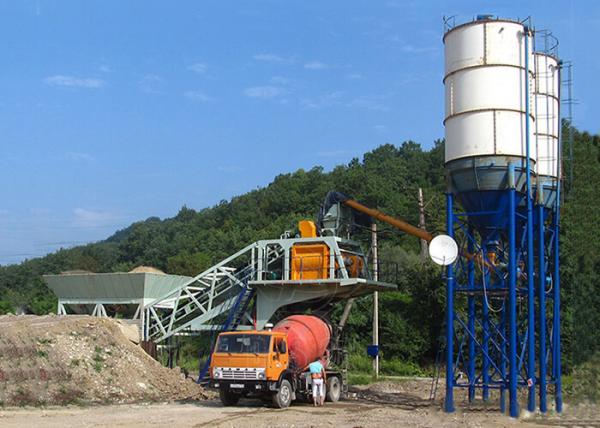

Compact On Site Mobile Concrete Mixing Plant Precast Prestressed Concrete Plant

Parameters

Model YHZS25 YHZS35 YHZS50 YHZS60 YHZS75
Capacity 25m3/h 35m3/h 50m3/h 60m3/h 75m3/h
Max. dragging speed 40km/h
Discharging height 3800mm
Concrete mixer JS500 JS750 JS1000 JS1000 JS2000
Discharging volume 500L 750L 1000L 1000L 1200L
Charging volume 800L 1200L 1500L 1500L 2250L
Mixing circle 72s 72s 72s 60s 72s
Max. mixing size 80/60mm 80/60mm 80/60mm 80/60mm 80/60mm
Batching machine PLD800 PLD1200 PLD1600 PLD2400 PLD2400
Storage bins quantity 2 or 3 or 4 sorts 2 or 4 sorts
Aggregate scale hopper 800L 1200L 1600L 2400L 2400L
Aggregate feeding method Skirt-side Belt conveyor Special Belt conveyor
Weighing precision ±1%(water, cement, additive)

FAQ

Q1: Are you trading company or manufacturer?
A: We have no agent or dealers, so the price that we provided is factory price.
About quality guarantee:The price that we provided is the lowest price,we have no profit to support over sea service.
If there is some question with your machine, we will adopt DHL, express new parts to you in 3 days,and our technologist will guide you or your technologist how to repair it. We provide parts for free in 12 months, not include the freight fee.

Q2: XXX company's price is cheaper than you, I want the cheap one.
A: Quality is more important than price. They will not sale the machine with no profit. Excessive low price means inferior parts and unconcernedly assemble. Our parts all purchased by our professional buyer, they have plenty experience to choose good parts in good price. The education background of our workers are junior college or higher than this, plenty of assemble experience. We have professional quality inspector, before our machine out of our factory, we test every machine strictly.
