40M3/H Portable Trailer Mounted Cement Mini Concrete Mixer Pump Price For Sale

Application Of Concrete Mixer Pump:

• Railway bridgeFactory floor
• Housing construction
• Tunnel bridge
• Hydraulic engineering construction
• Small and middle scale road project

Introduction Of Concrete Mixer Pump:

JBT concrete mixer pump combines the functions of concrete mixing and conveying. Be movable with types from one construction site to another. Pump not only large size aggregate concrete, but also fine stone concrete or mortar. The concrete mixer pump is suitable for the small and middle-scale road and house projects. It can also work in the power shortage areas by equipped with generator set.

1. It combines mixer and pump together, easy and flexible to move, high mobility.

2. It can be done by only one operator to complete mixing and pumping, saving labors.

3. The machine has two functions. Mixer and pump can work independently, also can join each other quickly without dismounting the machine.

Specifications Of Concrete Mixer Pump:

Model: JBT40

Max. theoretical output: 40m3/h

Max. pumping pressure: 10Mpa

Max. conveyor height: 160m

Max. delivery distance: 400m

Motor power: 45kw

Main oil pump capacity: 112ml/min

Main oil cylinder diameter: 100x1000mm

Hopper capacity: 550L

Max. aggregate diameter: 30/40mm

Distribution cylinder: The S tube placed valve

Dimension: 4800x2200x2800mm

Total weight: 5000kg

Features Of Concrete Mixer Pump:

• Main oil pump. Adopt domestic famous brand or Rexroth, Kawasaki series.
• Lubrication system. Adopt automatic lubrication system, high oil pressure with stable lubrication effect.
• Power system. Adopt domestic and world famous motor and diesel engine.
• Control system. Adopt Japan Omron PLC control system, equipped with wireless remote control, makes the operation more flexible and convenient.
• Electric parts. Main electric elements are from Schneider or ABB, highly improved the reliability.
• Seal parts. Big oil cylinder’s seal components adopt American Parker.
• Hydraulic rubber hose joints. Adopt American Eaton, insures the safety and no leakage of hydraulic system.
• S valve. Wear-resistant cast iron materials, enjoys the advantages of anti-high pressure and anti-wearing.
• Glass plates and cut loops. Made of anti-wearing horniness alloy, has long service life.
• Concrete piston. Precisely processed by imported material, enjoys the features of hydrolytic resistant, wear resistant and high temperature resistant.

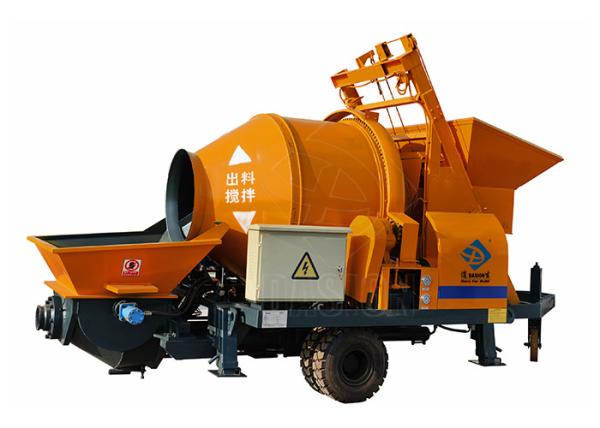

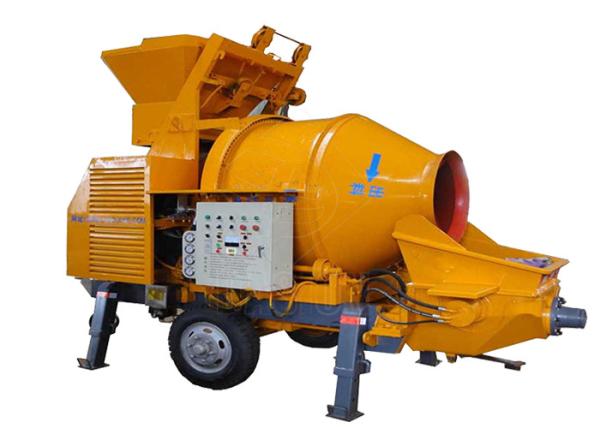

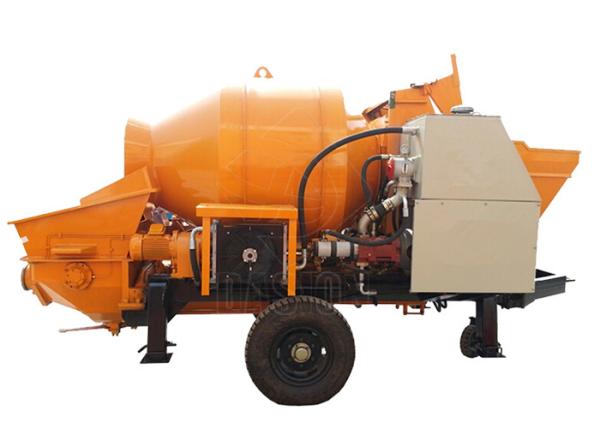

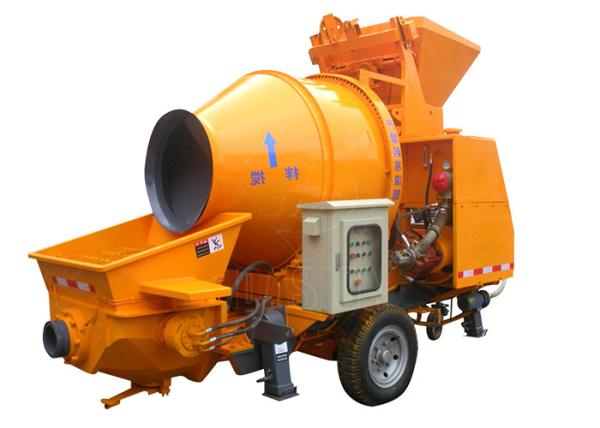

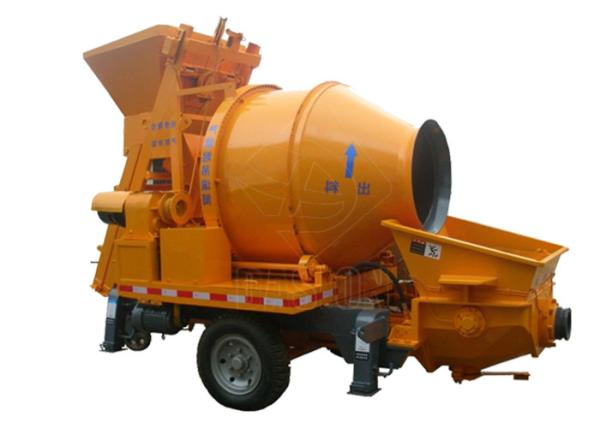

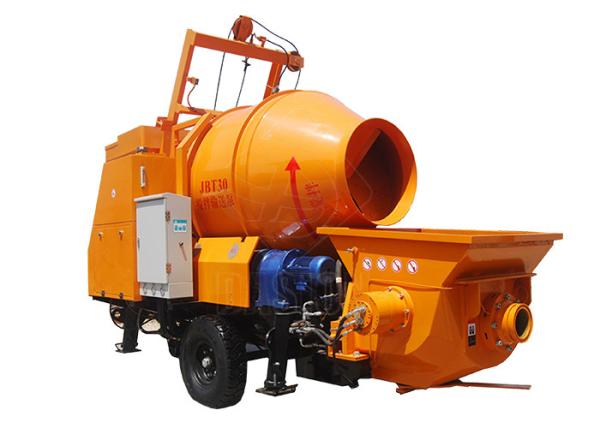

Product Details Show:

Working Site
