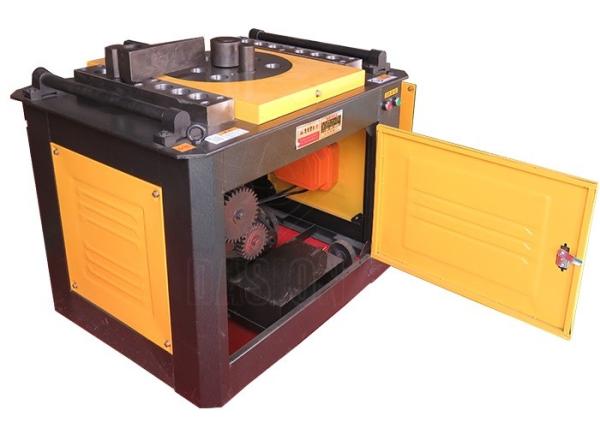

High Power CNC Rebar Bender , Fully Automatic Metal Bar Bending Machine
High Power CNC Rebar Bender , Fully Automatic Metal Bar Bending Machine
Specifications
Brand Name :
DASION
Model Number :
GW50B
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Paypal
Supply Ability :
1000 sets per month
Delivery Time :
7-10 working days
Packaging Details :
Iron frame, plywood cases or carton.
Product name :
China reinforcement cnc panel automatic iron steel round rebar bending machine
Motor power :
3kw
Ordinary carbon steel :
≤30mm
Class III reba :
≤28mm
Dimension :
88x76x79cm
Color :
Required
Weight :
220kg
Voltage :
380V
Description

Sensitive CNC Rebar Bender , Fully Automatic Metal Bar Bending MachineProduct

Description:

1. Rebar bending machine can be used efficiently to bend ordinary carbon steel, hot-rolled steel, screw bar, flat bar, square bar and angle steel bar which are widely used in machining and construction project.

2. Automatic Bar Bending Machine characterized by advanced Design, Easy Operation Process, safety and Reliability as well as stable performance. It is utilized in building construction projects.
3. This Machine is Specially Designed for Heavy Duty Rebar & is on high demand at Construction Job Site applications. The range of bar bending machines we offer renders smooth functioning for longer time period.

Advantages:

1) The special extra-thick steel plates,high steel disc of iron,high power medium-speed international standard motor, the quality is more stable.
2) It is fully enclosed gear-box,low noise,high and low speed,which uses easily.
3) It adds eccentric bushing,ultra-high hardness accessories and adjustable baffles,so it will have longer service life.

4) Work disk:high precision manufacturing technology,high-rigid steel to manufacture.
5) Belt pulley:By adjusting the motor belt pulley. setting combination can bend different diameter of bars different kinds of speed.

Parameters of Steel Bar Bending Machine:

Item Rebar Bending Machine Parameters
1 GW40(GW40B) Bending range: Round steel bar ≤Φ30mm; Class-III rebar ≤Φ28mm Motor Power: 3kw
Wight: 210kg
Dimension: 82*70*73cm
Intermediate accessories
Plate: 8mm
2 GW40A Bending range: Round steel bar ≤Φ40mm;Class-III rebar ≤Φ32mm Motor Power: 3kw
Wight: 220kg
Dimension: 82*70*73cm
High-grade accessories
Heavy Plate: 10mm.
3 GW45(GW45B) Bending range: Round steel bar ≤Φ45 mm
Class-III rebar ≤Φ36mm Motor Power: 3kw
Weight: 255kg Dimension: 86*75*81cm
High-grade accessories. Plate 10mm.
Spindle with bearings. Thickening volute gear.
4 GW45A Bending range: Round steel bar ≤Φ45 mm; Class-III rebar ≤Φ36mm Motor Power: 4kw
Weight: 310kg Dimension: 86*75*83cm
High-grade accessories. Plate 10mm.
Spindle with bearings,Heavy Double side operation
5 GW45AT Bending range: Round steel bar ≤Φ45 mm
Class-III rebar ≤Φ36mm Motor Power: 4kw
Weight: 320kg
Dimension: 88*75*84cm
High-grade accessories. Plate 10mm. Spindle with bearings. Automatic operation
6 GW50(GW50B) Bending range: Round steel bar ≤Φ50mm; Class-III rebar≤Φ40mm Motor Power: 4kw
Weight: 320kg Dimension: 85*83*83cm
High-grade accessories. Plate 10mm.
Spindle with bearings
7 GW50A Bending range: Round steel bar ≤Φ50mm; Class-III rebar≤Φ40mm Motor Power: 4kw
Weight: 350kg
Dimension:102*75*83cm
High-grade accessories. Plate 10mm.
Spindle with bearings. Digital Auto-control
8 GW55
(GW55B)		 Bending range: Round steel bar≤Φ55mm; Class-III rebar≤Φ42mm Motor Power: 5.5kw
Weight: 420kg
Dimension: 85*90*90cm
High-grade accessories. Plate 10mm.

High Power CNC Rebar Bender , Fully Automatic Metal Bar Bending Machine

Steel Bar Bending Machine Spare Parts:

High Power CNC Rebar Bender , Fully Automatic Metal Bar Bending Machine

Factory Warehouse

High Power CNC Rebar Bender , Fully Automatic Metal Bar Bending Machine

FAQ

1)How do you take care when your clients received defective products?

A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.


2)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.

3) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.
