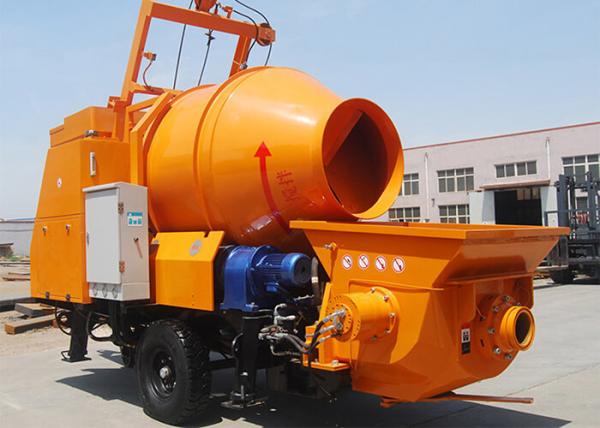

Mobile Trailer mounted price concrete pump machine 40m3/h capacity concrete mixer pump

Application Of Concrete Mixer Pump:

• Railway bridgeFactory floor
• Housing construction
• Tunnel bridge
• Hydraulic engineering construction
• Small and middle scale road project

Introduction Of Concrete Mixer Pump:

• The concrete mixer with pump combines concrete mixer and concrete pump together. It is very suitable for small construction projects, such as small buildings with less than 60m height, rural road. The horizontal delivery distance can reach 260m. It can save you many troubles by using this mixer with pump.
• In general, you have to transport the mixed concrete to the pump by using mixer truck, but with this machine, no need this step, what you need to do is to feed the raw materials of concrete to the mixer, then it can be pumped to anywhere you want.

Features Of Concrete Mixer Pump:

• Main oil pump. Adopt domestic famous brand or Rexroth, Kawasaki series.
• Lubrication system. Adopt automatic lubrication system, high oil pressure with stable lubrication effect.
• Power system. Adopt domestic and world famous motor and diesel engine.
• Control system. Adopt Japan Omron PLC control system, equipped with wireless remote control, makes the operation more flexible and convenient.
• Electric parts. Main electric elements are from Schneider or ABB, highly improved the reliability.
• Seal parts. Big oil cylinder’s seal components adopt American Parker.
• Hydraulic rubber hose joints. Adopt American Eaton, insures the safety and no leakage of hydraulic system.
• S valve. Wear-resistant cast iron materials, enjoys the advantages of anti-high pressure and anti-wearing.
• Glass plates and cut loops. Made of anti-wearing horniness alloy, has long service life.
• Concrete piston. Precisely processed by imported material, enjoys the features of hydrolytic resistant, wear resistant and high temperature resistant.

Specifications Of Concrete Mixer Pump:

Model: JBT30

Max. theoretical output: 30m3/h

Max. pumping pressure: 9Mpa

Max. conveyor height: 140m

Max. delivery distance: 350m

Motor power: 37kw

Main oil pump capacity: 71ml/min

Main oil cylinder diameter: 80x845mm

Hopper capacity: 550L

Max. aggregate diameter: 20/30mm

Distribution cylinder: The S tube placed valve

Dimension: 4270x2350x2980mm

Total weight: 3300kg

Product Details Show:

Production Process:

Other Concrete Mixer Pump Types:
