Energy Saving Small Cement Pump Machine High Pressure With 350m Delivery Distance
Energy Saving Small Cement Pump Machine High Pressure With 350m Delivery Distance
Specifications
Brand Name :
DASION
Model Number :
DHBT50S-10-56
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 sets per month
Delivery Time :
10-15 working days
Packaging Details :
1X20GP for 1 set diesel trailer concrete pump
Product name :
Small concrete pump machine diesel trailer concrete pumps with 350m delivery distance
Theoretic delivery volume :
50m3/h
Delivery speed :
23times/min
Oil tank capacity :
300L
Hopper capacity :
500L
Power :
56kw
Overall weight :
4000kg
Pulling speed :
≤8km/h
Description

Small concrete pump machine diesel trailer concrete pumps with 350m delivery distance

Introduction of Trailer Concrete Pump

DHBT series diesel trailer concrete pump work with high efficiency and saving energy, the capacity ranges from 40 to 80m3/h. Compact structure small wheel design, flexible movement, convenient movement and simple maintenance. High delivery pressure to meet demand of high building and long distance projects It is widely used for the construction works in city construction, bridge construction, electric power and other energy source facilities and so on.

Features of Trailer Concrete Pump

1. Unique automatic centralized dual lubrication system, lubricate to every point of the system directly;.
2. Inependent dual cooling system: Oil-air cooler, high cooling power, can effectively reduce the heat generated by hydraulic system operation; Oil-water cooler, there are no shelters in the summer, oil temperature could be risen quickly under the direct solar radiation, start the water cooler to help cool down.Both can ensure the reliability of hydraulic system operation.
Adopted with rigid and wearable alloy materials, S-tube, glass-like plate and cutting ring have longer longevidty;
3. High pressure for output, can meet all kinds of construction requirements;
4.Cast one-piece piston, more suitable for using high pressure, much longer service life. With anti-pump function, can minimize blockage in pipelines;
5. Equipped with two modes of operation of wireless remote control and panel control, easy to operate.
6. Pumping speed can be free adjustment from 0 to 45m³, having a wider using range.

Parameters of Trailer Concrete Pump

Item Unit

DHBT40S

-10-56

DHBT50S

-10-56

DHBT60

-13-118

DHBT60

-16-145

DHBT80

-13-145

DHBT

-80-16-174
Theoretic delivery volume m3/h 40 50 60 60 80 80
Max. theoretic delivery pressure Mpa 8 8 12.5 15.7 12.5 15.7
Diesel engine power kw 56 56 118 145 145 174
Max. delivery speed km/h 30 23 22/13 22/13 26/16 30/23
Max. theoretic delivery height m 120 150 180 250 180 250
Max. theoretic delivery distance m 300 350 700 1000 700 1000
Distribution valve type S valve
Hydraulic oil circuit type Open circuit
Oil tank capacity L 260 300 420 420 420 420
Hopper capacity L 400 500 600 600 600 600
Max. aggregate size mm 30 30 Pebble 50, crushed stone 40
Dimension mm

4970×1680

×2580

5270×1860

×2580

6600×1930

×2190

6600×1930

×2190

6600×1930

×2190

6600×1930

×2190
Overall weight kg 3200 4000 5500 6000 6000 6000
Pulling speed km/h ≤8

Energy Saving Small Cement Pump Machine High Pressure With 350m Delivery Distance

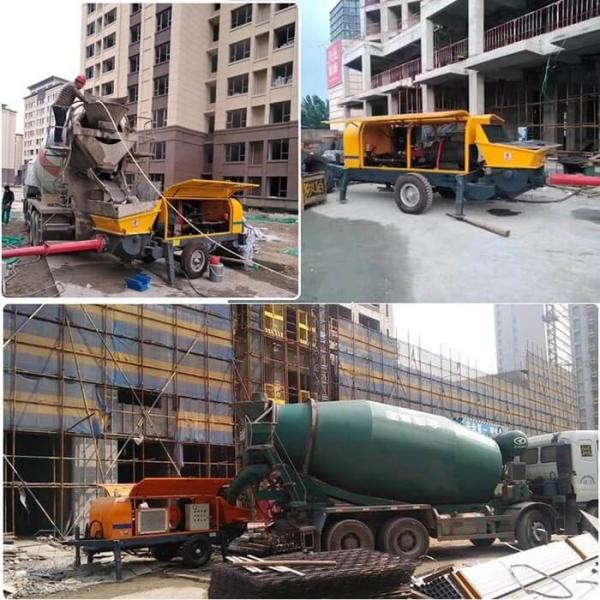

Details of Trailer Concrete Pump

Energy Saving Small Cement Pump Machine High Pressure With 350m Delivery Distance

Our Service

1. Specialized in manufacture concrete trailer pumps, mortar spraying machines and foamed cement conveying machines for 20 years.

2. Customized special pump machines for special industries, according to construction conditions.

3. 12-month quality guarantee period for whole machine.

4. Professional training engineers and after-sales service team.
