Heavy Duty Industrial Horizontal Twin-shaft Concrete Cement Mixer For Block Making Machine

Concrete Mixer Description:

Application of JS750 Concrete Mixer

This JS750 Heavy Duty Industrial Horizontal Concrete Mixer can be used to mix stiff-consistency concrete, semi-stiff-consistency concrete, light weight aggregate concrete and so on.

Description of JS750 Twin Shaft Concrete Mixer

1. JS750 compulsory concrete mixer is an engineering compulsory concrete mixer. JS750 concrete mixer discharge 0.75 each party, also known as 0.75 square concrete mixer, which often used as a host of HZS35 concrete batching plant.

2. JS750 concrete mixer theory productivity 35m3 / h, duty cycle time is 60s, with a stirring force, small power consumption, strong power, built-in vortex mixer to prevent the material unity knot positions, etc., including the compulsory mixer planetary mixer, vortex mixer, agitator shaft, nesting agencies, discharge port , stand mixer and chassis components.

3. JS750 twin shaft compulsory concrete mixer is suitable for all types of large, medium and small prefabricated factories and roads, bridges, water conservancy, port and other industrial and civil engineering, which can mix dry concrete, plastic concrete, fluidity concrete, lightweight aggregate concrete and mortar variety, which is a high-efficiency model and widely used.

Concrete Mixer Parameters:

Concrete Mixer Details:

1. JS750 concrete mixer Mixing system

Twin-shaft JS750 concrete mixer mixing system consists of motor, pulley, gearbox, gear, stirring device, mixing drum and other components. The main motor is connected to the secondary gear reduction box through a belt, and finally the two horizontally-connected stirring shafts are respectively rotated by the two pairs of open gears at the same speed.

2. JS750 concrete mixer Feeding system

When the Twin-shaft JS750 concrete mixer is feeded, the mixture to be mixed is placed in the hopper, the feeding system is started, and the wire rope pulling hopper is climbed upward. When climbing to a certain height, the hopper enters the feeding rack, the door is automatically opened, and the material is discharged into the mixing drum through the funnel.

3. JS750 concrete mixer Discharging system

The discharging system is located at the bottom of the Twin-shaft JS750 concrete mixer and is unloaded by a manual push rod. According to customer requirements, the mixer can be produced in the form of electric push rod discharge. The connection between the discharge door and the mixing drum is sealed with a sealing plate, and the position of the sealing plate can be adjusted to ensure the purpose of sealing.

4. JS750 concrete mixer Electrical System

The electrical control system needs to control the main drive motor of the Twin-shaft JS750 concrete mixer, the motor of the water supply system, the feeding and unloading of the motor. All electrical control components are located in the distribution box. The electrical components in the distribution box are installed on an iron plate, which is safe and reliable, and convenient for operation and maintenance.

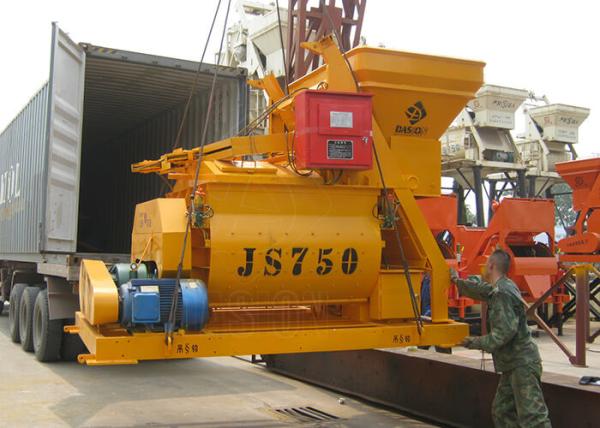

Concrete Mixer Delivery:
