S Valve 40m3/H Stationary Trailer Concrete Pump With Diesel Engine 56kw Power
S Valve 40m3/H Stationary Trailer Concrete Pump With Diesel Engine 56kw Power
Specifications
Brand Name :
DASION
Model Number :
DHBT40S-10-56
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
50 sets per month
Delivery Time :
10-15 working days
Packaging Details :
1X20GP for 1 set diesel trailer concrete pump
Product name :
S valve 40m3/h stationary trailer mounted concrete pump with diesel engine
Theoretic delivery volume :
40m3/h
Delivery speed :
30times/min
Oil tank capacity :
260L
Hopper capacity :
400L
Power :
56kw
Overall weight :
3200kg
Pulling speed :
≤8km/h
Description

S valve 40m3/h stationary trailer mounted concrete pump with diesel engine

Introduction of Trailer Concrete Pump

Trailer concrete pump is a kind of useful and efficient concrete high pressure transport pump, widely used in highway, railway, bridge, building, tunnels, ports, water conservancy and other projects of grouting pressure, grouting mortar, concrete, large particle slurry grouting, spraying work, has the working pressure, pumping ability strong, grouting with high efficiency, smooth coating, using solid, etc.

Features of Trailer Concrete Pump

1. Compact structure, easily moved, highly movable and flexible.
2. Intelligent power control system with PLC for safe, smooth and efficient operation.
3. Plunger pump with constant power, ensuring the efficiency of main engine.
4. Equipped with wire remote controller easy to operate.
5. High performance sealing of S pipe valve installed with floating wear resistant.
6. High delivery pressure to meet demand of high building and long distance projects.
7. Low cost maintenance, beautiful appearances.

Parameters of Trailer Concrete Pump

Item Unit

DHBT40S

-10-56

DHBT50S

-10-56

DHBT60

-13-118

DHBT60

-16-145

DHBT80

-13-145

DHBT

-80-16-174
Theoretic delivery volume m3/h 40 50 60 60 80 80
Max. theoretic delivery pressure Mpa 8 8 12.5 15.7 12.5 15.7
Diesel engine power kw 56 56 118 145 145 174
Max. delivery speed km/h 30 23 22/13 22/13 26/16 30/23
Max. theoretic delivery height m 120 150 180 250 180 250
Max. theoretic delivery distance m 300 350 700 1000 700 1000
Distribution valve type S valve
Hydraulic oil circuit type Open circuit
Oil tank capacity L 260 300 420 420 420 420
Hopper capacity L 400 500 600 600 600 600
Max. aggregate size mm 30 30 Pebble 50, crushed stone 40
Dimension mm

4970×1680

×2580

5270×1860

×2580

6600×1930

×2190

6600×1930

×2190

6600×1930

×2190

6600×1930

×2190
Overall weight kg 3200 4000 5500 6000 6000 6000
Pulling speed km/h ≤8

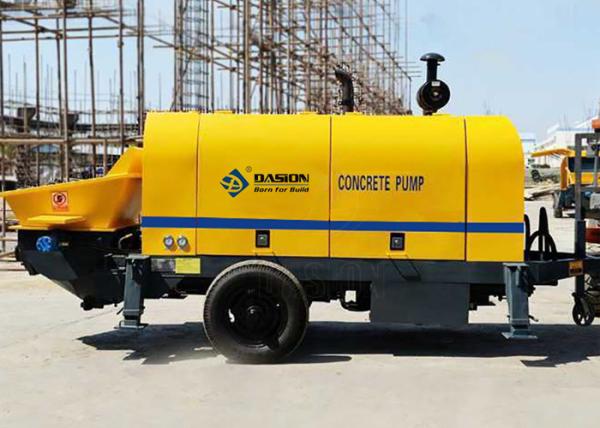

Details of Trailer Concrete Pump

S Valve 40m3/H Stationary Trailer Concrete Pump With Diesel Engine 56kw Power

Our Service

Pre-sales Service
24 hours online.
CE, ISO Certification available.
More than 30 years experience in construction platform industry.
Seven to fifteen working days fast and prompt delivery to every corner of the world.
Customized service is available, according to the actual situation, work out a flexible project solution for you.

After-sales service
12 months warranty.
Track the use situation of the equipment regularly.
Sufficient spear parts in stock provide for equipment whole life.

S Valve 40m3/H Stationary Trailer Concrete Pump With Diesel Engine 56kw Power
