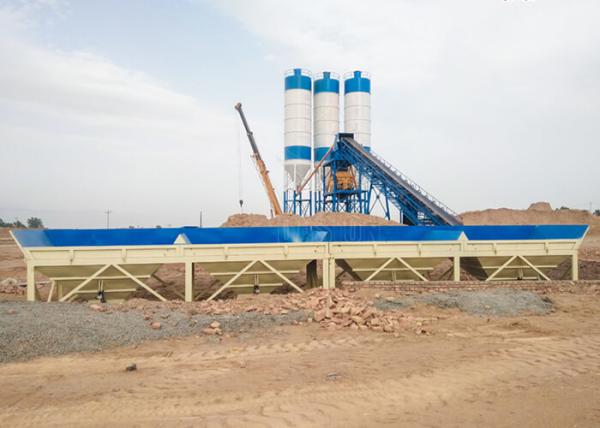

Automatic Control 60M3 Belt Type Large Commercial Ready Mix Concrete Batching Plant Price

Introduction of Ready Mix Concrete Plant

1. HZS series concrete mixing station, which is compulsory and efficient equipment. It can produce plastic, dry concrete and a variety of concretes. Its production efficiency is high.

2. HZS60 concrete batching plant is mainly composed 0f PLD1600 batching machine, JS1000 concrete mixer, cement silos, automatic computer control system, electronic weighing, screw conveyor and others.It can mix fluidity concrete, plastic concrete, hard concrete and other proportioning concrete.The Fixed Concrete Batching Plant can be used for industry, construction, road, railway, bridge, water conservation, ports, and so on.

Technical Features of Ready Mix Concrete Plant

1. Aggregate Feeding System
Including 3x8m3 gathering hoppers and 3x 1.1m3 aggregate weighing hopper, flat belt conveyor, two vibrator motors for hopper1 and hopper2.

2. Feeding belt conveyor
Adopt herringbone type belt, this type belt is better for transporting the aggregates; Double Repairing flat and electrical roller. Angle of belt conveyor: 18-20 degree, Meanwhile, we adopt middle screen to filter out big stone, and use monitor for observing the screen.

3. Mixer system and dosing system
Adopt JS1000 mixer with 2x18.5 motors, capacity: 1 cubic/batch, high mixing efficiency and stable quality of mixed material. And the mixer adopt automatic lubrication system. When the plant working,the lubrication pump can lubricate the bearing of mixer all the time.
On the mixer tower,it also equipped with water weighing tank, cement weighing tank and additive weighing tank.

4. Cement silo system
We equipped two cement silos for the batching plant, the capacity of each silo is 100 tons, it can be alternate using. On the top of the silo, we adopt dust collector,vibrator and safety valve.

5Control System
The control system adopt Schneider electrical components and Lenovo CPU and printer. There are Automatic and Manual operation for option. The automatic system can realize automatic weighing and mixing and discharging. The operation is very easy and reliable working.

Parameters of Ready Mix Concrete Plant

Installation
