Specifications
Brand Name :
DASION
Model Number :
HZS150
Certification :
CE&ISO
Place of Origin :
Henan Province, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
60 sets per month
Delivery Time :
10-15 working days
Packaging Details :
5x40HQ, 1X40FR for 1 set 150m3/h belt type concrete batching plant
Product name :
Stabilized Soil Mixing Plant Stationary Concrete Batching Plant 150m3/h
Capacity :
150m3/h
Aggregate feeder :
Belt conveyor
Discharging volume :
3000L
Charging volume :
4500L
Mixing circle :
72s
Max. mixing size :
80/60mm
Discharging height :
4000mm
Weighing precision :
±1%
Description

High Performance Stabilized Soil Mixing Plant Stationary Concrete Batching Plant 150m3/h

Concrete Batch Plant Introduction

1. HZS concrete batching plant is also called concrete mixing plant, concrete mixing station. It includes horizontal twin-shaft compulsory concrete mixer, concrete batching machine, cement silo and screw conveyor, belt conveyor or skip hopper, and control room. It can produce a variety of concretes, such as plastic, dry hard concrete with high production efficiency, short mixing time, and easy operation.

2. Electrical concrete batching plant is suitable for industrial, civil construction, roads, railways, bridges, electric power, water conservancy, port terminals, airports and other projects.Ready mixed concrete batching plant can be used as a mixing equipment for commercial concrete production, and combined various forms different specifications 60m3 concrete batching plant according to the needs of different users.

Concrete Batch Plant Features

1) Excellent mixing performance

2) Highest reliable performance

3) Unique no-sticky shaft technology

4) Accurate measurement accuracy

5) Perfect industrial design

6) Convenient transportation and installation

7) Simple operating performance

8) Good maintenance performance

9) Excellent environmental protection performance

10) TV monitoring system

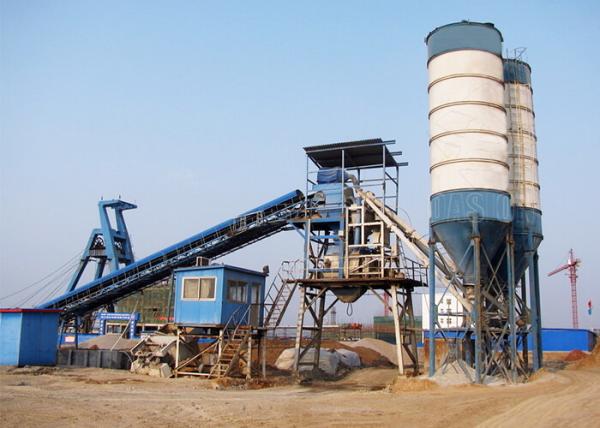

Concrete Batch Plant Details

High Performance Ready Mix Concrete Plant Stationary Concrete Batching Plant 150m3/H

Concrete Batch Plant Parameters

Model HZS60 HZS90 HZS120 HZS150/180 HZS240
Capacity 60m3/h 90m3/h 120m3/h 180m3/h 240m3/h
Mixing system Twin shaft concrete mixer
Aggregate feeder Belt conveyor
Discharging height 3800mm 3800mm 3900mm 4000mm 4000mm
After-sale service Erection & commissioning, operator training
Warranty 12 months after erection
Concrete mixer YJS1000 YJS1500 YJS2000 YJS3000 YJS4000
Discharging volume 1000L 1500L 2000L 3000L 4000L
Charging volume 1500L 2250L 3000L 4500L 6000L
Mixing circle 72s
Max. mixing size 80/60mm
Aggregate batching machine PLD1600 PLD2400 PLD3200 PLD4800 PLD4800
Storage bins quantity 2 or 3 or 4 sorts 3 or 4 sorts 3 or 4 sorts 3 or 4 sorts 3 or 4 sorts
Aggregate scale hopper 1600L 2400L 3200L 4800L 4800L
Weighing system Water, Cement, Additive
Weighing precision ±1%
Air system Air compressor, etc
Control system type Computer auto-control module (PLC can be optional item)

FAQ

1. Do you provide after-sale service?

Yes, The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and Thoroughly solve your problems. So After-sales Service was Provided and Engineers available to service machinery overseas.

2. How about the quality of your products?

We are factory with more than 18 years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery.You can also use Trade Assurance by Alibaba for products quality protection,on-time shipment protection payment protection.

3. How about the price?

We are manufactory,not dealer,so we can give you a lower price than those trade companies can.

4. What kind of Concrete Mixers or Construction Machinery do you manufacture?

Concrete Mixer(JZM series, JS series, JZC series, JZR series, BHS Mixer, Planetary Gearbox Mixer), Concrete batching plant (Batching machine, Screw conveyor, Cement Silo etc.), Rebar Processing Machinery.

5. Can I only buy concrete mixer without weighing system? Yes, and the price will be cheaper. We can provide you with the customized concrete mixer to meet your demands.
