Wave shape drainage geocomposite sheet designed

for Soccer Field artificial grass base to offer drain and shockproof

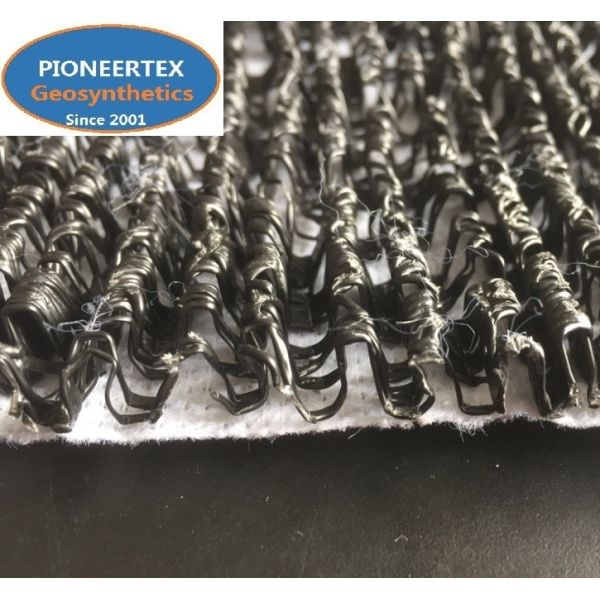

PioDrain® drainage geocomposites consist of a wave-extruded monofilament drainage core and at least one PioneerTEX® nonwoven geotextile as separation / filtration layer. All components are made of polypropylene and are firmly bonded with each other.

PioDrain® drainage applications

• Drainage of recultivation/cover soil layers on sealing systems
• Gas drainage under sealing systems or buildings
• Leachate detection in multi-layered sealing systems
• Seepage water drainage at building structures such as bridge abutments, cellars etc.

Advantages of PioDrain® drainage geocomposites

• Filtration, protection and drainage in one product
• Quick and cost-effective installation
• Firm bond between geotextiles and drainage core
• Resistance to chemical and biological degradation
• Highest quality control standards

Special Advantage 1: PioDrain® Its wave structure of the drainage core ensures a high hydraulic capacity in the long term.

Special Advantage 2: PioDrain® is economic and efficient :

PioDrain® replaces mineral material equivalently at significantly reduced work assignment and machinery application due to easier transportation and installation.

Special Advantage 3: Thermally fused components for high shear resistant bond

PioDrain® geocomposites achieve high inner shear strength due to thermal fusion of the geotextile components to the drainage core. This shear resistant bond also simplifies installation of geocomposite panels.

PioDrain® mats – the economic and efficient water and gas drainage

PioDrain® is used extensively to drain water or gas in various applications. In multi-layered sealing systems, PioDrain® fulfills multiple functions.

Three functions in one product – Filtration, protection and drainage

PioDrain® safely discharges seepage water of the covering soil layer. Additionally, it also filters the soil by means of the firmly attached nonwoven cover geotextile.Sealing elements such as geomembranes are protected by PioDrain® against coarse particles of the adjacent soils.

PioDrain® drainage mats – Economic and efficient

The 1.90m or 3.80m wide and typically 35m or 70m long PioDrain® rolls are quick and easy to install. The pre-manufactured overlap configuration of PioDrain® provides a simple and quick butt jointing of the geocomposite panels in the longitudinal direction.

The use of PioDrain® in earth construction requires less excavation of in-situ material and, in the case of a landfill liner, the containment volume is increased.

Using PioDrain® drainage mats saves time and natural resources since 10,000m² of the PioDrain® system can replace the extraction, transport and installation of approximately 3,000m³ of granular drainage material.

PioneerTEX Wave Shaped Core Composite Dainage Sheet Specificaiton

for Soccer Field Dainage Projects:
