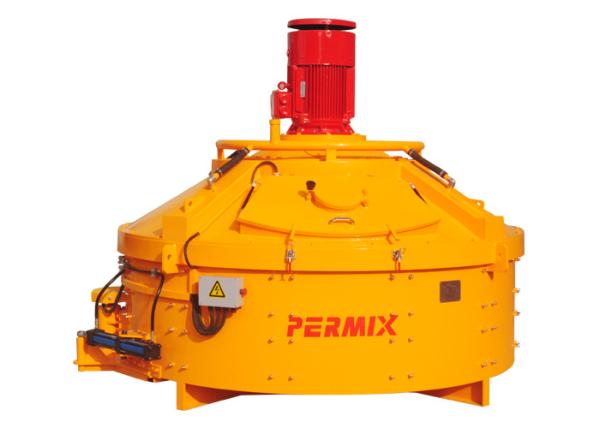

30kw Cement Concrete Mixer Machine Glass Fiber Powder Mixing PMC1250 CE Certification
30kw Cement Concrete Mixer Machine Glass Fiber Powder Mixing PMC1250 CE Certification
Specifications
Brand Name :
PERMIX
Model Number :
PMC1250
Certification :
CE
Place of Origin :
JIAOZHOU CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5-10 units per month
Delivery Time :
15-20 days
Packaging Details :
Export Standard Package
Product name :
Counter Current Planetary Mixer
Input capacity :
1875L
Input weight :
3000kgs
Mixing Power :
30kw
Output capacity :
1250L
Side Scraper QTY :
1
Description

Glass Raw Material Mixer best uniformity Glass Fiber Powder Mixing PMC1250


1. Mixer advantages


Glass Raw Material Mixer has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines. It can also provide matching hosts for the mixing station.

It is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges.

Users can use dump trucks and mixer trucks for their own use.

Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants.

The product design structure is reasonable, the layout is novel, and it is easy to use and maintain.

At the same time, they can also be restructured according to the special requirements of users to meet their needs.

2. APPLICATION INDUSTRIES

ConcreteOther Construction MaterialRefractory MaterialOthers
Ready-mixed concrete
Precast concrete
Foam concrete
Color concrete
Light concrete
Shotcrete		Dry mortar
Wet mortar
Gypsum
Aggregate mixing
Emulsified asphalt
Cement adhesive		Shaped refractory material
Unshaped refractory material		Glass
Fertilizer
Waste treatment
Mine backfill

Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.
The mixing track as follows.

30kw Cement Concrete Mixer Machine Glass Fiber Powder Mixing PMC1250 CE Certification

Technical Specification
ITEM/(PMC)PMC
50		PMC
100		PMC
150		PMC
250		PMC
330		PMC
500		PMC
750		PMC
1000		PMC
1250		PMC
1500		PMC
2000		PMC
2500		PMC
3000		PMC 4000
Feeding Capacity (L)7515022537550075011251500187522503000375045006000
Output Capacity (L)501001502503305007501000125015002000250030004000
Feeding Weight (kg)120240360600800120018002400300036004800600072009600
Mixing Power (kw)35.57.5111518.5303745557590110132
Discharging Power (kw)Pneumatic Discharge(Hydraulic Discharge Optional)3334444
Mixing Star*Blade1*21*21*21*21*21*21*32*22*22*23*23*33*33*3
Side Scraper11111111111111
Discharge Scraper--111111112222
Weight (kg)7501000130015002000240039005500600065009200110001200017500
Lifting Power (kw)---3447.511111518.52230-
Dimension (L*W*H) mm950*
790*
1200		1664*
1453*
1487		1670*
1460*
1620		1860*
1650*
1780		1870*
1870*
1855		2230*
2080*
1880		2580*
2340*
2195		2891*
2602*
2237		3058*
2756*
2395		3223*
2902*
2470		3625*
3230*
2695		3893*
3550*
2875		3893*
3550*
3085		4594*
4150*
3634
