Short Mixing Time Planetary Concrete Mixer , Refractory Paddle Mixer
Short Mixing Time Planetary Concrete Mixer , Refractory Paddle Mixer
Specifications
Brand Name :
PERMIX
Model Number :
PMC1500
Certification :
CE
Place of Origin :
JIAOZHOU CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5-10 units per month
Delivery Time :
15-20 days
Packaging Details :
Export Standard Package
Material :
Steel
Input capacity :
2250L
Input weight :
3600kgs
Mixing Power :
55kw
Blade QTY :
2*2
Color :
Orange
Description

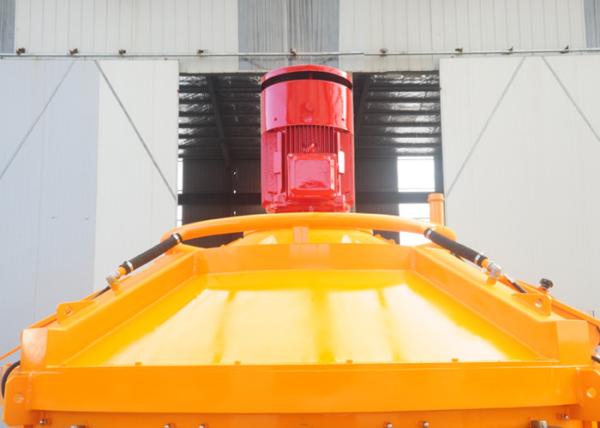

Planetary Concrete Mixer High Chrome Alloy PMC1500

Transmission System

The gearbox unit specially designed for a balanced distributor of power to the various mixing device and realize revolution and rotation, ensuring a high efficiency and low noise rotation.The structure is compact, and the deep mixing the internal part of the gearbox will not adhere to the material and increase the cleaning space of the blender.

Maintaining Door

The safety control device ensures that the mixer will not start during maintenance. Large size maintaining door for easy maintenance and cleaning.

Features of Planetary mixer


Planetary mixer is a new type of high efficiency, stirring without dead corner equipment; it has a unique form of stirring. Cylinder with special seal structure and have the pressure or vacuum stirring. Planet drive the two stirring shaft turns around the material barrel, at the same time, the stirring shaft is high-speed operation, so that the material is strong shearing action, achieve full dispersion and mixing effect.The cover is hydraulic lifting, convenient to operate and clean and the cylinder body can move freely. Mixer has good deaeration effect, the cylinder body can be designed to be heated or cooled according to customers' needs. In addition to the equipment within the knife scraping wall around the cylinder axis rotation, will be stuck on the wall material scraping and then put them into mixing shear, that make no residual material in the mixer and mixing effect is more ideal.

Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.

Technical Data
　 PMC50 PMC
100		 PMC
150		 PMC
250		 PMC
330		 PMC
500		 PMC
750		 PMC
1000		 PMC
1500		 PMC
2000		 PMC
2500		 PMC
3000		 PMC
4000		 PMC
4500
Output capacity(L) 50 100 150 250 330 500 750 1000 1500 2000 2500 3000 4000 4500
Input capacity(L) 75 　 225 375 500 750 1125 1500 2250 3000 3750 4500 6000 6750
Input capacity(kg) 120 　 360 600 800 1200 1800 2400 3600 4800 6000 7200 9600 10800
Diameter of Mixing Tank(mm) 　 　 　 1300 1540 1900 2192 2496 2796 3100 3400 3400 　 　
Mixing Power kw 3 7.5 11 15 18.5 22 30 37 55 75 90 110 160 200
Blade QTY 1/2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 3*2 3/6 3/9 3/9 3/9
Side Scraper QTY 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Bottom Scraper QTY 1 1 1 1 1 1 1 1 1 1 2 2 2 2
Weight(kg) 700 　 1000 1200 1700 2000 3500 6000 7000 8500 10500 11000 16000 18000
