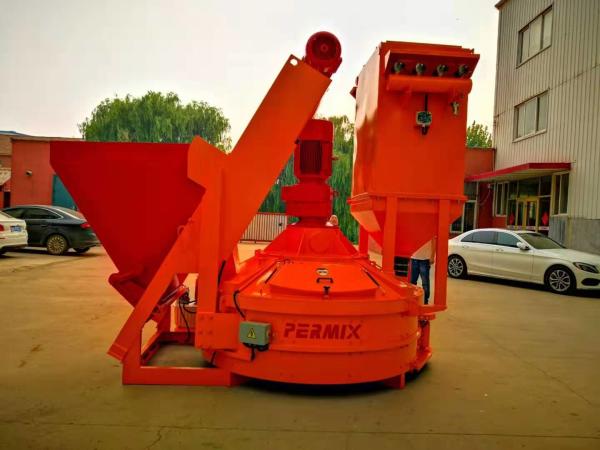

PMC2500 Refractory Planetary Mixer 90kw Mixing Power High Pressure Washing System
PMC2500 Refractory Planetary Mixer 90kw Mixing Power High Pressure Washing System
Specifications
Brand Name :
PERMIX
Model Number :
PMC2500
Certification :
CE
Place of Origin :
JIAOZHOU CHINA
MOQ :
1 unit
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
5-10 units per month
Delivery Time :
15-20 days
Packaging Details :
Export Standard Package
Product name :
Counter Current Planetary Mixer
Input capacity :
3750L
Output capacity :
2500L
Input weight :
6000kgs
Mixing Power :
90kw
Blade QTY :
3*3
Description

PMC2500 Refractory Planetary Mixer optional skip hopper and high pressure washing system​

Mixer advantages

Refractory Planetary Mixer has the simple concrete mixing plant combined with PLD series batching machines and the dual advantages of independent operation.

Refractory Planetary Mixer can also provide matching hosts for the mixing station.
Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants.

Refractory Planetary Mixer is suitable for all kinds of large, small and medium prefabricated component plants and highways and bridges. At the same time, they can also be restructured according to the special requirements of users to meet their needs.

Users can use dump trucks and mixer trucks for their own use. The product design structure is reasonable, the layout is novel, and it is easy to use and maintain.

Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.

PMC2500 Refractory Planetary Mixer 90kw Mixing Power High Pressure Washing System

Technical Specification
ITEM/(PMC)

PMC
50

PMC
100

PMC
150

PMC
250

PMC
330

PMC
500

PMC
750

PMC
1000

PMC
1250

PMC
1500

PMC
2000

PMC
2500

PMC
3000

 PMC 4000
Feeding Capacity (L) 75 150 225 375 500 750 1125 1500 1875 2250 3000 3750 4500 6000
Output Capacity (L) 50 100 150 250 330 500 750 1000 1250 1500 2000 2500 3000 4000
Feeding Weight (kg) 120 240 360 600 800 1200 1800 2400 3000 3600 4800 6000 7200 9600
Mixing Power (kw) 3 5.5 7.5 11 15 18.5 30 37 45 55 75 90 110 132
Discharging Power (kw) Pneumatic Discharge(Hydraulic Discharge Optional) 3 3 3 4 4 4 4
Mixing Star*Blade 1*2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 2*2 3*2 3*3 3*3 3*3
Side Scraper 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Discharge Scraper - - 1 1 1 1 1 1 1 1 2 2 2 2
Weight (kg) 750 1000 1300 1500 2000 2400 3900 5500 6000 6500 9200 11000 12000 17500
Lifting Power (kw) - - - 3 4 4 7.5 11 11 15 18.5 22 30 -
Dimension (L*W*H) mm

950*
790*
1200

1664*
1453*
1487

1670*
1460*
1620

1860*
1650*
1780

1870*
1870*
1855

2230*
2080*
1880

2580*
2340*
2195

2891*
2602*
2237

3058*
2756*
2395

3223*
2902*
2470

3625*
3230*
2695

3893*
3550*
2875

3893*
3550*
3085

4594*
4150*
3634
