JPQ1(2) Chip progressive distribution valve Pressurized grease separator
JPQ1(2) Chip progressive distribution valve Pressurized grease separator
JPQ1(2) Chip progressive distribution valve Pressurized grease separator
JPQ1(2) Chip progressive distribution valve Pressurized grease separator
JPQ1(2) Chip progressive distribution valve Pressurized grease separator
JPQ1(2) Chip progressive distribution valve Pressurized grease separator
Specifications
Brand Name :
Support customized services
Model Number :
JPQ1(2)
Place of Origin :
china
MOQ :
10pcs
Price :
Price negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100pcsday
Delivery Time :
5-8week day
Packaging Details :
Individual carton packing
Nominal displacement (ml/cy) :
16
Capacity per hole (ml/cy) :
0.11; 0.16; 0.23; 0.32
Starting pressure (Mpa) :
1.5
Number of combined pieces (PCS) :
3-10
Number of oil feed holes (PCS) :
6-20
Oil inlet pipe diameter (mm) :
6 or 8
Oil outlet pipe diameter (mm) :
6
Description

Our company is committed to one-stop parts service to ensure perfect fit and excellent performance. This makes it easier for you to find the right part for your pump truck, saving you time and effort.

Product description

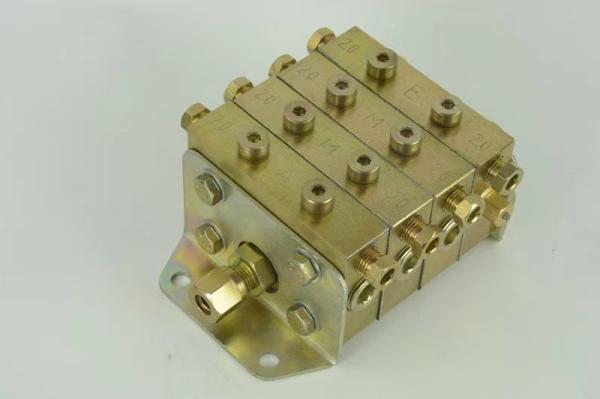

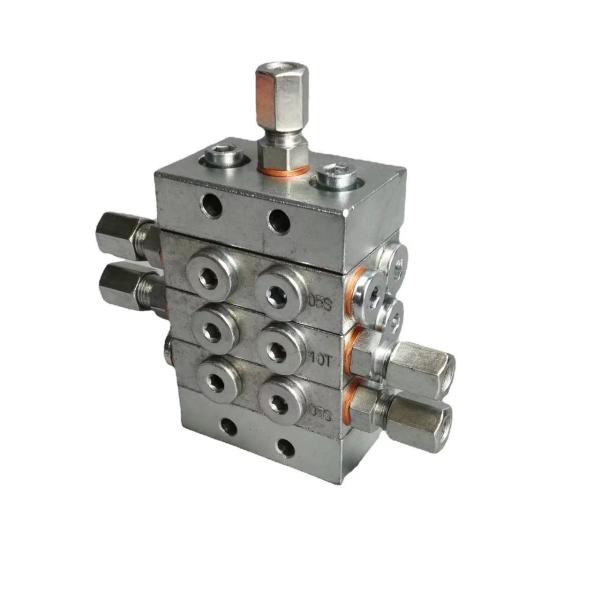

JPQ1(2) Chip progressive distribution valve

Tablet combination structure, according to the lubrication point of different oil needs to select different pieces, combined according to demand

It can be connected in series,and it can be divided into two and three levels of oil

Optional cycle indicator, remote control control lubrication system

Optional safety relief valve, overpressure indicator

Note: The installation plate of JPQ1-A has no oil outlet, the middle plate is the same as that of JPQ1, and the installation of optional parts and the outline size and model preparation are the same

technical specification

Model: JPQ1
Nominal displacement (ml/cy):16
Capacity per hole (ml/cy) : 0.11; 0.16; 0.23; 0.32
Starting pressure (Mpa) : ≤1.5
Number of combined pieces (PCS) : 3~10
Number of oil feed holes (PCS) : 6~20
Oil inlet pipe diameter (mm) : ¢6¢8
Oil outlet pipe diameter (mm) : ¢6

JPQ1(2) Chip progressive distribution valve Pressurized grease separator

JPQ1(2) Optional parts
Proximity switch structure
The distributor works one loop, and the loop indicator operates once
Can be used to monitor the lubrication system working status, (fault alarm or control lubrication system work and stop)
Signals can be provided to PLC

Эта компания специализируется на производстве высококачественных, средне-средных, разбавленных масличных приборов, гидравлических компонентов, жидких соединений, поддерживаемых для того, чтобы быть на графике, в больших объектах поддерживаемых логотипом, и приветствует большое количество зарубежных клиентов, которые пришли на отбор, повышение цен и качественное качество. Сотрудничество, друзья на всю жизнь.
