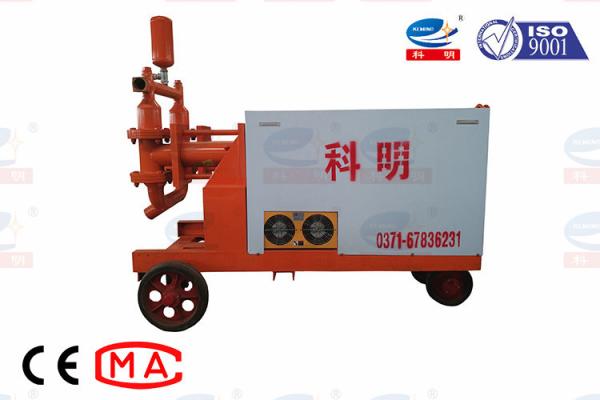

High Efficiency Hydraulic Cement Grout Pump 15KW Mortar Pump Machine
High Efficiency Hydraulic Cement Grout Pump 15KW Mortar Pump Machine
Specifications
Brand Name :
KEMING
Model Number :
KBY
Certification :
CE, MA
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
100 Sets/Per Month
Delivery Time :
5~8 Work Days
Packaging Details :
Export Wooden Packing
Theory :
hydraulic pump
Capacity :
5-7m3/h
Pressure :
0-4Mpa
Motor :
15KW
Description

High Efficiency Hydraulic Cement Grout Pump 15KW Mortar Pump Machine

Technical Parameters:

Model
KBYS Mortar Pump
Output
5-7m3/h
4-5m3/h
Pressure
0-4Mpa
0-6Mpa
Power
15KW
15KW
Outlet diameter
38mm
38mm
Inlet diameter
75mm
75mm
Cylinder diameter
110mm
80mm
Cylinder qty.
2
2
Max. particle size
<5mm
<5mm
Suction height
2m
2m
Dimensions
1900*900*1640mm
1900*900*1640mm
Weight
550kg
520kg

Mortar Pump Features:

1. KBYS is double cylinder hydraulic cement mortar pump.

2. High working pressure, high output and high efficiency.

3. Widely used to delivery mortar grout or other construction slurry.

Mortar Pump Application:

1. KBYS hydraulic mortar pump can be used for horizontal and vertical mortar delivering or large area coating in construction engineering.

2. Filling cement grouting of road surface collapse in highway pavement maintenance.

3. Slurry injection expansion in pre-stressed engineering.

4. Dam reinforcement in water engineering.

5. Slope protection grouting in civil engineering, mining tunnel construction etc.

6. Delivering coal ash slurry in thermal power plant.

7. Conveying slurry materials and waste in chemical and paper-making industry.

8. Slurry infusion for furnace maintenance in metallurgy, iron and steel and other industries.

High Efficiency Hydraulic Cement Grout Pump 15KW Mortar Pump Machine
