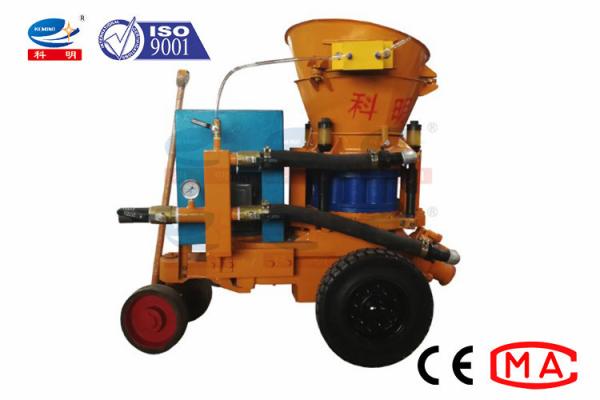

KPZ-3 Small Portable Shotcrete Machine Electric Driven Power Type
KPZ-3 Small Portable Shotcrete Machine Electric Driven Power Type
Specifications
Brand Name :
KEMING
Model Number :
KPZ-3
Certification :
CE,MA
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Per Month
Delivery Time :
10~20 Work Day
Packaging Details :
Export Wooden Case
Capacity :
3~3.5m3/h
Pressure :
0.6Mpa
Max aggregate :
20mm
Main power :
4kW
Horz. distance :
200m
Vert. distance :
40m
Description

KPZ-3 Small Portable Shotcrete Machine Electric Driven Power Type

Shotcrete Machine Parameters:

Product type
KPZ-3 Dry Shotcrete Machine
Capacity
3m3/h
Conveying dist. max.
≤ 200m
Suitable mixture ratio
cement/sand and gravel=1:3~5
Suitable water and cement ratio
≤0.4~0.45
Aggregate size max.
φ10mm
Conveying pipe ID.
φ50mm
Operating pressure
0.2~0.4Mpa
Air consumption
5~6 m3/min
Material feeding height
1.1m
Power type
Electric Drive
Motor power
4 KW
Dimensions(Length×width×height)
1400×780×1020mm
Total weight
350kg

Shotcrete Machine Features:

1. KPZ Series Dry Shotcrete Machine include Electric Shotcrete Machine (KPZ-3, KPZ-4, KPZ-5, KPZ-7, KPZ-9, KCPZ), Pneumatic Shotcrete Machine (KPZ-3A, KPZ-4A, KPZ-5A, KPZ-7A, KPZ-9A), Diesel Engine Shotcrete Machine (KPZ-3D, KPZ-4D, KPZ-5D, KPZ-7D, KPZ-9D), and Mining Shotcrete Machine (PC5I, PS6I-J).

2. KPZ-3 Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, electric control box etc.

3. KPZ-3 Dry Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.

Shotcrete Machine Application:

1. KPZ-3 Dry Shotcrete Machine can be used for dry or half wet concrete spray construction.

2. KPZ-3 Dry Shotcrete Machine are widely used in the tunnel, culvert, subway, slope reinforcement, hydroelectric works, underground works and high-methane laneway of coal mine etc.
