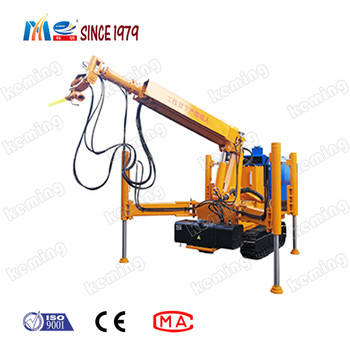

Tunnel Mining Wet Dry Robotic Shotcrete Machine With Remote Control
Tunnel Mining Wet Dry Robotic Shotcrete Machine With Remote Control
Specifications
Brand Name :
KEMING
Model Number :
KPC-8A
Certification :
CE,MA
Place of Origin :
CHINA
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Per Month
Delivery Time :
10~20 Work Day
Packaging Details :
Export Wooden Case
Product name :
KPC6-8A shotcrete robot
Type :
Wet Shotcrete Dry Shotcrete
Model :
KPC-6A, KPC-8A
Usage :
tunnel, mining and slope protection
Key words :
Robotic shotcrete machine
Description

Hot-selling robotic shotcrete machine with remote control to replace manual labor

Robotic shotcrete machine Introduction:

1. Robotic shotcrete machine is suitable for dry, wet or wet and dry mixing.

2. It has independant hydraulic drive, 4 hydraulic legs, which greatly improving the stability of the equipment during the spray process.

3. It is the perfect concrete spraying system of tunnel, mining and slope protection.

Robotic shotcrete machine Application:

1. Shotcrete robot can be used for slope stability, excavation, shotcrete support of small vertical shaft in tunnel, coal mine or power station construction.

2. It is widely applied in mining well, railway, hydropower station, urban construction and other engineering constructions.

3. It is an ideal equipment for any working space, even in narrow tunnel construction.

Robotic shotcrete machine Parameters:

Parameter

KPC-6A

KPC-8A

Max. operation length

7000

8400

Outrigger expansion width

2300

2500

Support shotcrete capacity m3/h

0-10

0-25

Boom

Max. spraying H

6.2m

8.2m
Max. spraying W 7m 11m

Hose id

51/57/64mm

Arm frame telescopic dis.

2.35m

2.7m

Boom expansion max. L

3.5m

6m

Chassis

Max. walk gradient

20%

25%

Walking speed

0.6km/h

0.5km/h

Ground dis.

150mm

390mm

Power

Hydraulic system output

7.5kw

11kw

Voltage

380-1140V
