4P Pin Distance Separate Slip Rings Flexible Customization Wind Turbine Slip Ring
4P Pin Distance Separate Slip Rings Flexible Customization Wind Turbine Slip Ring
4P Pin Distance Separate Slip Rings Flexible Customization Wind Turbine Slip Ring
4P Pin Distance Separate Slip Rings Flexible Customization Wind Turbine Slip Ring
Specifications
Brand Name :
Haurem
Model Number :
HRS42
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pieces/month
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Advatage :
Simple circuit connection, superior performance
Channel :
1~12
Contact Resistance :
≤10mΩ ( 50rpm )
Electrical Noise :
Max 30mΩ
Operating Humidity :
60%RH or higher
Rotating Speed :
600RPM
Series :
Separate slip ring
Temperature :
-40℃~+80℃
Voltage Rating :
400VAC/VDC
High light :
Seperate slip ring, signal slip ring
Description

4P Pin Distance Separate Slip Rings With Flexible Customization,wind turbine slip ring

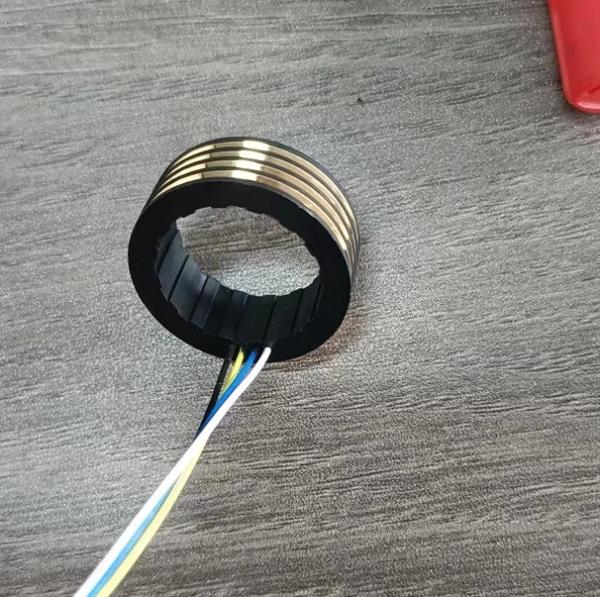

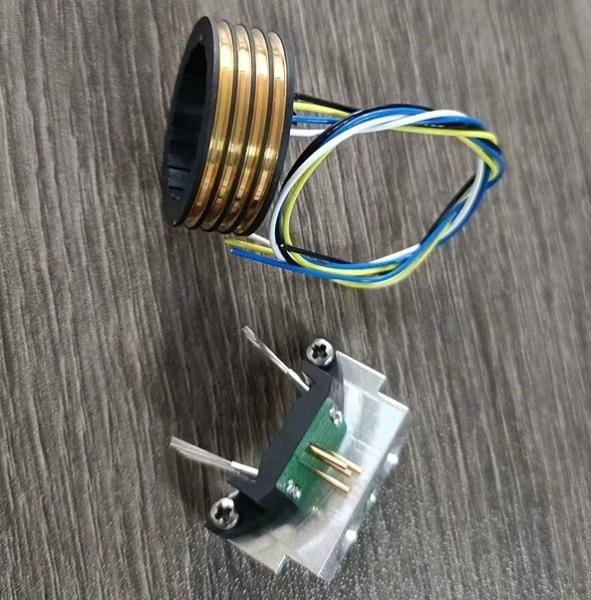

HRS42 series slip ring refers to a family of Separate Slip Rings manufactured by HAUREM company. It’s a derivation from an independent unit that can transmit current, data signal from stationary to rotating the part. The slip ring (rotor) and brush block (stator) are offered as separate components to be mated by the customer in their system. Such a rotary electrical interface is able to transmit a combination of weak signals with low resistance. Furthermore, the stator connecting way is optional ranging from wielding pin to wielding copper ear, welding wire and shape from circular to semi-arc, superimposed, to screw fixed ones. Therefore, it’s pretty easy to install despite the separate construction of such electrical swivels.

Electrical Spec. 　 Options
Rating voltage 380VAC Flange for set up
Rating current 5A /Ring,10A /Ring The wire exit direction,length is optional
Insulation resistance 1000MΩ@500VDC Can combine more circuits:1-126Ring
Dielectric strength 600VDC@50HZ Higher voltage and current capacity
Electrical noise 10mΩ@6VDC,50mA,5Rpm The wire exit direction,length is optional
Mechanical Spec Environment
Speed 0-500Rpm Working temperature -40℃~+80℃
Torque 60N.cm Mechanical vibration MIL-SID-810E
Protection class IP54--IP68 Humidity 10% to 90% RH
Contact material Precious Metal Materials Lead Free,RoHS compliant
Lead Wire 12 color Teflon CE Certified YES
Life 50 million revolutions The life of slip ring is up to revolutions, operation environment and temperature etc.

4P Pin Distance Separate Slip Rings Flexible Customization Wind Turbine Slip Ring

As a precious slip ring manufacturer for more than 10 years,Hunan Haurem Technology Co. Ltd. (HRM) owns a skilled management team and excellent design team already developed more than then thousands slip ring solutions, this keeps our technology advanced always around the world.

According to your special application requirements, our technical team will customize the slip ring with economically,high quality and reliability for you, please contact us at anytime.
