High Performance USB Slilp Rings For Industial Ethernet IP54--IP68
High Performance USB Slilp Rings For Industial Ethernet IP54--IP68
High Performance USB Slilp Rings For Industial Ethernet IP54--IP68
High Performance USB Slilp Rings For Industial Ethernet IP54--IP68
High Performance USB Slilp Rings For Industial Ethernet IP54--IP68
High Performance USB Slilp Rings For Industial Ethernet IP54--IP68
Specifications
Brand Name :
Haurem
Model Number :
HRSU series
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500pieces/month
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Advatage :
transmit USB1.0,USB2.0, delivery reliability
Channel :
1~48
Contact Resistance :
≤10mΩ ( 50rpm )
Electrical Noise :
Max 30mΩ
Operating Humidity :
60%RH or higher
Rotating Speed :
600RPM
Temperature :
-40℃~+80℃
Voltage Rating :
400VAC/VDC
High light :
USB Signal Slip Ring, No data loss,no signal distortion
Description

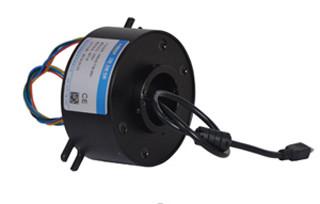

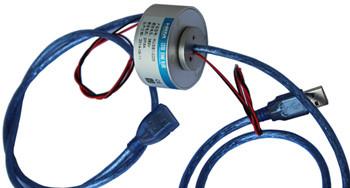

Haurem USB Signal Slip Ring is specially designed for USB siganl to transmit USB1.0,USB2.0, delivery reliability,. No data loss,no signal distortion, can combine electrical power and signal transmission on the same slip ring, 8 USB channel to transmit, using aluminium alloy as body metal improves this slip ring more precious, support USB connectors plug, low BER signal distortion, high signal noise ratio with best performance.

Electrical Spec. 　 Options
Rating voltage 380VAC USB1.0 USB2.0
Rating current 5A,10A,15A/Ring Connector plug
Insulation resistance 1000MΩ@500VDC BER,10E-11
Dielectric strength 600VDC@50HZ Insertion Loss 2db
Electrical noise 10mΩ@6VDC,50mA,5Rpm Can combine to transfer 8 groups signal
Mechanical Spec Environment
Speed 300Rpm Working temperature -40℃~+80℃
Torque 60N.cm Mechanical vibration MIL-SID-810E
Protection class IP54--IP68 Humidity 10% to 90% RH
Contact material Precious Metal Materials Lead Free,RoHS compliant
Lead Wire 12 color Teflon CE Certified YES
Life 50 million revolutions The life of slip ring is up to revolutions, operation environment and temperature etc.

Optional

◆ Lead wire length;
◆ Flange for set up;
◆ Various radial exits are available;
◆ Can combine more circuits:1-72 rings;
◆ High protection class: IP65 is optional;
◆ Can custom high temperature up to 280 degrees;
◆ Aviation connector is optional;
◆ Screen cable;
◆ Transimission frequency is up to 500MHz;
◆ Can combine high speed data in same slip ring under Ethernet,USB and Profibus ;
◆ Available for Thermocouple signal ;
◆ Gas pressure and/or fluid pressure hyrid ;
◆ Signal,coaxial cable and/or power wire mixed;
◆ High voltage, large current(1000A,10000V);
◆ Military rank.

High Performance USB Slilp Rings For Industial Ethernet IP54--IP68High Performance USB Slilp Rings For Industial Ethernet IP54--IP68

As a precious slip ring manufacturer for more than 10 years,Hunan Haurem Technology Co. Ltd. (HRM) owns a skilled management team and excellent design team already developed more than then thousands slip ring solutions, this keeps our technology advanced always around the world.
