800A High Current Slip Rings In 2- 3 Circuits With Multi Contact Points
800A High Current Slip Rings In 2- 3 Circuits With Multi Contact Points
800A High Current Slip Rings In 2- 3 Circuits With Multi Contact Points
800A High Current Slip Rings In 2- 3 Circuits With Multi Contact Points
Specifications
Brand Name :
Haurem
Model Number :
HRI152
Certification :
CE RoHS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000pieces/month
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Advatage :
high current low cost high stability and reliability
Channel :
1~96
Contact Resistance :
≤10mΩ ( 50rpm )
Electrical Noise :
Max 30mΩ
Feature :
precious metals and multi contact points in each circuit
Operating Humidity :
60%RH or higher
Rotating Speed :
300RPM
Series :
Conductive Slip Ring
Temperature :
-20℃~+80℃
Voltage Rating :
1000VAC/VDC
Description

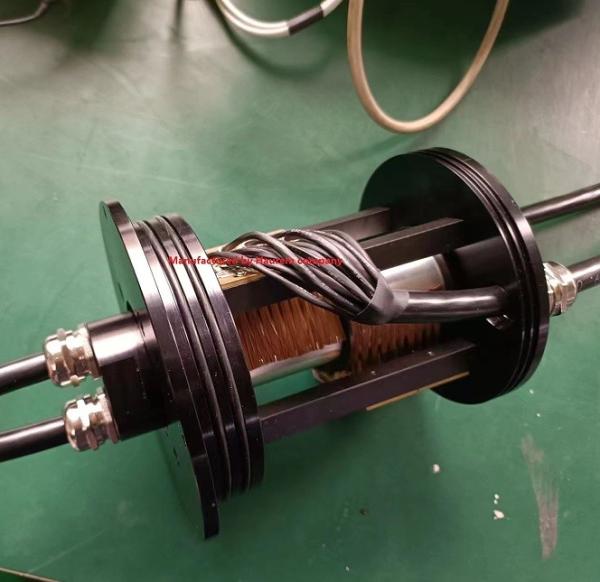

Electrical Slip Ring Transmitting 800A Large Current in 2- 3 Circuits

Haurem company's HRI High current slip ring is specially designed for the high power totary equipments, rated current for each ring can be achieved to 1000A. Our advantages for high current slip ring are low cost, high stability and reliability, can transmit signal and power together, low dynamic resistance fluctuation.

Electrical Spec.
Circuit 2~96 Housing material Stainless
Rating voltage 500 VDC/VAC Speed 150RPM
Rating current 800A/ring Torque 60N.cm
Lifetime >80 millions Rotation Contact material Precious Materal
Electrical noise <530mΩ Contact resistance <10 mΩ
Dielectric strength 1000VDC@50Hz Lead Wire UL Teflon wire
Insulation resistance 1000MΩ@600VDC Lead length 300mm
Working temperature -40°C to 80°C Seal class IP51~IP68
Mechanical vibration MIL-SID-810E Humidity 10% to 60% RH
Environmental certification Lead Free,RoHS compliant CE Certified Yes

800A High Current Slip Rings In 2- 3 Circuits With Multi Contact Points

We Haurem company have obtained certificates of CE, RoHs, MSDS and ISO9001,with a skilled management team, advanced technology, first-class production & inspection equipments as well as a strict quality control system,we will make best efforts to explore more new products to satisfy global customers with the best quality,price and service.

According to your special application requirements, our technical team will customize the slip ring with economically,high quality and reliability for you, please contact us at anytime.
