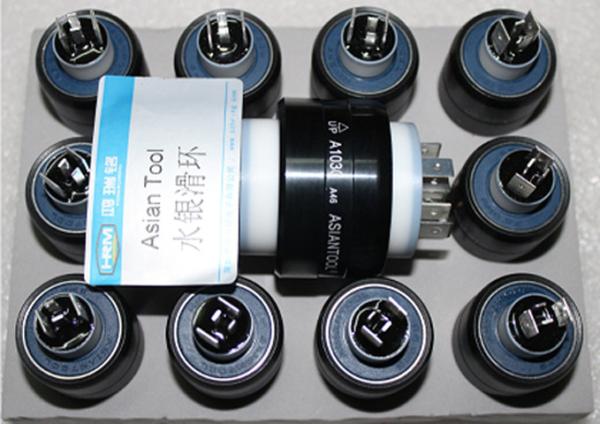

4 Circuits Mercury Slip Ring With Two Rings 30A And Two Rings 4A
4 Circuits Mercury Slip Ring With Two Rings 30A And Two Rings 4A
4 Circuits Mercury Slip Ring With Two Rings 30A And Two Rings 4A
4 Circuits Mercury Slip Ring With Two Rings 30A And Two Rings 4A
Specifications
Brand Name :
Asiantool
Model Number :
A4H
Certification :
CE RoHS
Place of Origin :
Taiwan, China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
3000pieces/month
Delivery Time :
2 weeks ARO
Packaging Details :
Standard/On Request
Advatage :
small size, no noise
Channel :
4
Contact Resistance :
≤10mΩ ( 50rpm )
Electrical Noise :
Max 30mΩ
Feature :
low contact wear
Rotating Speed :
200RPM
Series :
Mercury slip ring
Temperature :
-10℃~+60℃
Description

4 circuits mercury slip ring with two rings 30A and two rings 4A, used by Industrial machinery-machining centers4 Circuits Mercury Slip Ring With Two Rings 30A And Two Rings 4A

型号
Model		 极数
Conductor Poles		 电流 Current Amp. 耐压 Voltage AC/DC V 频率 Max. Freq. MHZ 最大转速 Max. RPM 使用温度 Operating Temp. ℃ 转矩(gm-cm)
Rotating Torque		 绝缘阻抗
Insulation Resistance
A1M 1 1极10A 　 200 3600 5~60 35 　
A1MT 1 1极10A 　 200 3600 5~60 35 　
A1M2 1 1极20A 　 200 2000 5~60 35 　
A2S 2 2极4A 500 200 2000 5~60 75 >25MΩ
A3S 3 3极4A 500 200 1800 5~60 100 >25MΩ
A2H 2 2极30A 500 200 1800 -10~60 200 >25MΩ
A3M 3 1极30A,2极4A 500 200 1800 -10~60 200 >25MΩ
A3H 3 3极30A 500 200 1200 -10~60 400 >25MΩ
A4H 4 2极30A,2极4A 500 200 1200 -10~60 400 >25MΩ
A6H 6 4极30A,2极4A 500 100 300 -10~60 700 >25MΩ
A8H 8 6极30A,2极4A 500 100 200 -10~60 1000 >25MΩ
A1HH 1 1极150A 　 200 1200 -10~60 250 　
A1H25S 1 1极250A 　 200 1200 -10~60 400 　
A1H25PS 1 1极250A 　 200 1200 -10~60 400 　

4 Circuits Mercury Slip Ring With Two Rings 30A And Two Rings 4A

We Haurem company have obtained certificates of CE, RoHs, MSDS and ISO9001,with a skilled management team, advanced technology, first-class production & inspection equipments as well as a strict quality control system,we will make best efforts to explore more new products to satisfy global customers with the best quality,price and service.

According to your special application requirements, our technical team will customize the slip ring with economically,high quality and reliability for you, please contact us at anytime.
