Stringing Wire Powered Cable Winch Puller Cylindrical Steel Rope Winch Puller
Stringing Wire Powered Cable Winch Puller Cylindrical Steel Rope Winch Puller
Stringing Wire Powered Cable Winch Puller Cylindrical Steel Rope Winch Puller
Stringing Wire Powered Cable Winch Puller Cylindrical Steel Rope Winch Puller
Specifications
Brand Name :
Suntech
Model Number :
JJM5Q
Certification :
ISO,CE
Place of Origin :
Ningbo,China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
7-9 workdays after payment
Packaging Details :
Exported cartons or cases
Item :
Honda Cable Winch
Rated Load :
50kn
Type :
Fast Speed
Usage :
Transmission Line
Weight :
180KG
Warranty :
One Year
Description

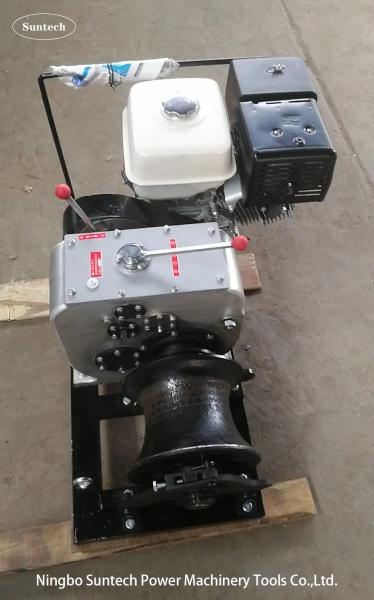

5 Ton Speedy Big Drum Wtih Petrol Engine Powered Winch For Cable Pulling

Winch Manufacturers For 5 Ton Petrol Engine Powered Fast Speed Winch is used for tower erection,pole setting,stringing wire in electrical power line construction.Winch can be modified as per requirement, such as changing curve capstan into straight even

cylindrical shape and coming with steel rope.

Technical Data for 5 Ton Petrol Engine Powered Fast Speed Winch:

Model JJM5B, it has the fast pulling force 9KN, 24 m/min speed, mid level has 15KN, 30KN, and pulling force is 14m/min, and 9m/min. In our Plant, we are making the eletrcical, gasoline, diesel engine driven, and HONADA, YAMAHA, Domestic Brand motor, related, 1,3,5T...., if you are interested with us, freely find us, willing to support you whatever.

Model Gear Pulling Force(KN) Pulling Speed(m/min) Dimensions(mm) Weight(kg)
JJM-5B Fast 9 24 1100*525*600 130
Mid 15 14
Mid 30 9
Slow 50 5

Speedy 5 Ton Big Drum With Petrol Engine Power Winch for Cable Pulling

According to customers’ response and field investigation, this machine has wide usage, such as rod up, a vertical rod, the pull rod, line release, line reel, the bridge plate traction, lifting and other purposes.The machine has the interlocking brake device, accurate positioning, excellent braking performance , flexible usage, safety and trust.

The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.

Stringing Wire Powered Cable Winch Puller Cylindrical Steel Rope Winch Puller
